Chevrolet
>>
1997
>>
Chevy Express G1500, Van Cargo
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification (G Series)
>>
Blower Motor Resistor/Relay
Blower Motor Resistor/Relay

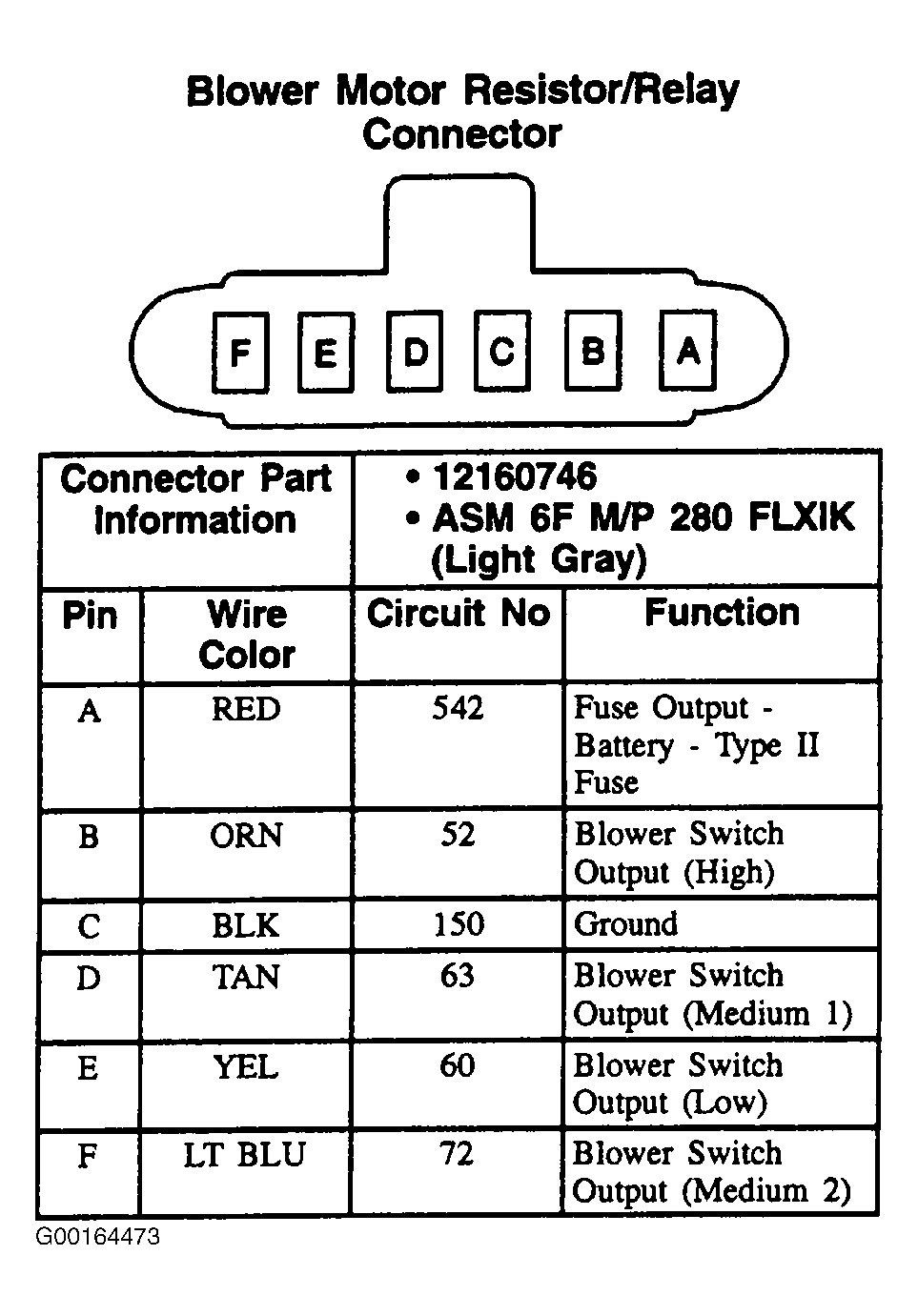

Fig 1: Blower Motor Resistor/Relay - 6-Pin Connector, Light Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
