Test A: Scan Tool Will Not Communicate With Class 1 Components

Refer to flowchart. See Fig 1 .

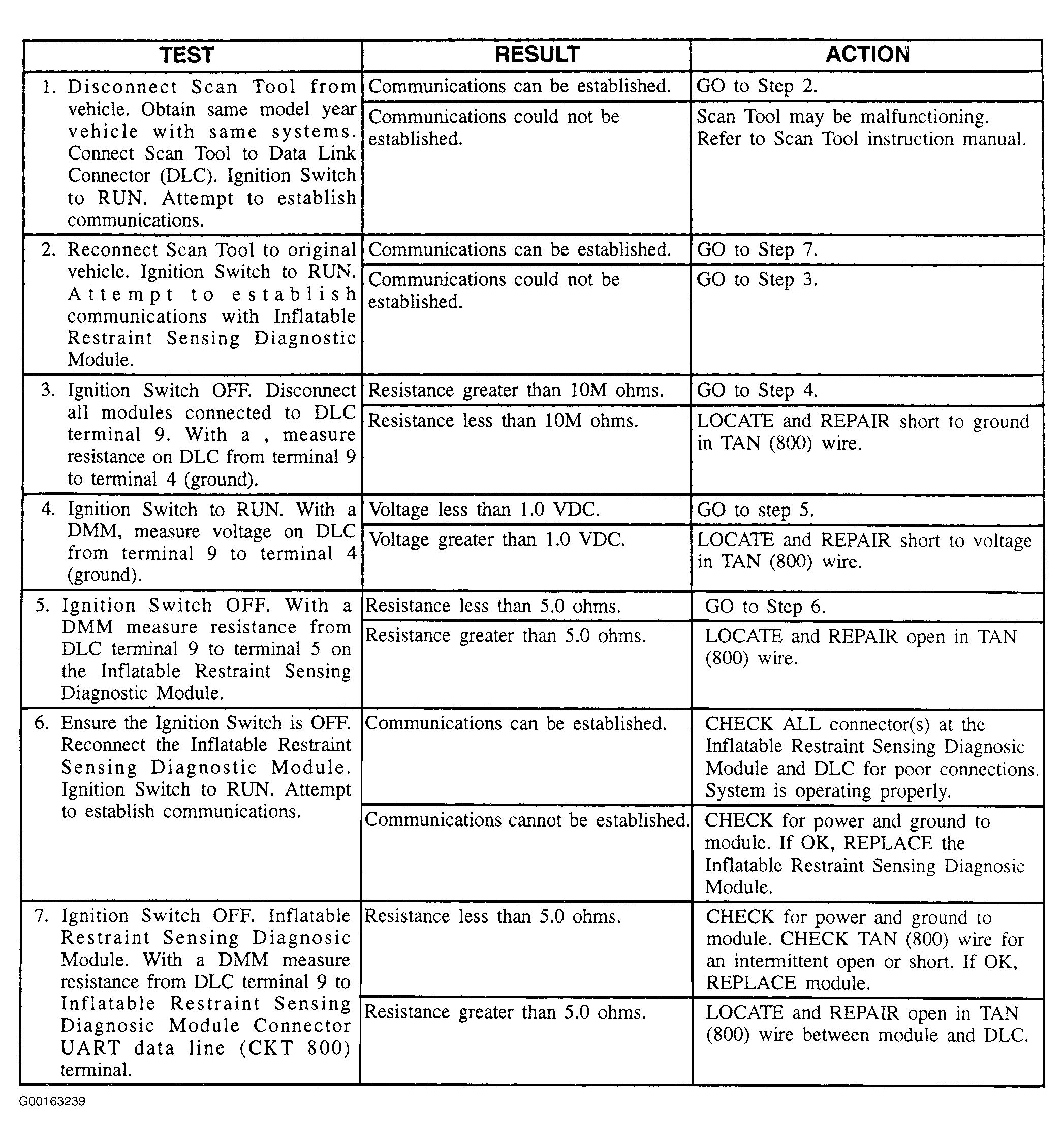

Fig 1: Scan Tool Will Not Communicate With Class 1 Components Diagnostic Flowchart

Courtesy of GENERAL MOTORS CORP.
