Neutral Safety Switch
NOTE:
Adjust switch so engine will start in Park or Neutral only.

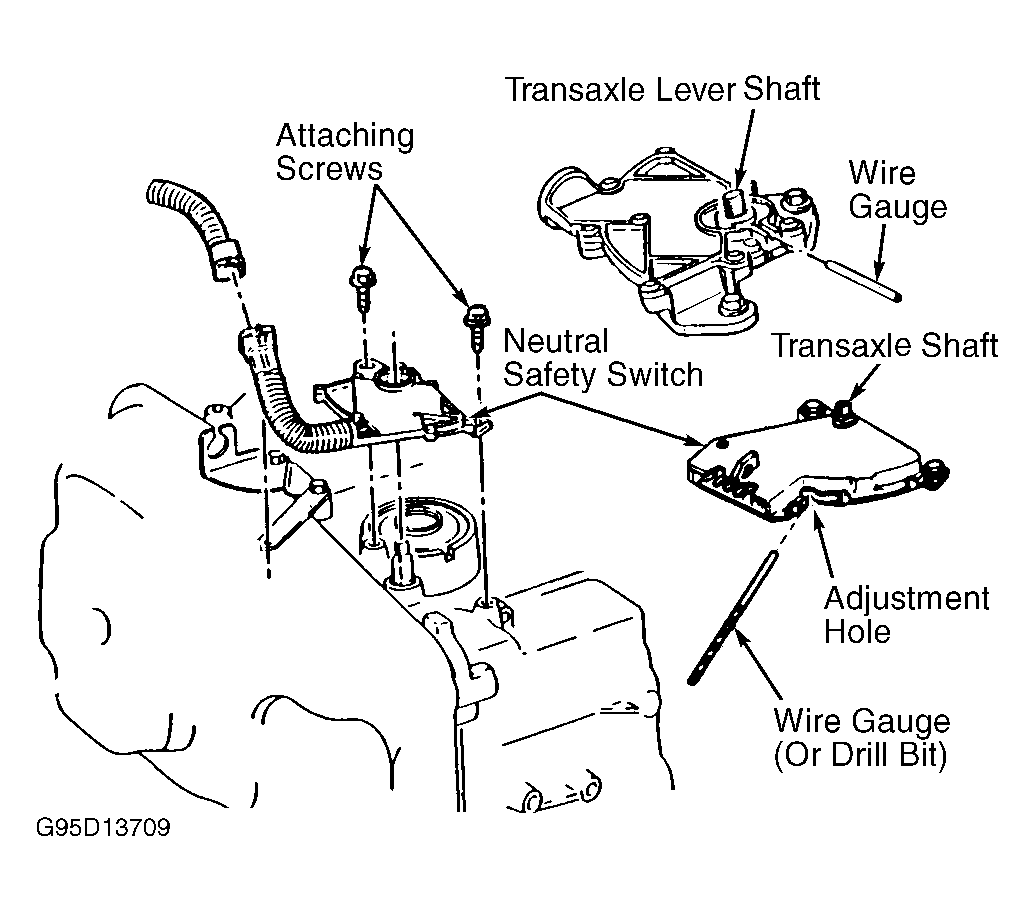

- Neutral safety switches come in one of 2 different types. See Fig 1. Ensure shift cable is adjusted. To adjust switch, place gear selector lever in Neutral.
- Place transaxle lever in Neutral detent. Loosen switch attaching screws. Rotate switch on shifter assembly to align adjustment hole with carrier tang hole.
- Insert a .094" (2.4 mm) wire gauge about 5/8" into switch holes. Tighten attaching screws. Remove wire gauge. New switches may have a plastic pin installed in hole. Plastic pin is designed to shear off during shift lever operation.
