Wiring Diagrams

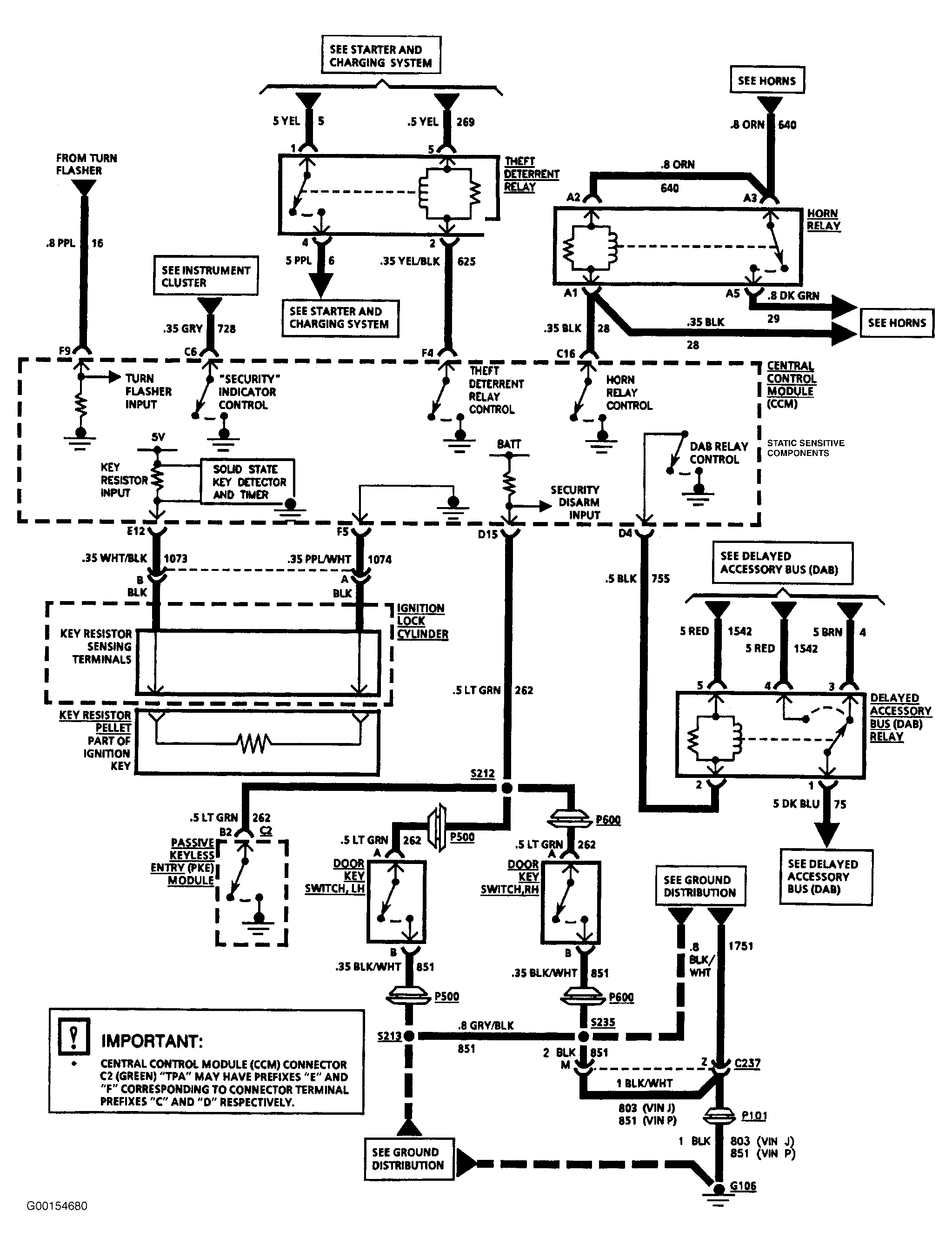

Fig 1: Central Control Module Wiring Diagram - 1995 Corvette (1 Of 6)

Courtesy of GENERAL MOTORS CORP.

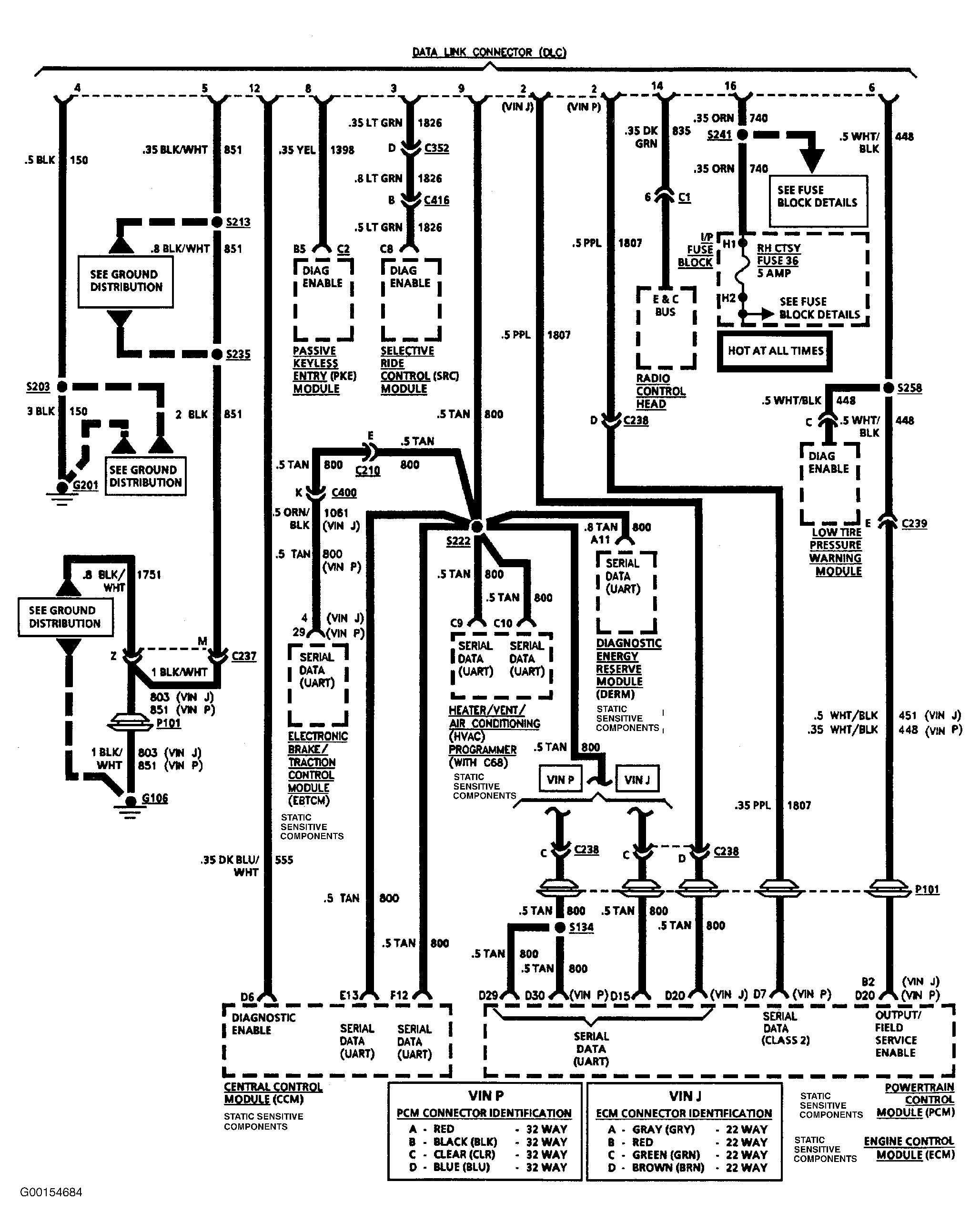

Fig 2: Central Control Module Wiring Diagram - 1995 Corvette (2 Of 6)

Courtesy of GENERAL MOTORS CORP.

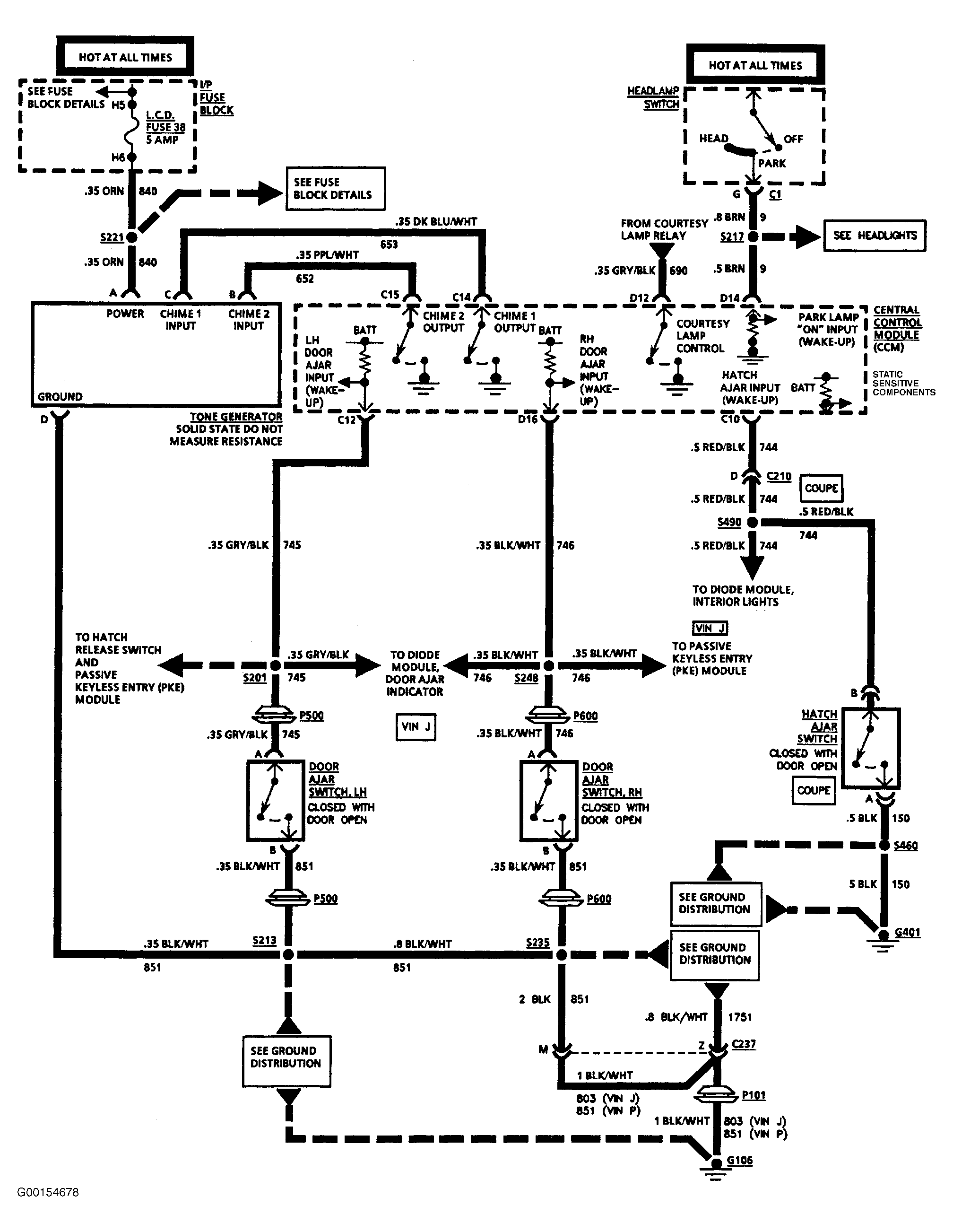

Fig 3: Central Control Module Wiring Diagram - 1995 Corvette (3 Of 6)

Courtesy of GENERAL MOTORS CORP.

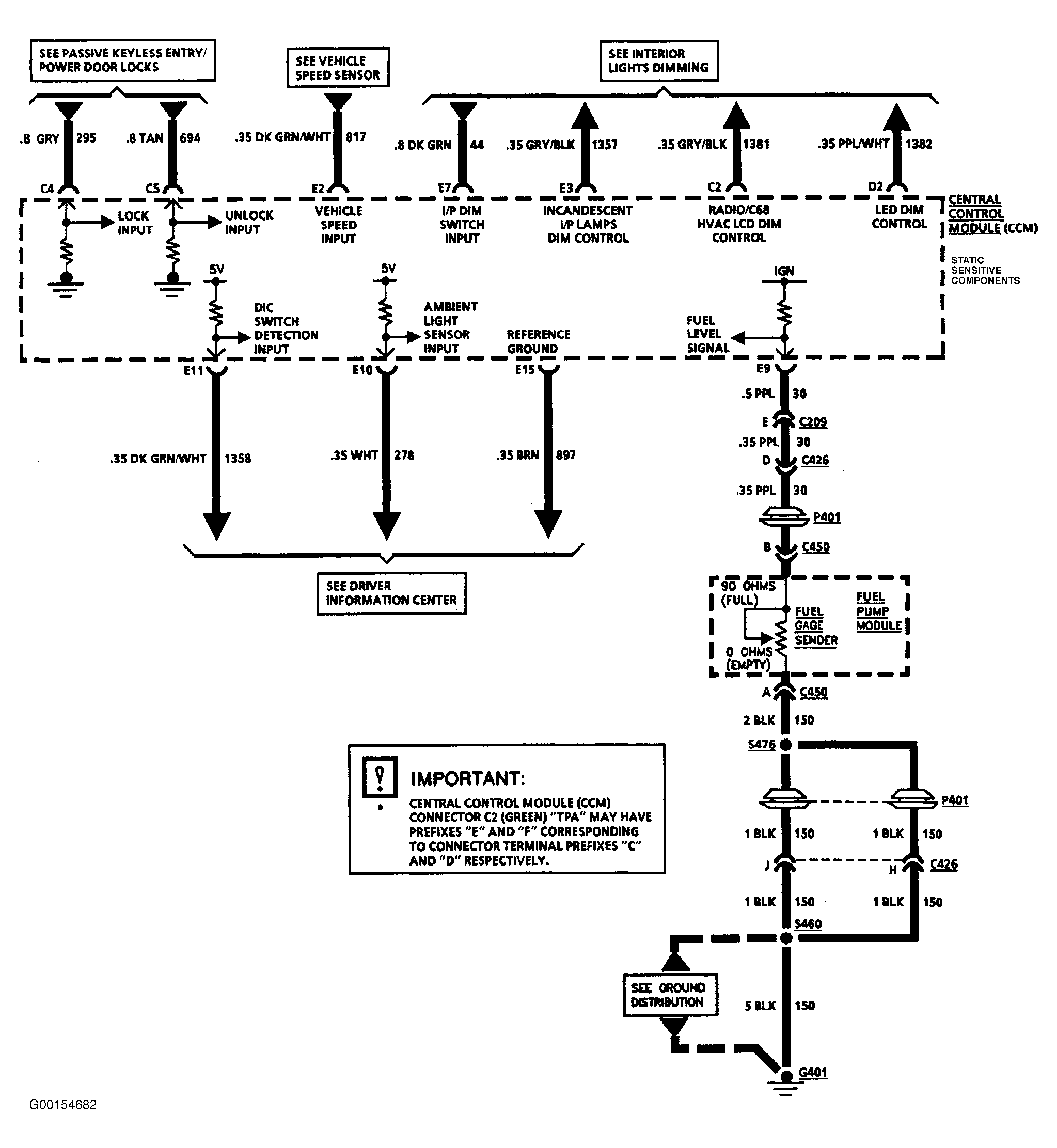

Fig 4: Central Control Module Wiring Diagram - 1995 Corvette (4 Of 6)

Courtesy of GENERAL MOTORS CORP.

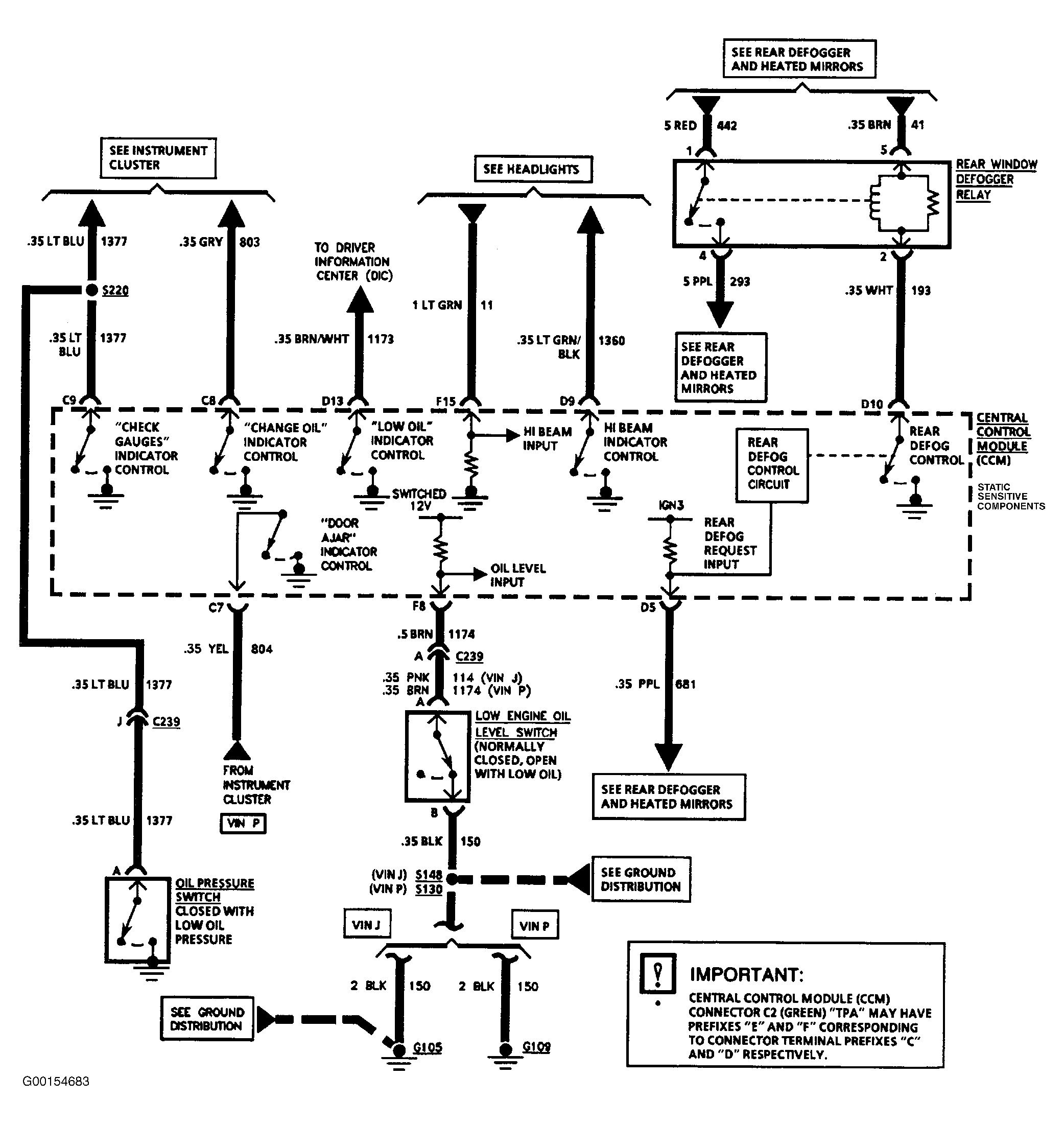

Fig 5: Central Control Module Wiring Diagram - 1995 Corvette (5 Of 6)

Courtesy of GENERAL MOTORS CORP.

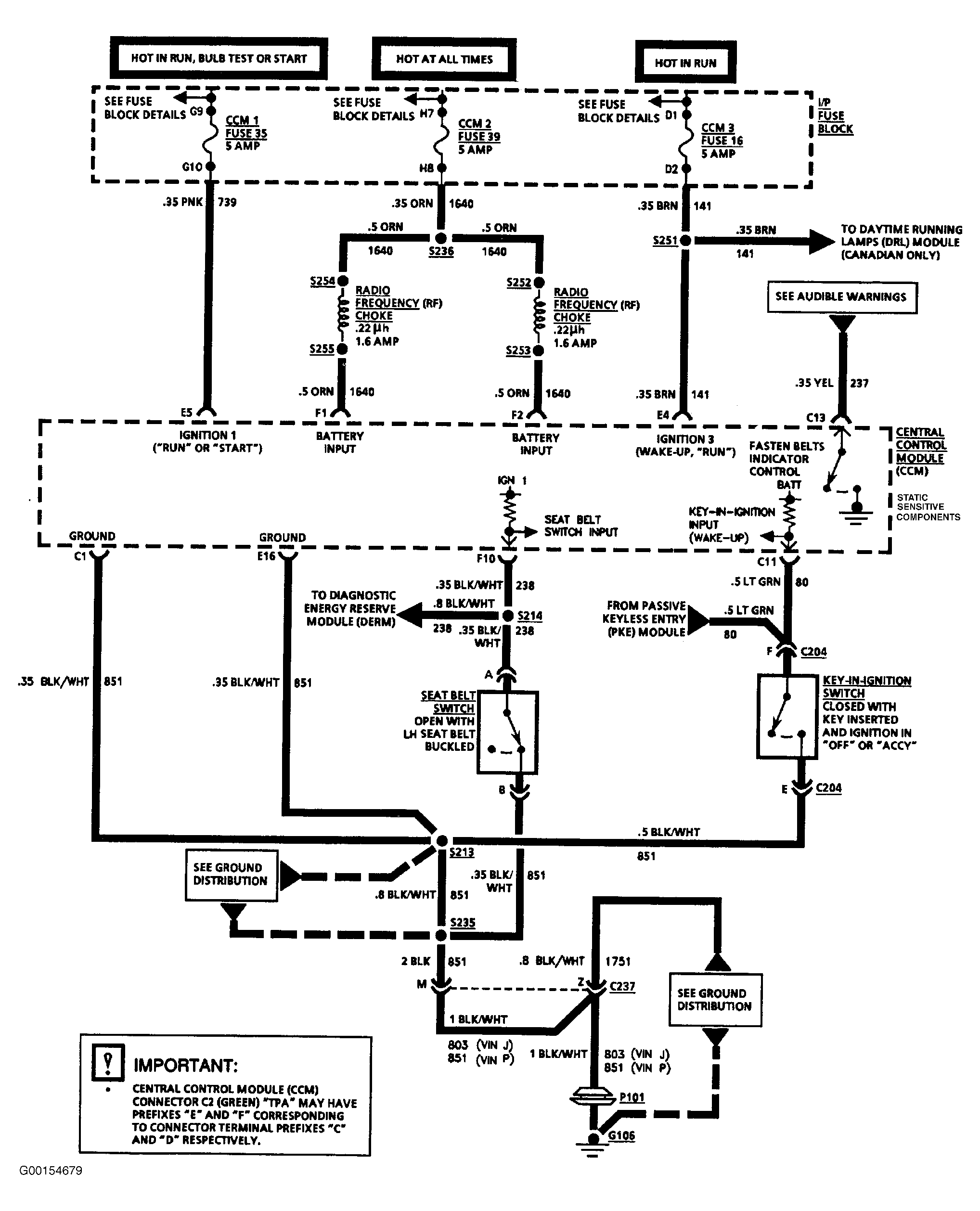

Fig 6: Central Control Module Wiring Diagram - 1995 Corvette (6 Of 6)

Courtesy of GENERAL MOTORS CORP.

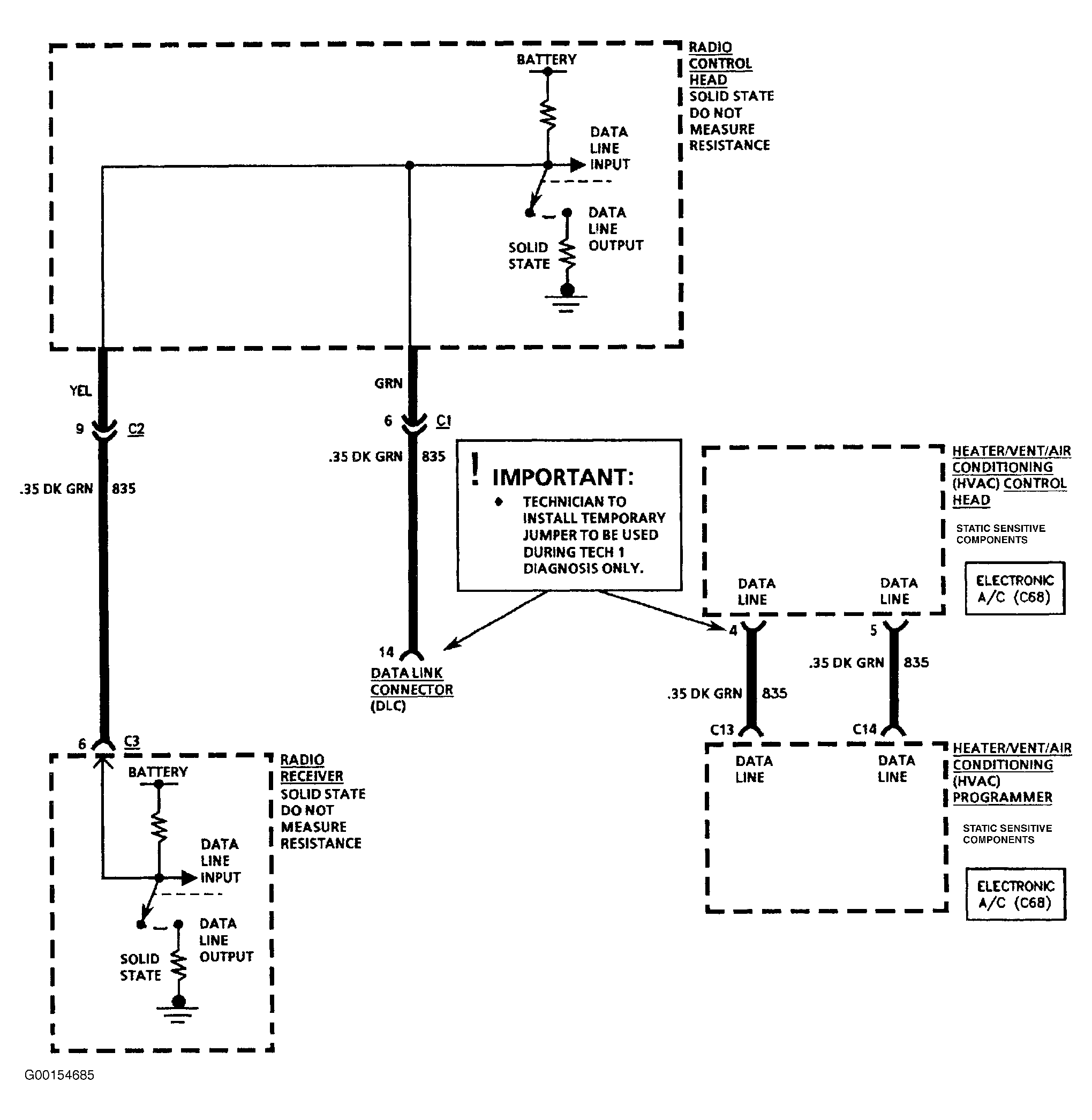

Fig 7: Data Link Communication System Wiring Diagram - 1995 Corvette

Courtesy of GENERAL MOTORS CORP.

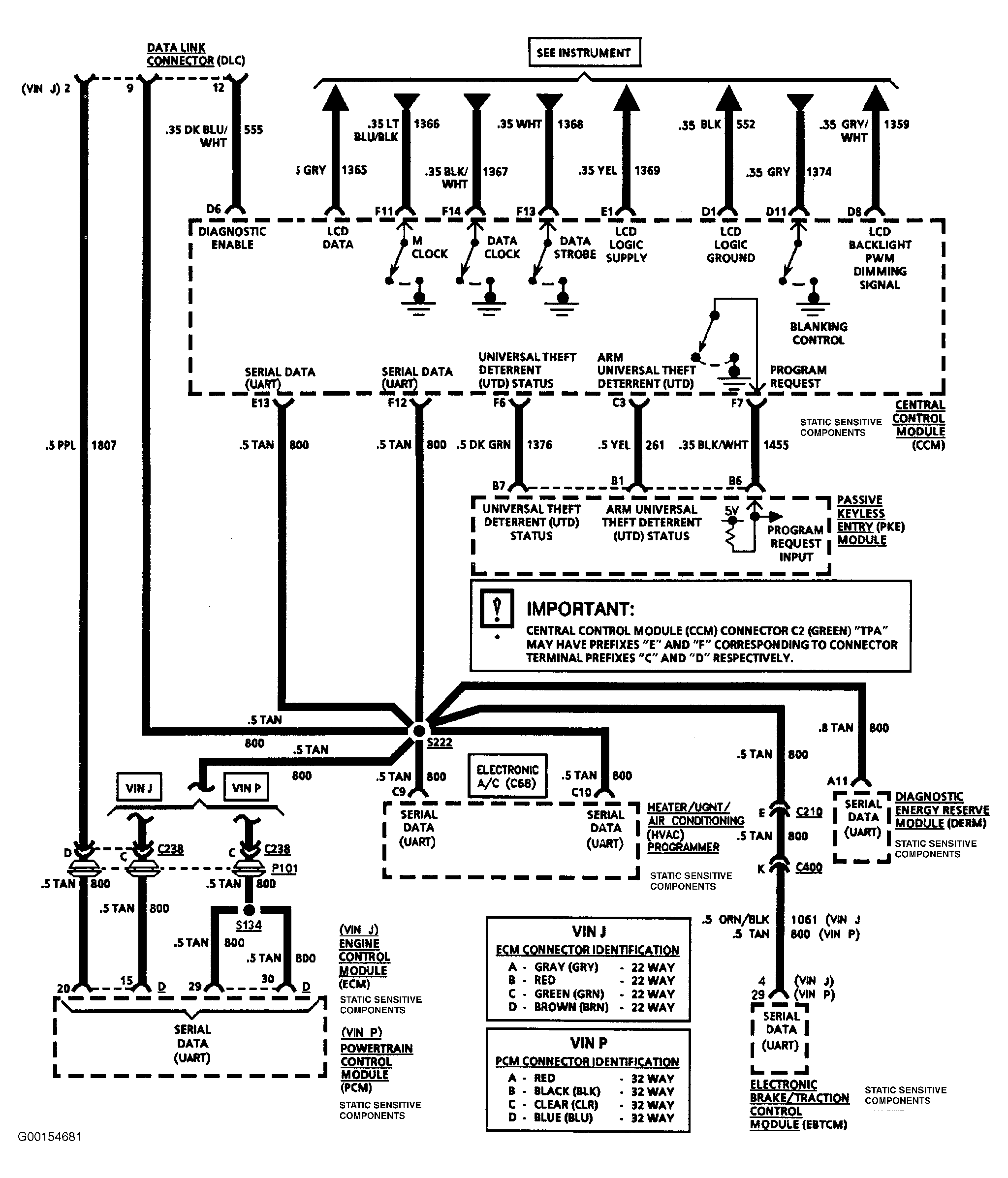

Fig 8: Entertainment & Comfort Data Line Wiring Diagram - 1995 Corvette

Courtesy of GENERAL MOTORS CORP.
