Section 13 (Instrument Panel - Analog): Testing: Notes
WARNING: This page is about a different car, the 1994 Oldsmobile Achieva. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

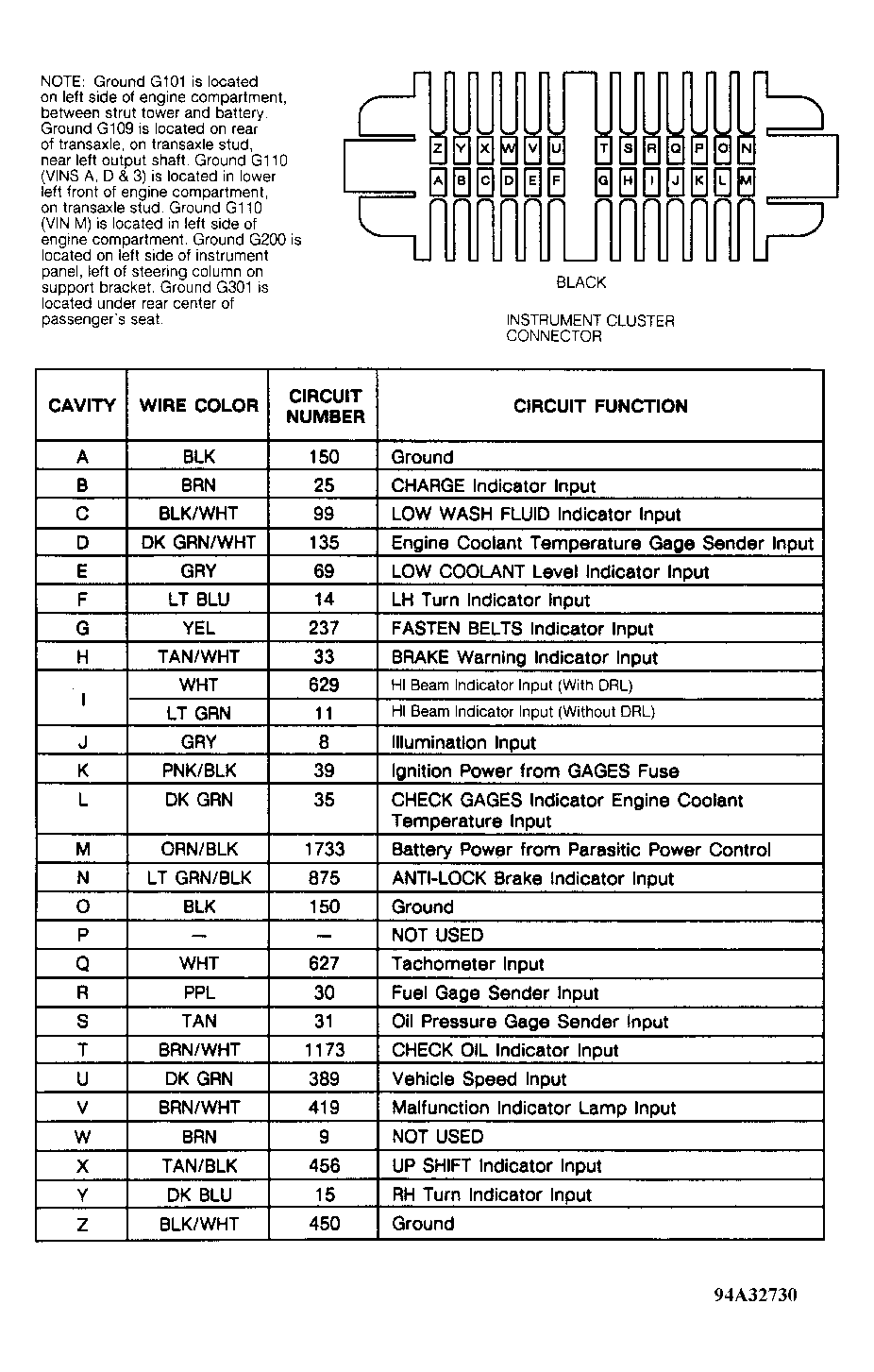

When testing suspect gauges/indicators, refer to appropriate illustrations to identify instrument cluster terminals. See Fig 1
.
