Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Convenience Center | Behind Left Side Of Instrument Panel. See Fig 1 . |
| Door Lock Delay Module | Behind Right Side Of Instrument Panel, At Top Of Cowl. See Fig 11 . |
| Door Lock Delay Relay | Behind Right Side Of Instrument Panel, At Top Of Cowl. See Fig 11 . |
| Door Lock Motor, Left Front | Inside Left Front Door. See Fig 12 . |
| Door Lock Motor, Right Front | Inside Right Front Door. See Fig 12 . |

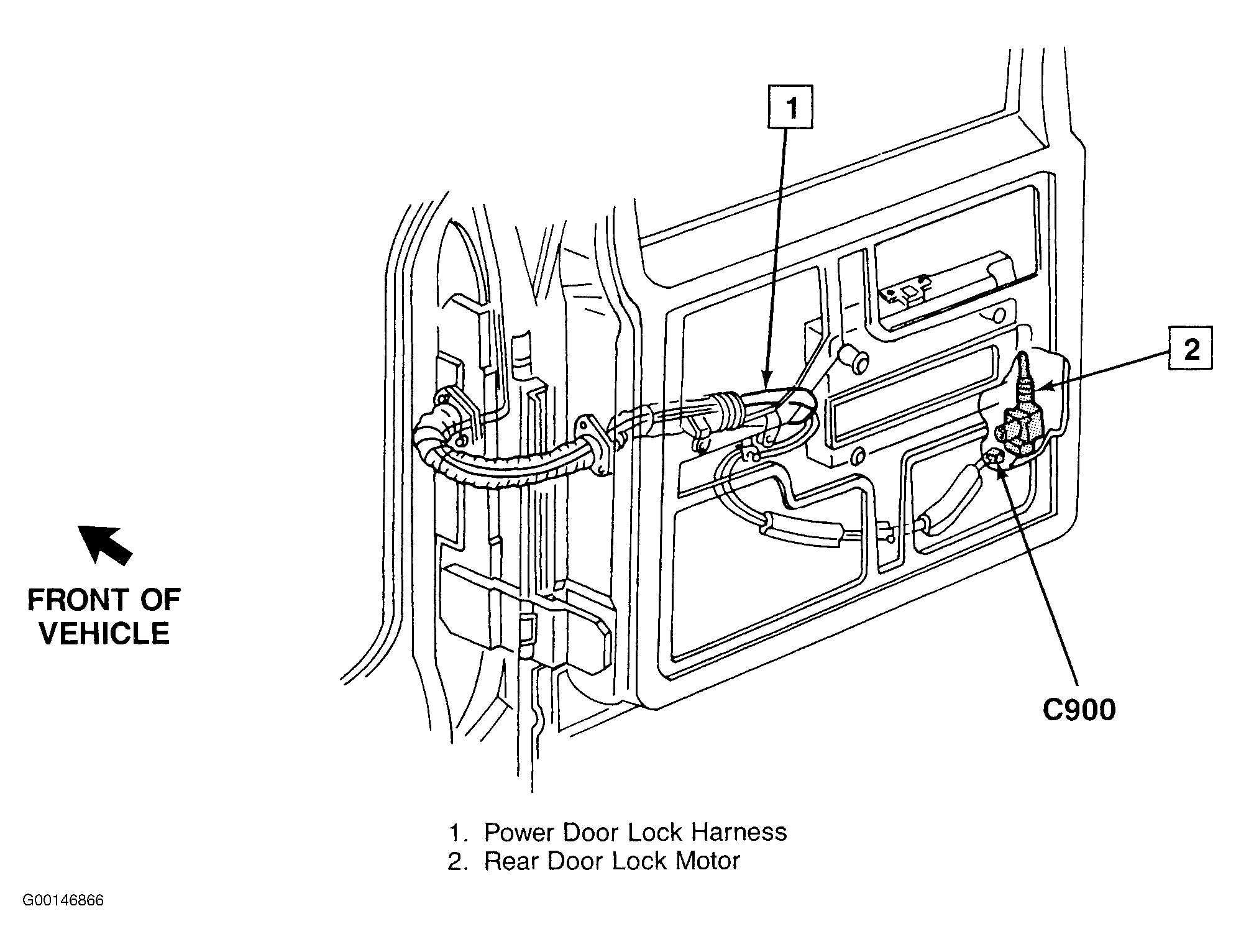

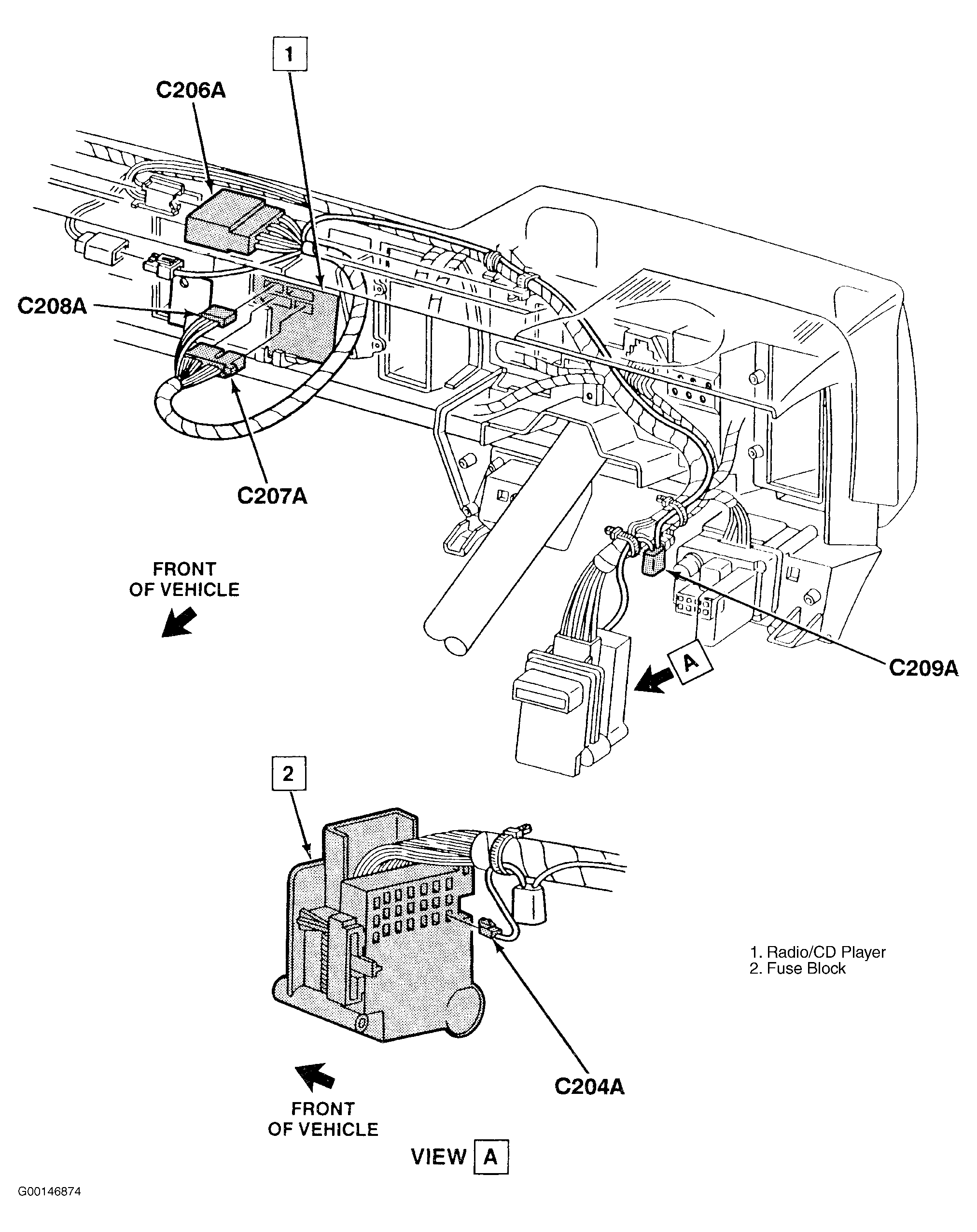

| Door Lock Motor, Right Rear | Inside Right Rear Door. See Fig 4 . |
| Door Lock Relay | Behind Right Side Of Instrument Panel, At Top Of Cowl. See Fig 11 . |
| Door Lock Switch, Left | On Left Door Trim Panel. See Fig 12 . |
| Door Lock Switch, Right | On Right Door Trim Panel. See Fig 12 . |
| Fuse Block | Behind Left SIde of Instrument Panel. See Fig 14 . |

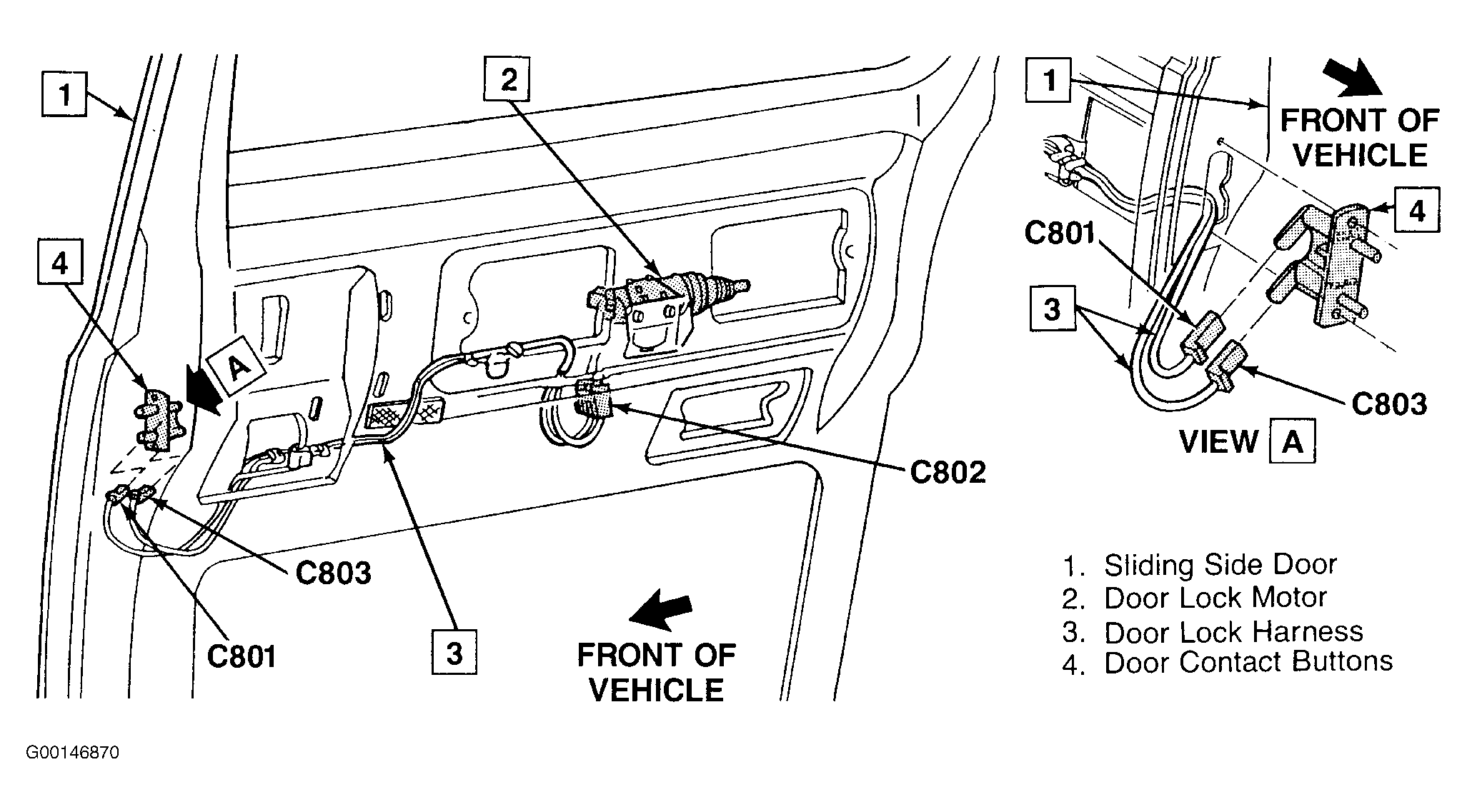

| Sliding Door Lock Motor | Inside Sliding Door. See Fig 8 . |
| Sliding Door Contact Buttons (Door Side) | On Sliding Door. See Fig 8 . |

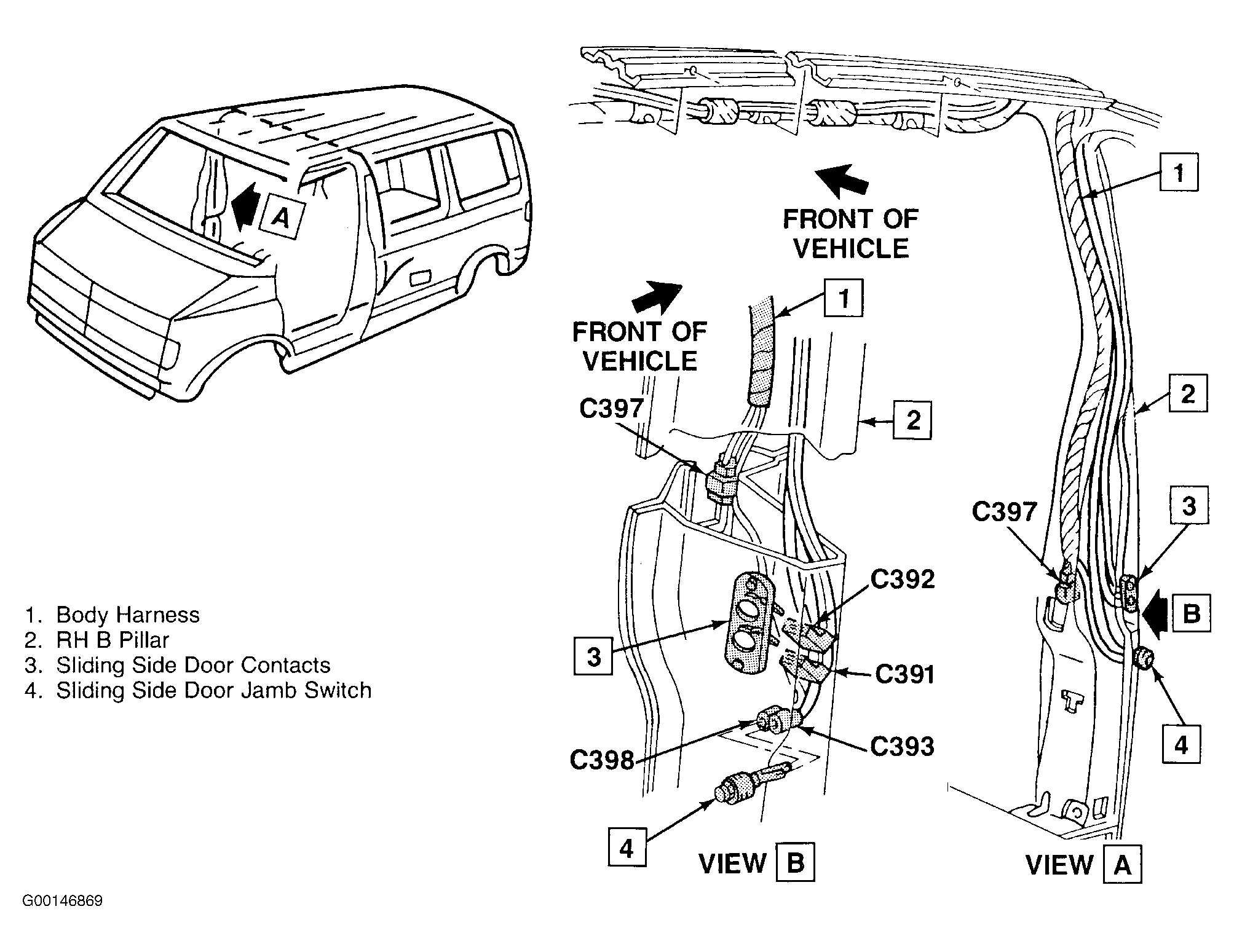

| Sliding Door Contact Buttons (Body Side) | On Right B Pillar. See Fig 7 . |
| Sliding Door Jamb Switch | On Right B Pillar. See Fig 7 . |
| C242 | Behind Right Side Of Instrument Panel, At Right Shroud. See Fig 11 . |
| C246 | Behind Left Side Of Instrument Panel, At Left Shroud. See Fig 11 . |

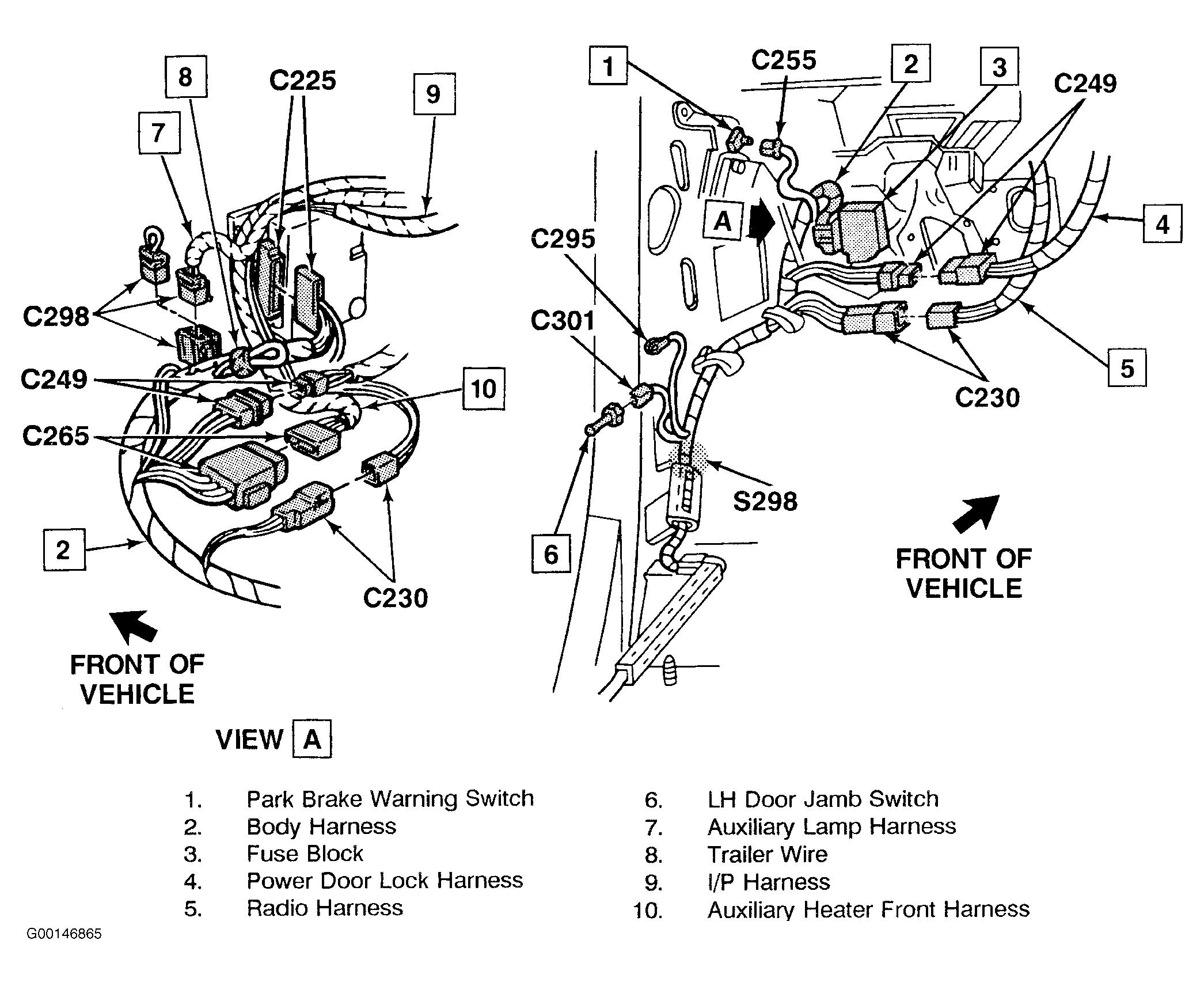

| C249 | Behind Left Side Of Instrument Panel, Near Fuse Block. See Fig 3 . |

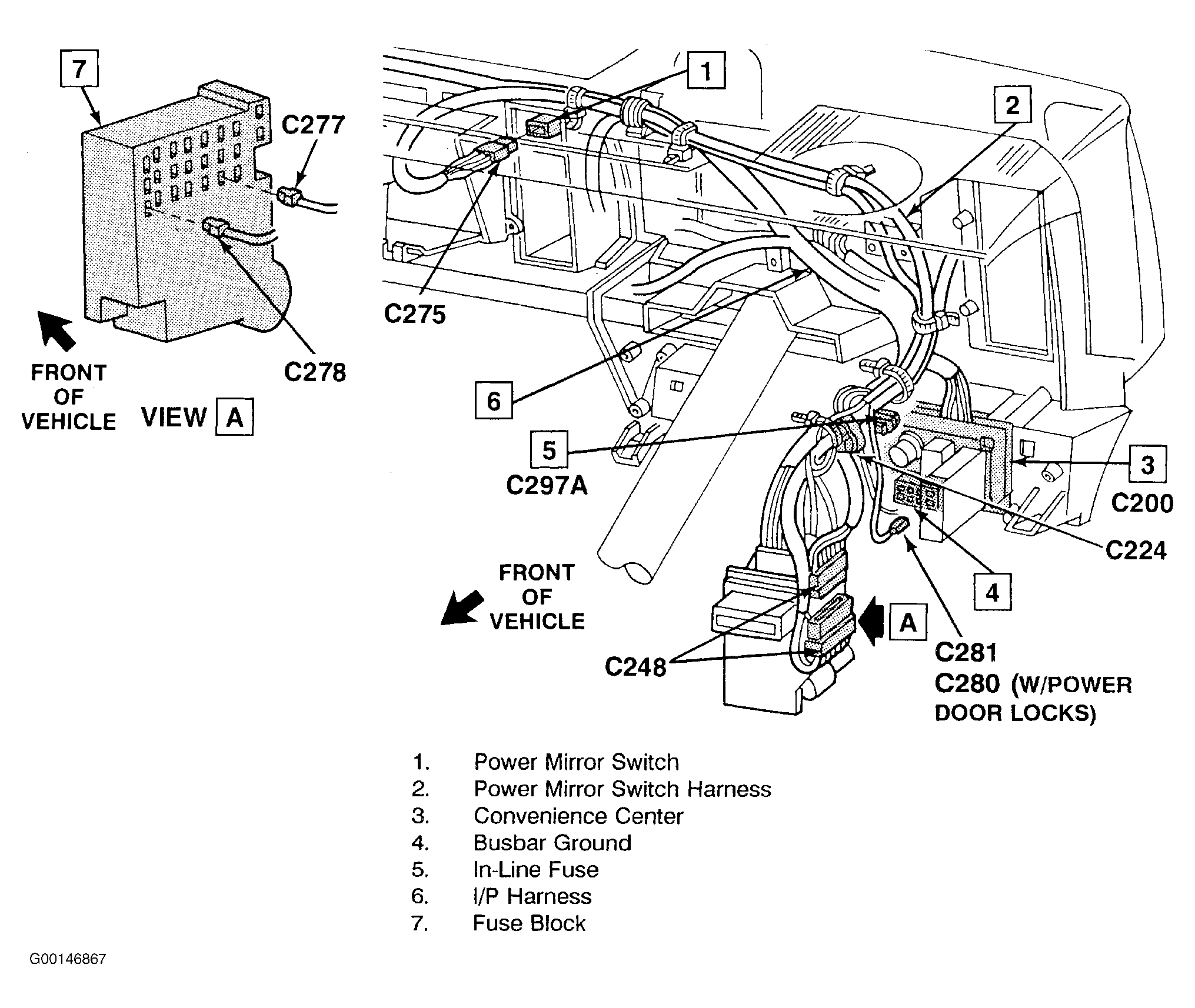

| C280 | At Busbar Ground. See Fig 5 . |

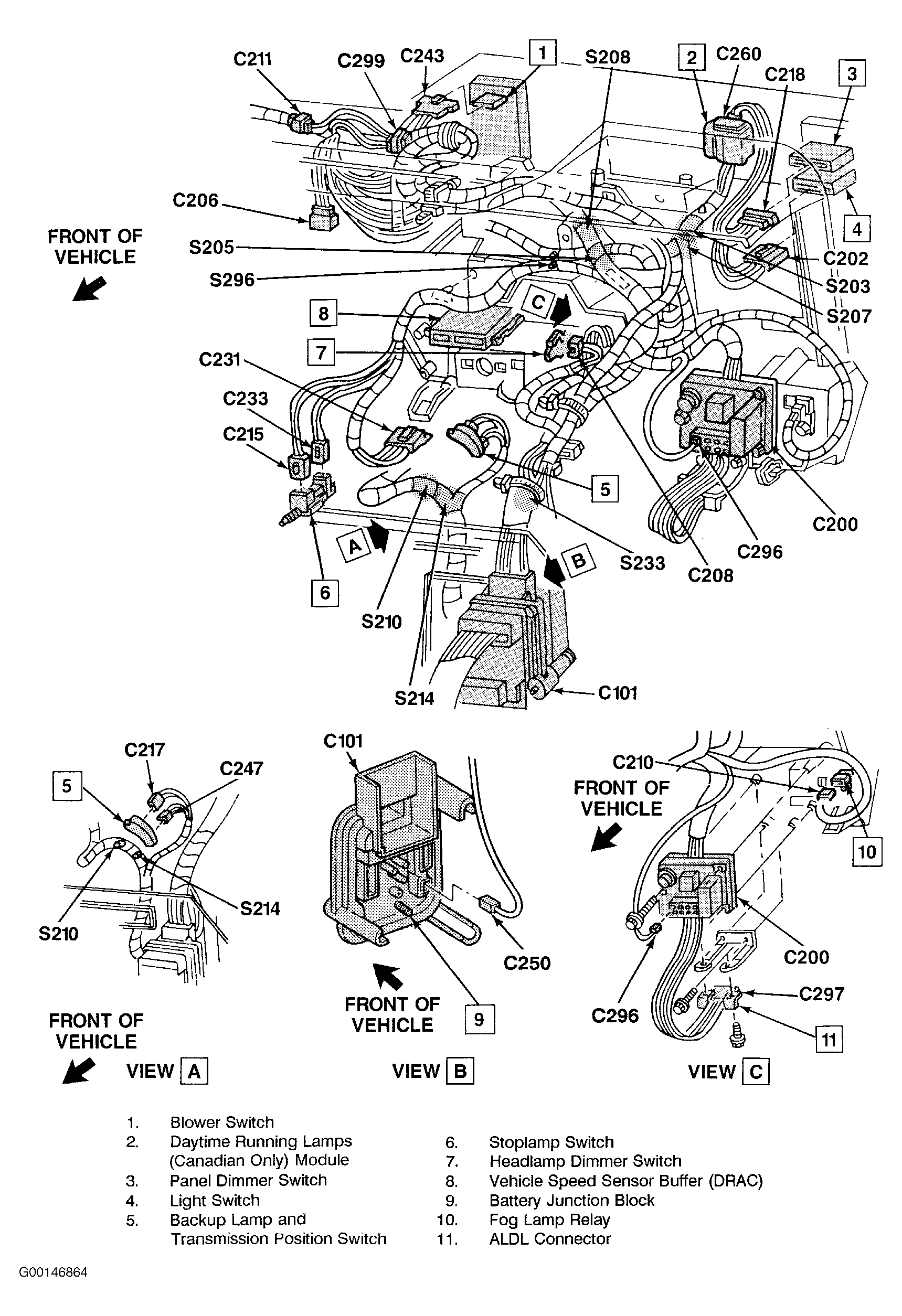

| C296 | At Convenience Center. See Fig 2 . |
| GT225 | Lower A-Pillar. See Fig 11 . |
| GT226 | Lower A-Pillar. See Fig 11 . |
| GT520 | At Left A-Pillar. See Fig 12 . |

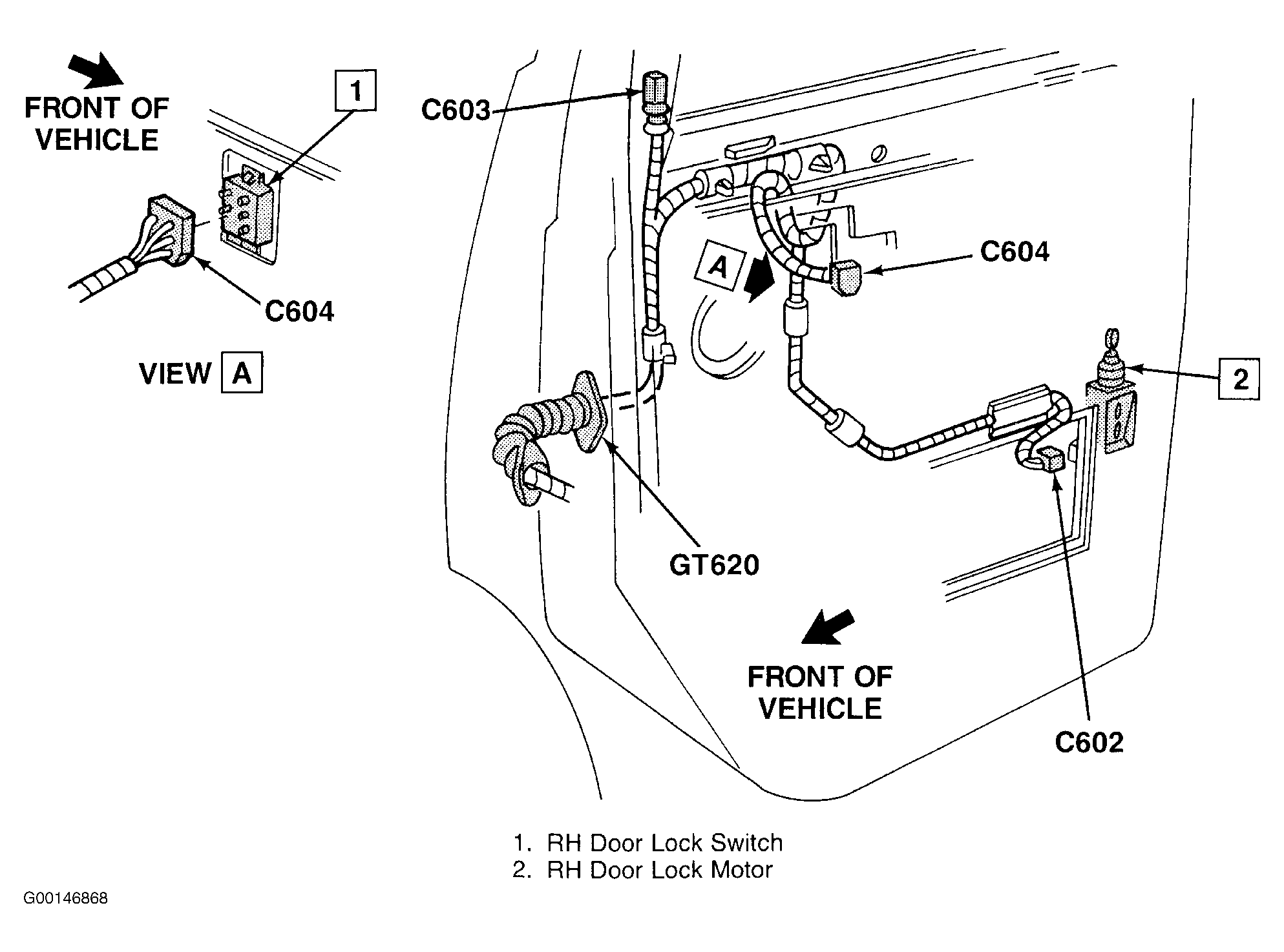

| GT620 | At Right A-Pillar. See Fig 6 . |

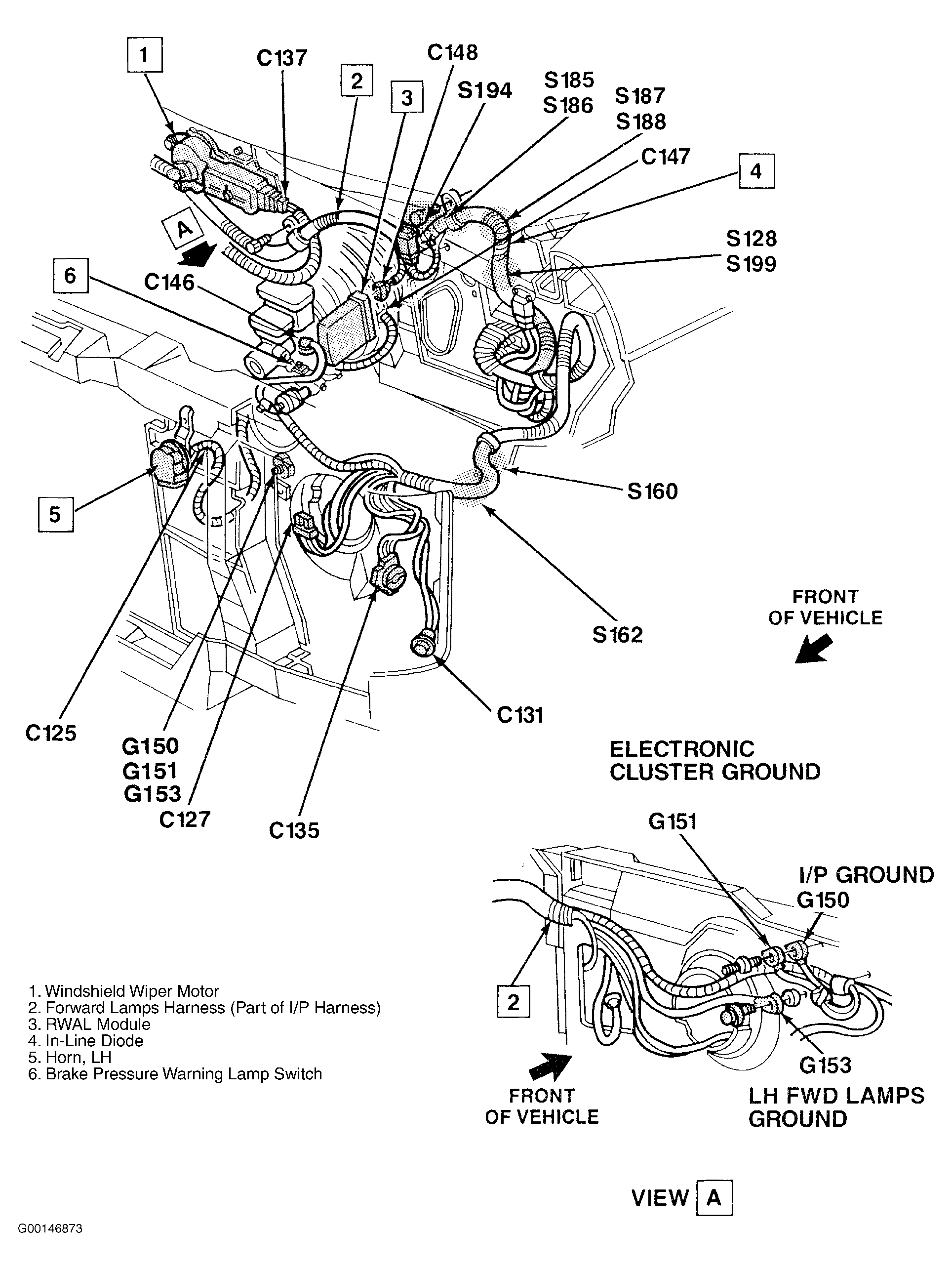

| G150 | On Left Radiator Support, Near Left Headlamp. See Fig 13 . |
| S208 | Behind Left Side Of Instrument Panel, Above Steering Column. See Fig 2 . |
| S251 | In Crossbody Harness, Left Side Of Instrument Panel. See Fig 11 . |
| S252 | In Crossbody Harness, Left Side Of Instrument Panel. See Fig 11 . |
| S255 | In Crossbody Harness, Right Side Of Instrument Panel. See Fig 11 . |
| S256 | In Crossbody Harness, Right Side Of Instrument Panel. See Fig 11 . |
| S257 | In Crossbody Harness, Right Side Of Instrument Panel. See Fig 11 . |
| S258 | In Crossbody Harness, Right Side Of Instrument Panel. See Fig 11 . |

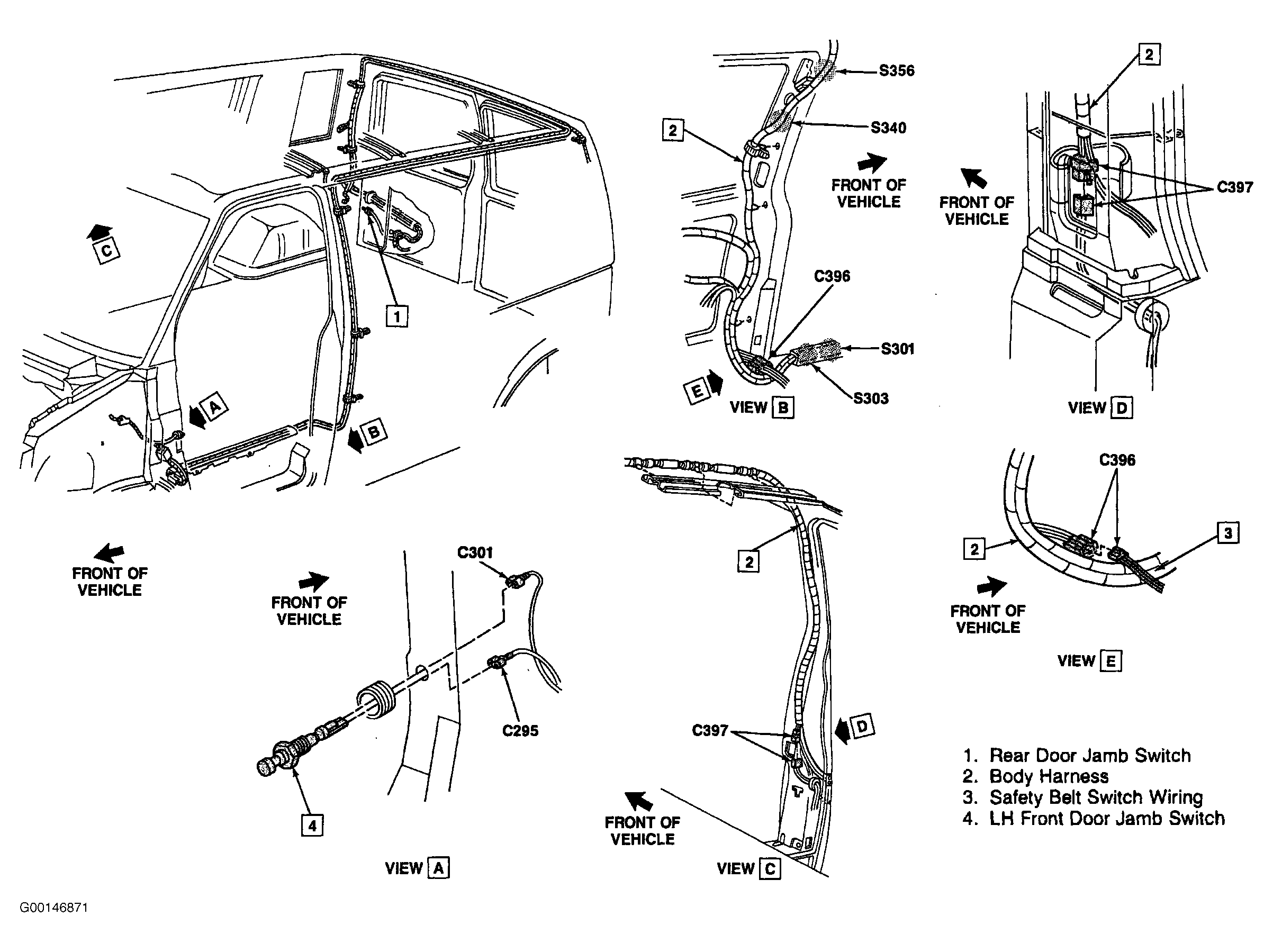

| S301 | Left Sill Plate. See Fig 9 . |
| S303 | Left Sill Plate. See Fig 9 . |

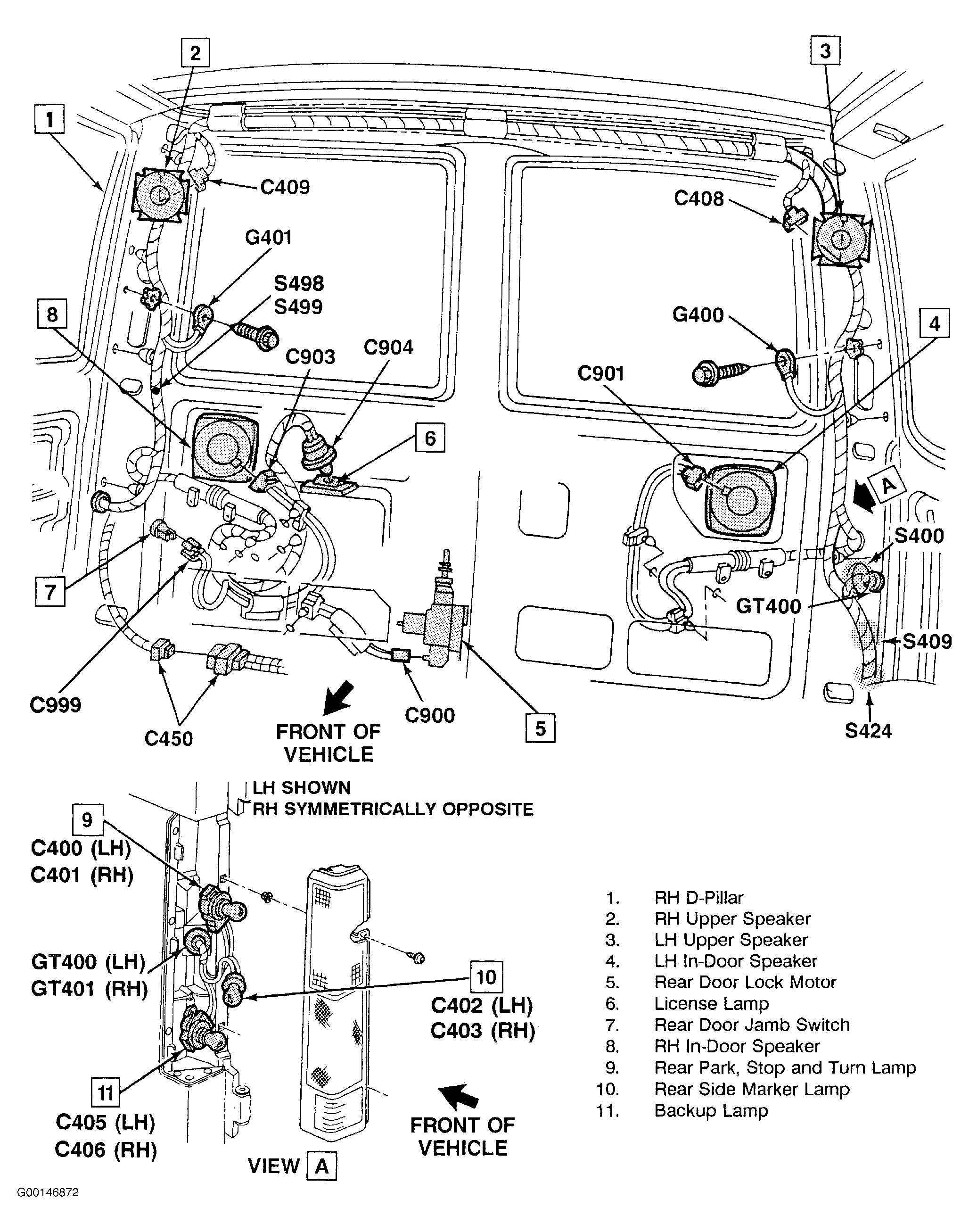

| S498 | Right D-Pillar. See Fig 10 . |
| S499 | Right D-Pillar. See Fig 10 . |
