EXPERTEC TSB (88-232-6C)

WARNING: This page is about the Spectrum Base, 2D Hatchback, Automatic, which is a different variant/trim than selected.

Publication date: 1988-05-06
Reference number: 88-232-6C

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 88-232-6C, Date of Issue: 05/06/88

05/06/1988

Chevrolet 88-232-6C

Model and Year: 1988 NOVA SERVICE MANUAL (ST-373-88)

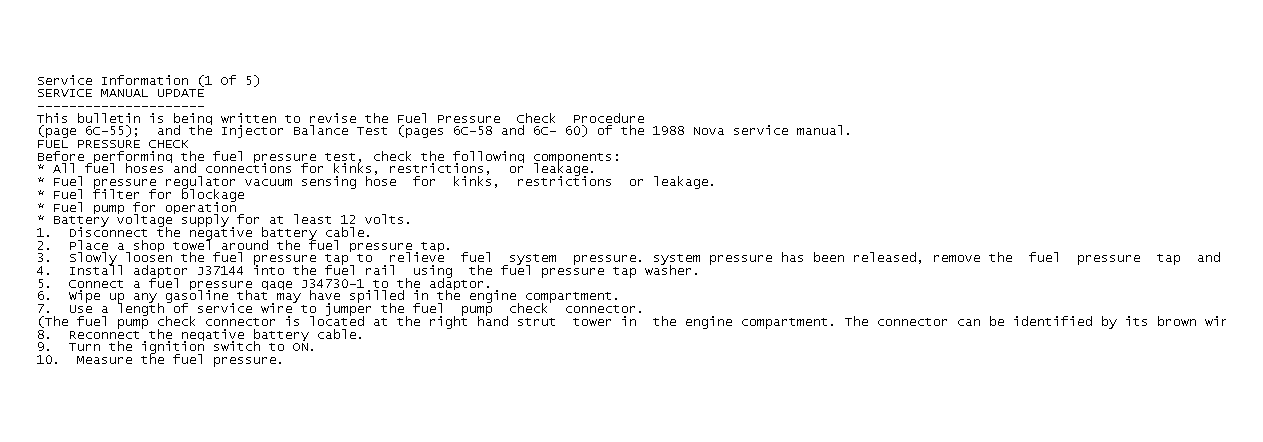

Fig 1: Service Information (1 Of 5)

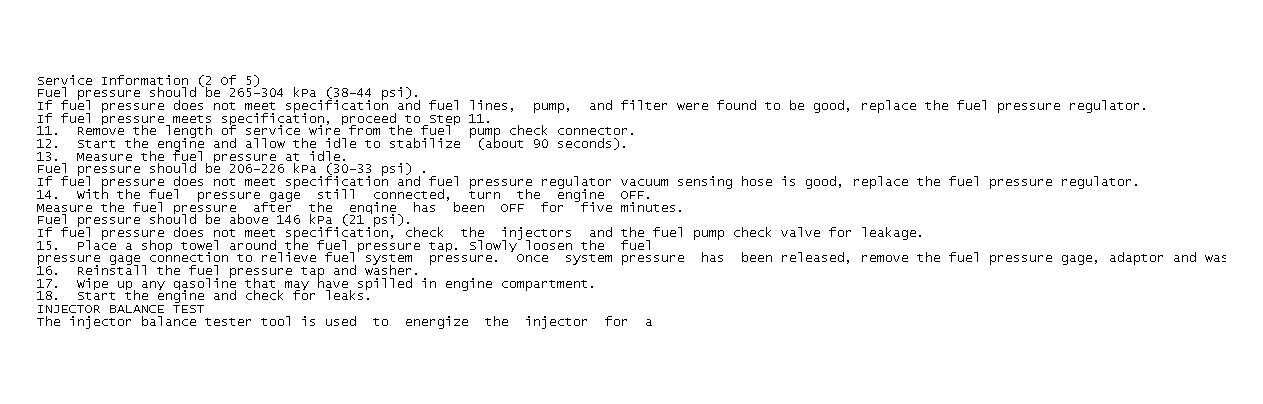

Fig 2: Service Information (2 Of 5)

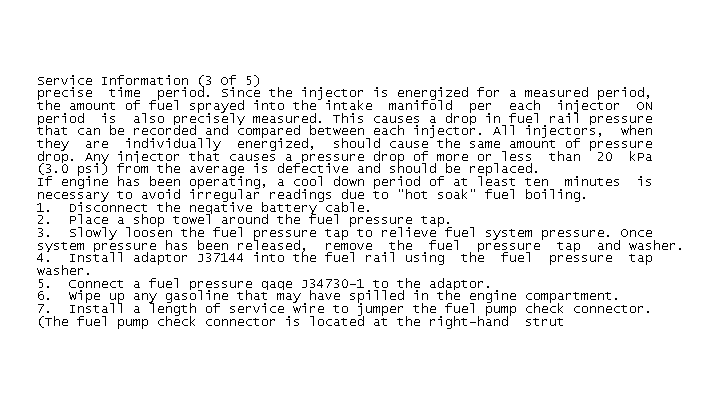

Fig 3: Service Information (3 Of 5)

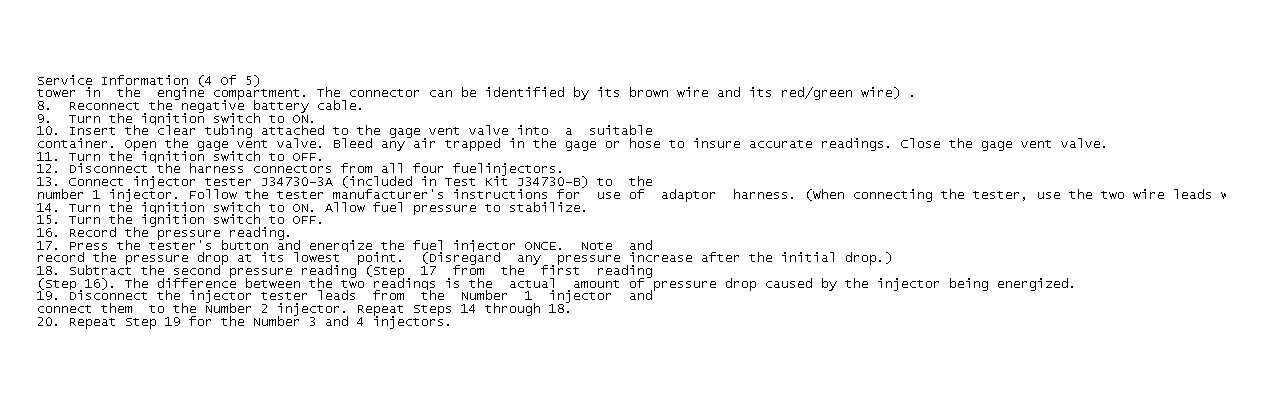

Fig 4: Service Information (4 Of 5)

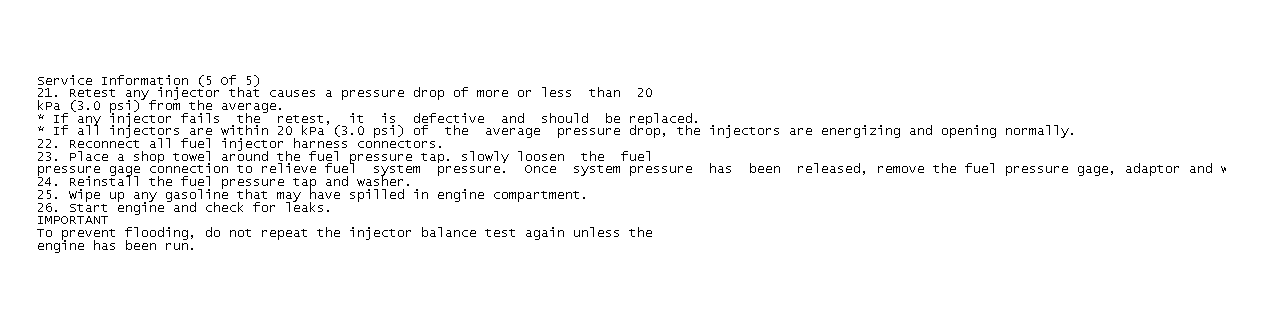

Fig 5: Service Information (5 Of 5)
