Fuse Panel Identification (1987-88 Turbo): Notes

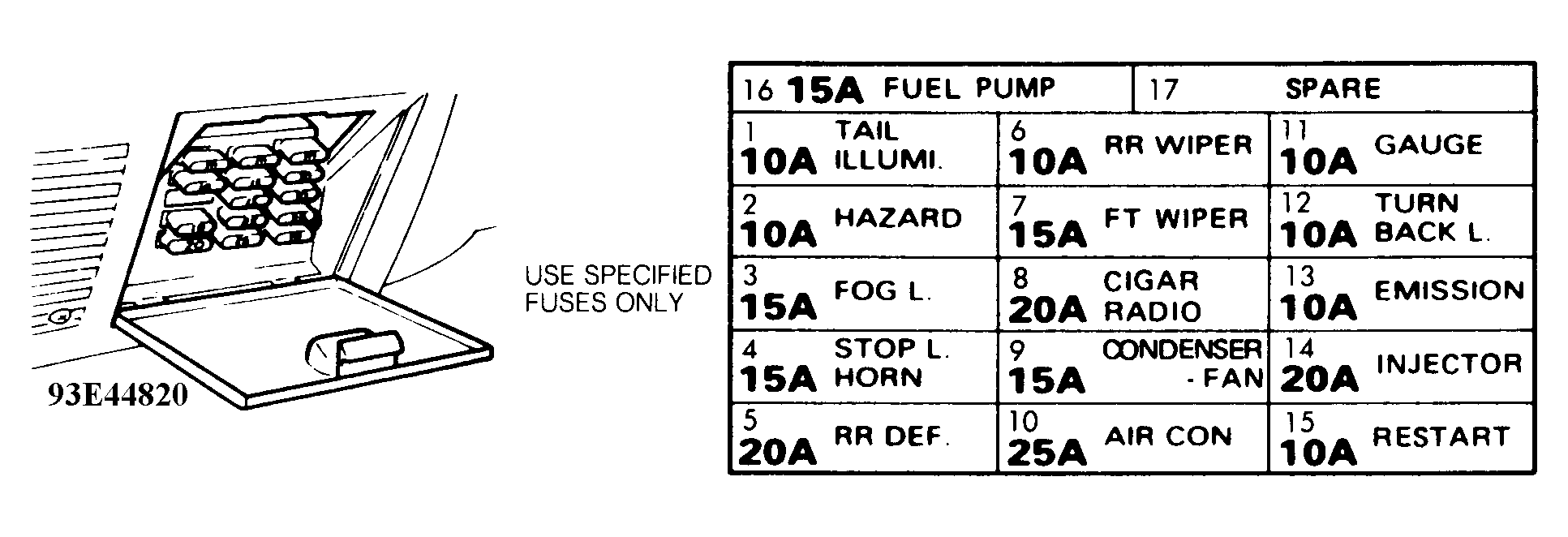

Fig 1: Fuse Panel Identification (1987-88 Turbo)

G93E44820

Courtesy of GENERAL MOTORS CORP.
