NIPPONDENSO Electronic Ignition System: Overhaul: Reassembly
To reassemble, reverse disassembly procedures, noting the following points:
- Governor springs should be fitted to spring hanger pin of governor shaft assembly with smaller hook end downward.
- Correctly align rotor and governor shafts, according to scribe marks made during installation.
- Use a new roll pin when installing collar.
- When installing breaker assembly, the edge at cutaway portion of base must be flush with edge of base fixing screw slot.
- Roll pin should be installed so that slot is parallel with cutaway portion of reluctor, as viewed from above.

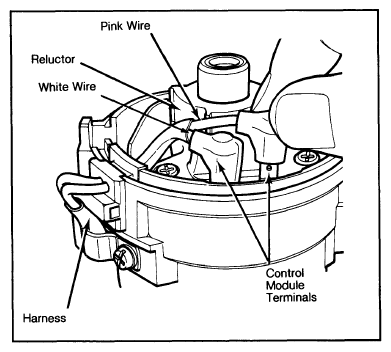

- Harness terminal should be connected to pick-up coil and control module assembly as shown in Fig 1. Install gasket after setting cover to housing.
Notice wire colors and their location.
