Fastener Specifications

Courtesy of GENERAL MOTORS COMPANY

Rear Window Wiper Arm

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure

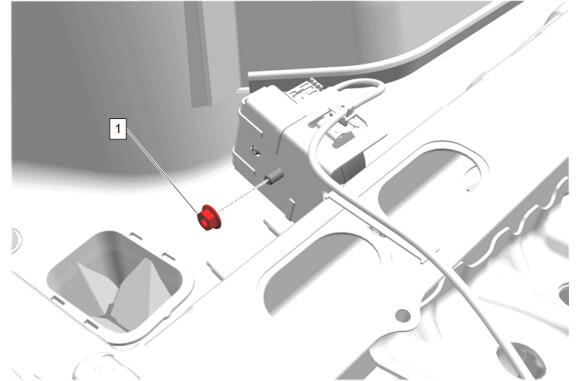

1	Content Theft Deterrent Alarm Nut [1x]	-	-	9 N.m (80 lb in)	Content Theft Deterrent Alarm Replacement (UTR)
