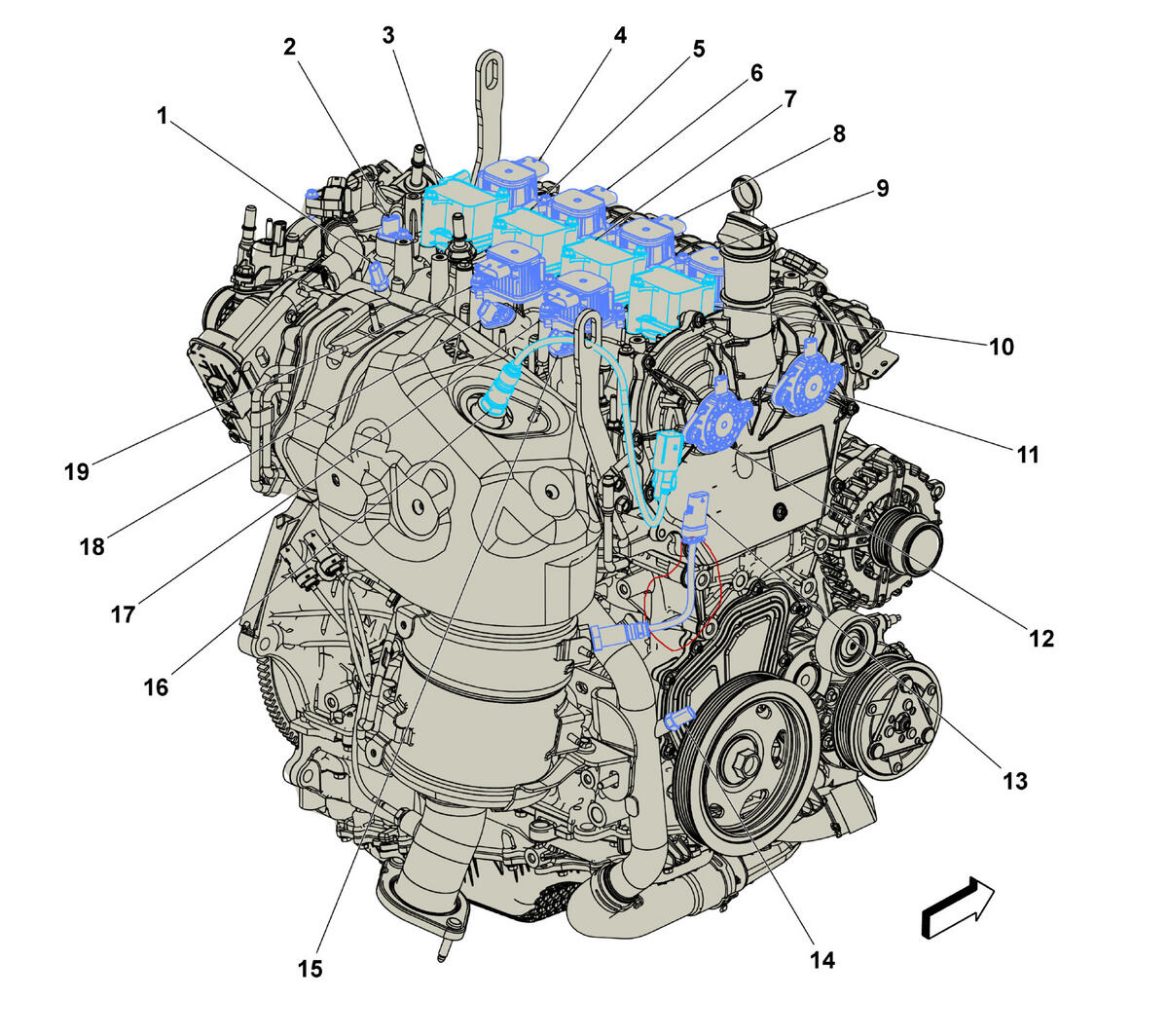

Top Right Front of Engine Components (LSY)
Top Right Front of Engine Components (LSY)
| Components |
|---|
| 1. B34E Engine Coolant Temperature Sensor 5 (LSY) B34E Engine Coolant Temperature Sensor 5 (LSY) |
| 2. B23E Camshaft Position Sensor - Exhaust (LSY) B23E Camshaft Position Sensor - Exhaust (LSY) |
| 3. T8D Ignition Coil 4 (LSY/LGX) T8D Ignition Coil 4 (LSY) |
| 4. M129D Intake Camshaft Profile Actuator 4 (LSY) M129D Intake Camshaft Profile Actuator 4 (LSY) |
| 5. T8C Ignition Coil 3 (LSY/LGX) T8C Ignition Coil 3 (LSY) |
| 6. M129C Intake Camshaft Profile Actuator 3 (LSY) M129C Intake Camshaft Profile Actuator 3 (LSY) |
| 7. T8B Ignition Coil 2 (LSY/LGX) T8B Ignition Coil 2 (LSY) |
| 8. M129B Intake Camshaft Profile Actuator 2 (LSY) M129B Intake Camshaft Profile Actuator 2 (LSY) |
| 9. M129A Intake Camshaft Profile Actuator 1 (LSY) M129A Intake Camshaft Profile Actuator 1 (LSY) |
| 10. T8A Ignition Coil 1 (LSY/LGX) T8A Ignition Coil 1 (LSY) |
| 11. Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY) Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY) |
| 12. Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LSY) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LSY) |
| 13. B52B Heated Oxygen Sensor 2 (LSY) B52B Heated Oxygen Sensor 2 (LSY) |
| 14. B34A Engine Coolant Temperature Sensor 1 (LSY) B34A Engine Coolant Temperature Sensor 1 (LSY) |
| 15. B339A Exhaust Camshaft Profile Sleeve Position Sensor 1 (LSY) B339A Exhaust Camshaft Profile Sleeve Position Sensor 1 (LSY) |
| 16. B52A Heated Oxygen Sensor 1 (LSY) B52A Heated Oxygen Sensor 1 (LSY) |
| 17. M130B Exhaust Camshaft Profile Actuator 2 (LSY) M130B Exhaust Camshaft Profile Actuator 2 (LSY) |
| 18. B339B Exhaust Camshaft Profile Sleeve Position Sensor 2 (LSY) B339B Exhaust Camshaft Profile Sleeve Position Sensor 2 (LSY) |
| 19. M130C Exhaust Camshaft Profile Actuator 3 (LSY) M130C Exhaust Camshaft Profile Actuator 3 (LSY) |
