Front Side Door Inside Handle Replacement

Courtesy of GENERAL MOTORS COMPANY

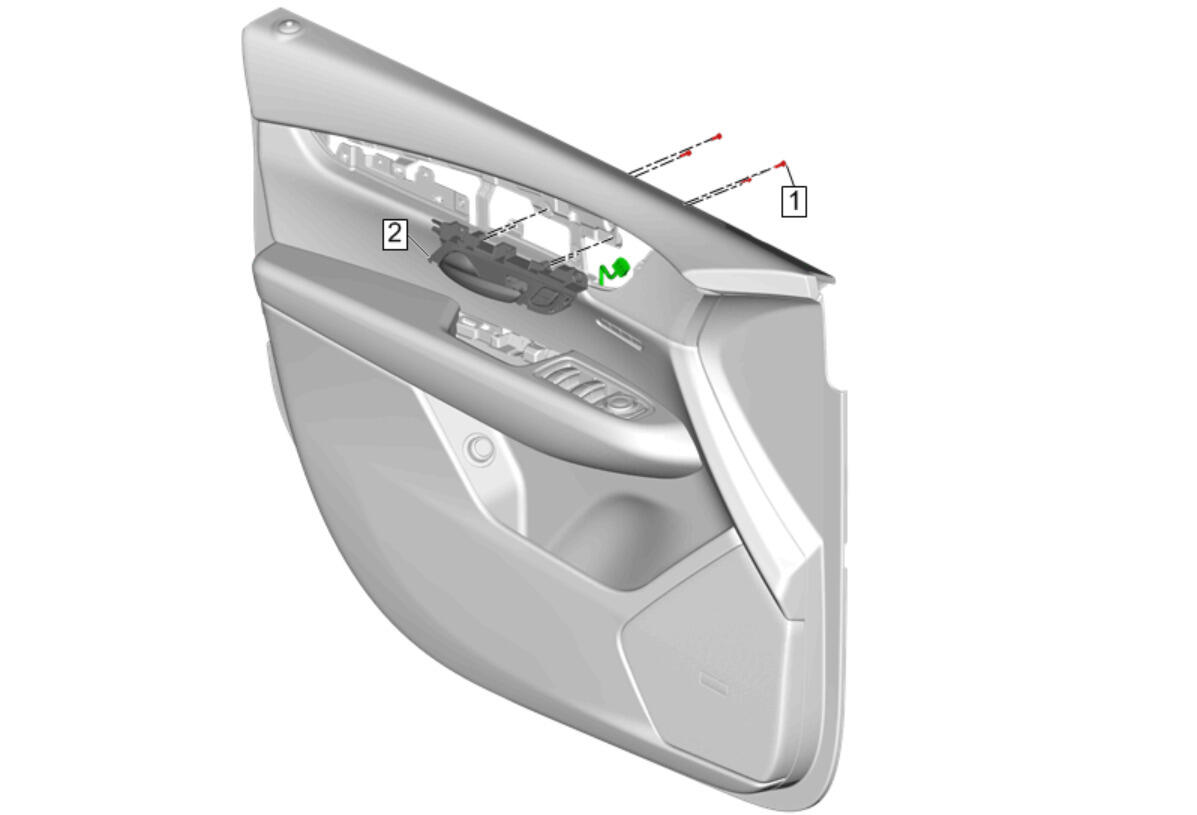

Callout	Component Name
Preliminary Procedure Front Side Door Trim Replacement Front Side Door Trim Panel Applique Replacement Reposition insulator, as required.
1	Front Side Door Inside Handle Fastener [ 4x ] CAUTION: Refer to Fastener Caution . NOTE: The four screws are located on the backside of the trim panel. Tighten 2.5 N.m (22 lb in)
2	Front Side Door Inside Handle Procedure Disconnect all electrical connectors. Unlock the front side door inside handle cable. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure

Front Side Door Inside Handle Fastener [ 4x ]

CAUTION:

NOTE:

The four screws are located on the backside of the trim panel.

Tighten
2.5 N.m (22 lb in)

Front Side Door Inside Handle

Procedure
