Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.

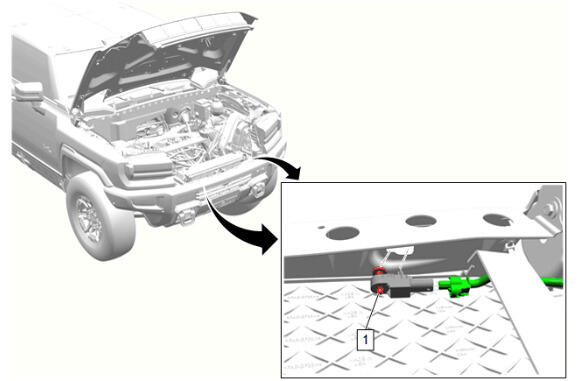

Airbag Front End Discriminating Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Airbag Front End Discriminating Sensor | - | - | 7.5 N.m (66 lb in) | Airbag Front End Discriminating Sensor Replacement |

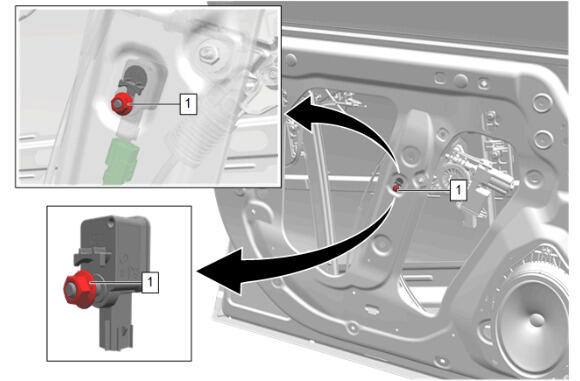

Airbag Side Impact Rear Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Airbag Side Impact Rear Sensor | - | - | 7.5 N.m (66 lb in) | Airbag Side Impact Rear Sensor Replacement |

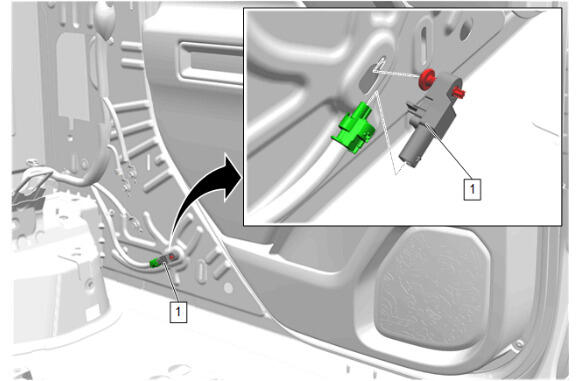

Airbag Side Impact Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Airbag Side Impact Sensor | - | - | 7.5 N.m (66 lb in) | Airbag Side Impact Sensor Replacement |

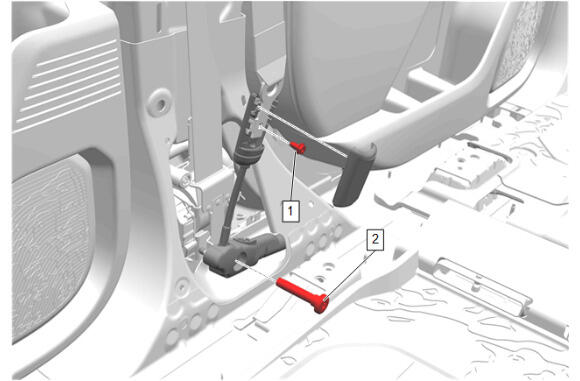

Front Seat Belt Anchor Plate Tensioner
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Belt Anchor Plate Tensioner Bolt- Upper | - | - | 9 N.m (80 lb in) | Front Seat Belt Anchor Plate Tensioner Replacement |
| 2 | Front Seat Belt Anchor Plate Tensioner Bolt- Lower | - | - | 45 N.m (33 lb ft) | Front Seat Belt Anchor Plate Tensioner Replacement |

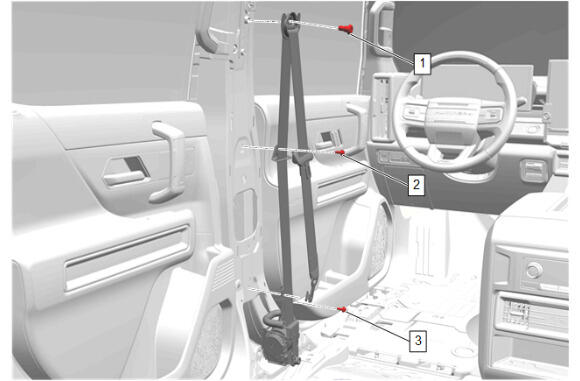

Front Seat Belt Retractor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Belt Retractor Bolt- Upper | - | - | 45 N.m (33 lb ft) | Front Seat Belt Retractor Replacement |
| 2 | Front Seat Belt Intermediate Guide Bolt | - | - | 9 N.m (80 lb in) | Front Seat Belt Retractor Replacement |
| 3 | Front Seat Belt Retractor Bolt- Lower | - | - | 9 N.m (80 lb in) | Front Seat Belt Retractor Replacement |

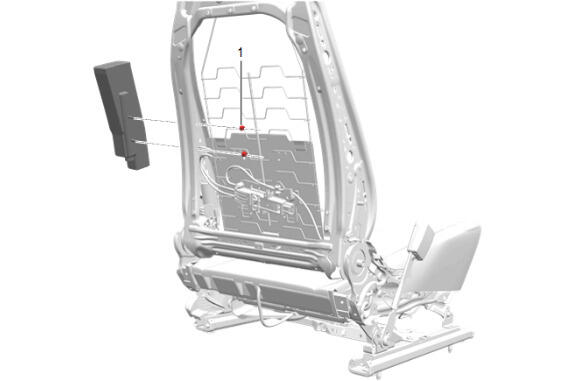

Front Seat Outboard Seat Back Airbag
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Outboard Seat Back Airbag Nut [2x] | - | - | 4 N.m (36 lb in) | Front Seat Outboard Seat Back Airbag Replacement |

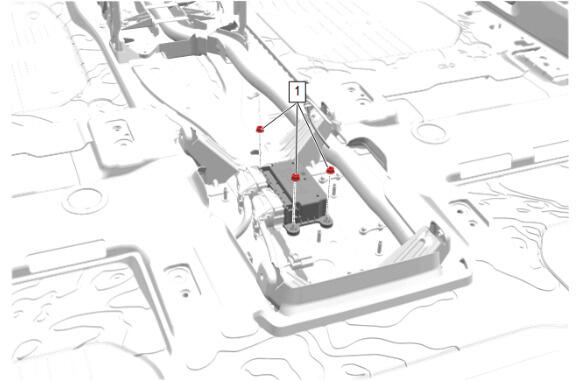

Restraints Control Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Airbag Sensing and Diagnostic Module Nut [3x] | - | - | 9 N.m (80 lb in) | Restraints Control Module Replacement |

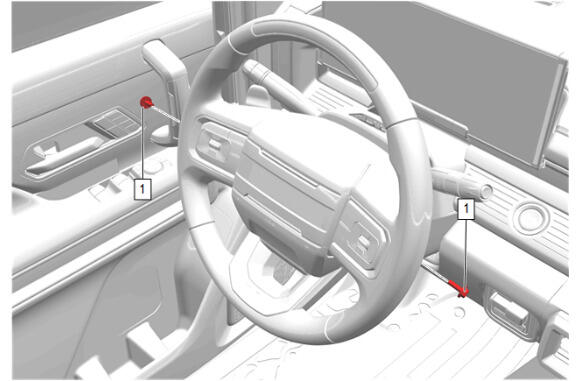

Steering Wheel Airbag
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Wheel Airbag Bolt [2x] | - | - | 9 N.m (80 lb in) | Steering Wheel Airbag Replacement |
