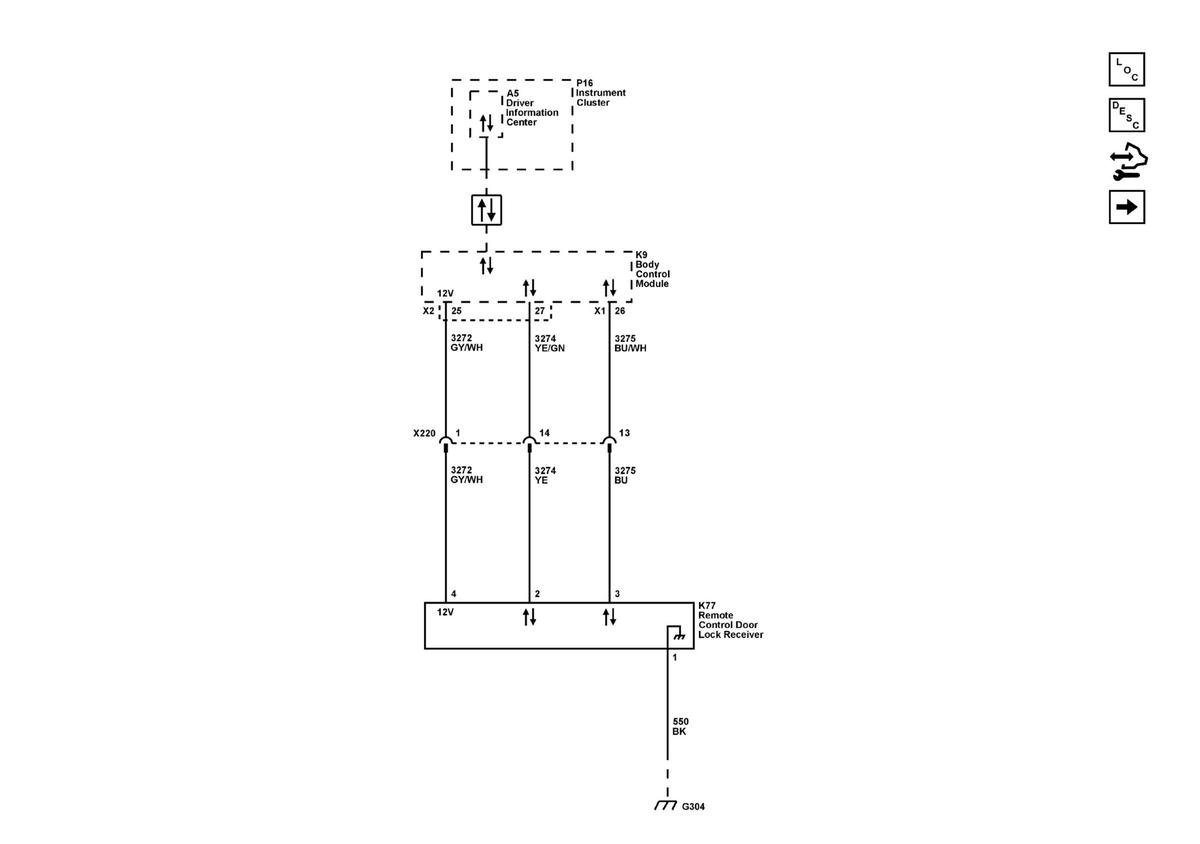

Home >> Cadillac >> 2020 >> XT4 Sport, FWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry - Active
