Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

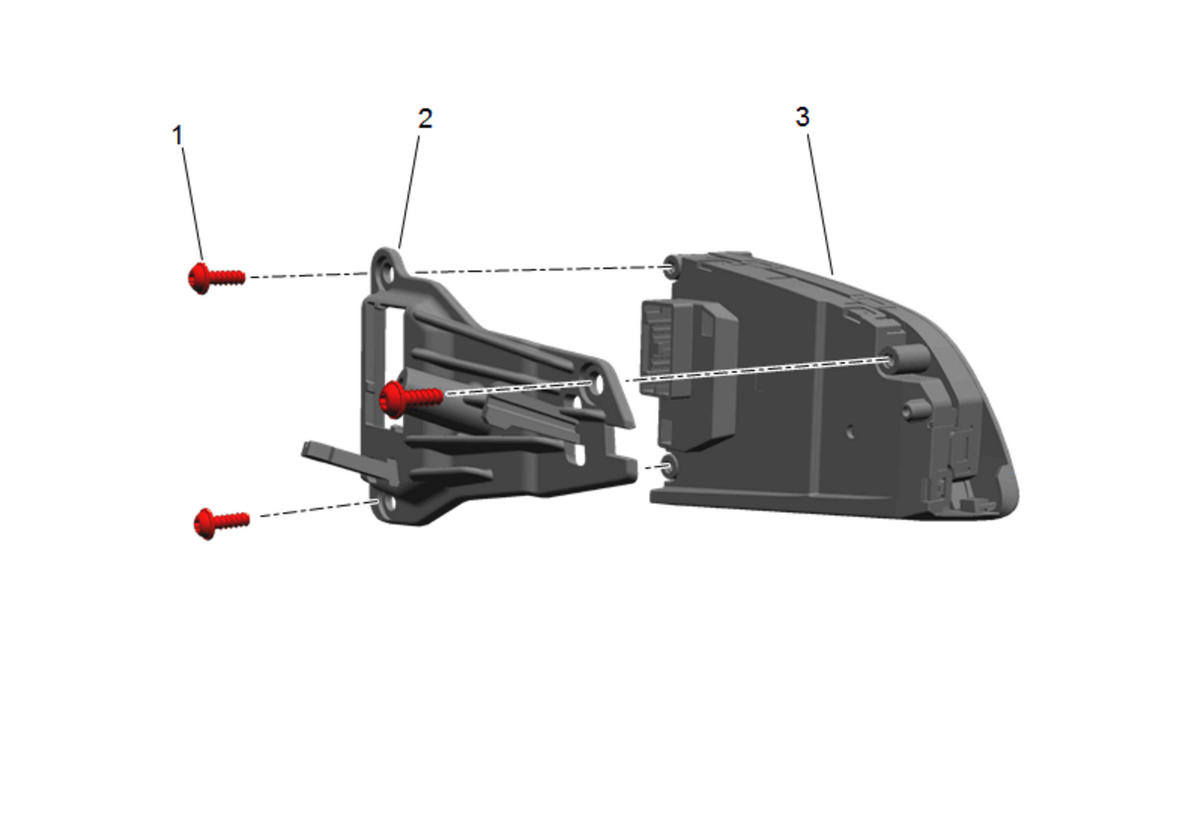

Install the cruise control switch (3) to the cruise control switch bracket (2).

CAUTION:

Install the 3 cruise control switch screws (1) and tighten to 1.1 N.m (10 lb in).
Courtesy of GENERAL MOTORS COMPANY

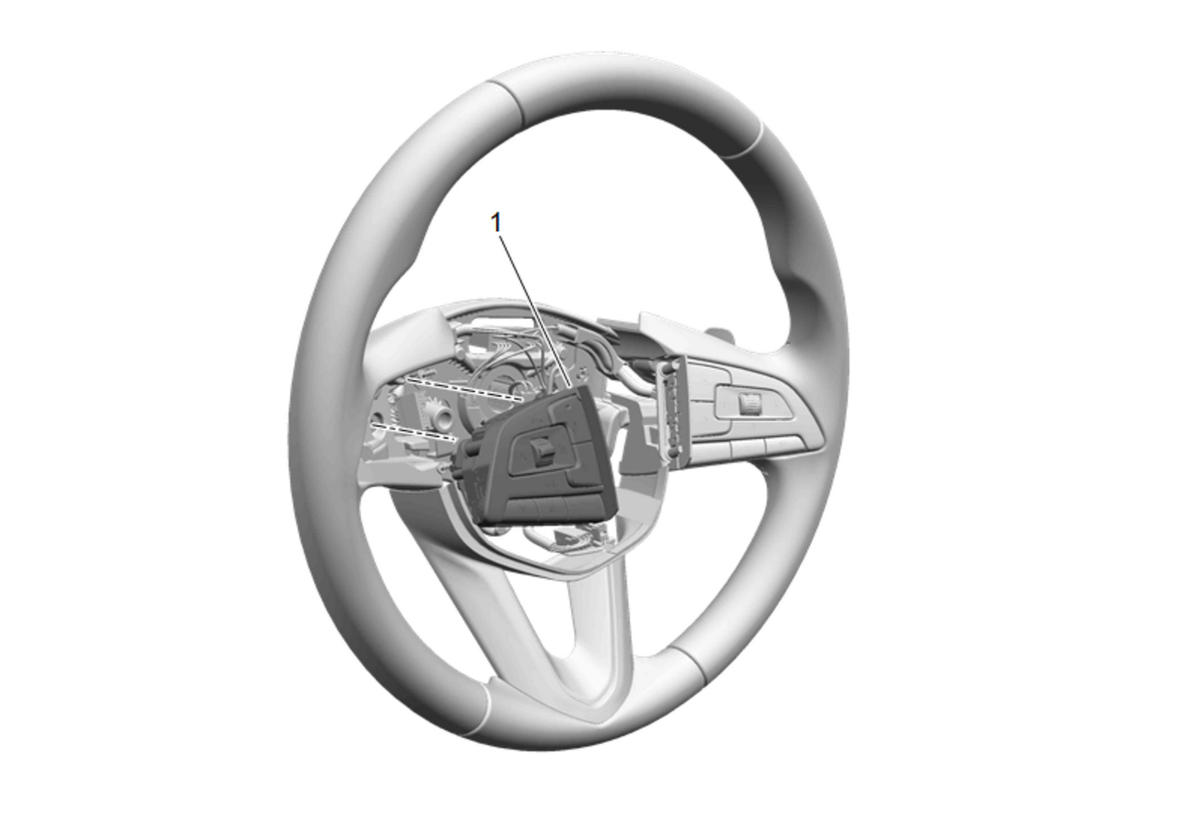

Cruise Control Switch (1) - Install
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

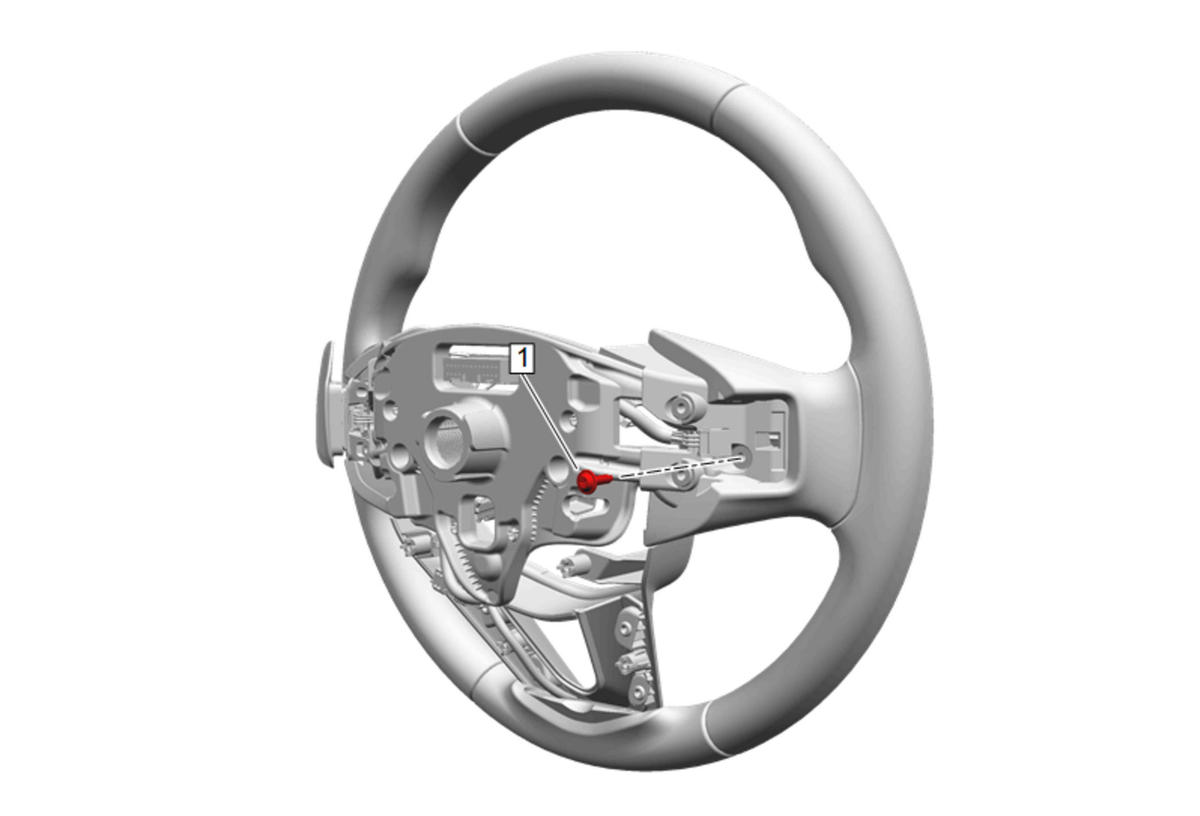

Install the cruise control switch bracket screw (1) and tighten to 1.1 N.m (10 lb in).
Courtesy of GENERAL MOTORS COMPANY

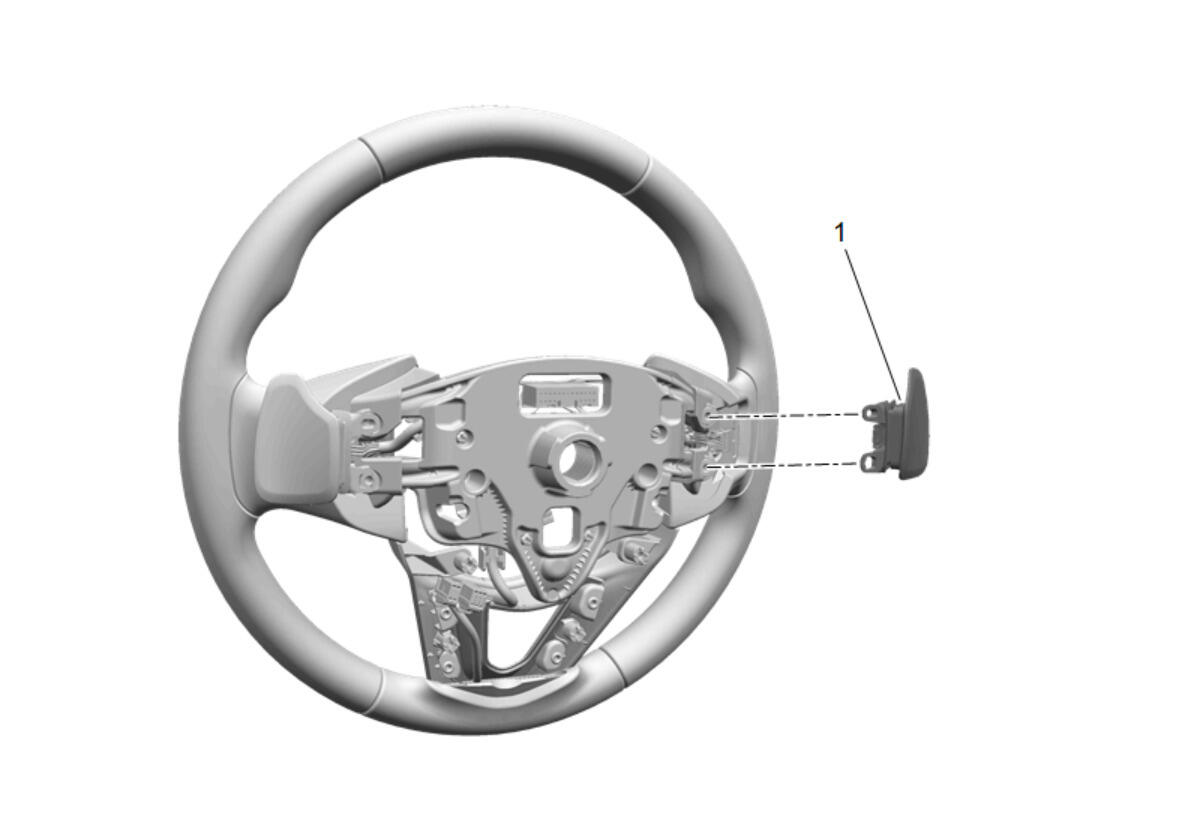

Install the manual shift auxiliary position switch - steering wheel (1). Automatic Transmission Manual Shift Auxiliary Position Switch Replacement (Tap up) , or Automatic Transmission Manual Shift Auxiliary Position Switch Replacement (Tap down)
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Shroud (1) - Install - Steering Wheel Shroud Replacement
Courtesy of GENERAL MOTORS COMPANY

Install the steering wheel. (1) Steering Wheel Replacement
Steering Wheel Airbag - Install - Steering Wheel Airbag Replacement
Courtesy of GENERAL MOTORS COMPANY

Install the steering wheel airbag access hole cover (1). Steering Wheel Airbag Access Hole Cover Replacement
