Preliminary Procedures
- Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation
.
- Remove the rear seat back cushion bolster, if equipped. Refer to Rear Seat Back Bolster Replacement
.
- Remove the rear seat back cushion, if equipped with fixed seat back (without AM9). Refer to Rear Seat Back Cushion Removal and Installation (40% with AM9)
, or Rear Seat Back Cushion Removal and Installation (60% with AM9)
, or Rear Seat Back Cushion Removal and Installation (without AM9)
.
- Remove the body side rear window garnish molding. Refer to Body Side Rear Window Garnish Molding Replacement
.
|

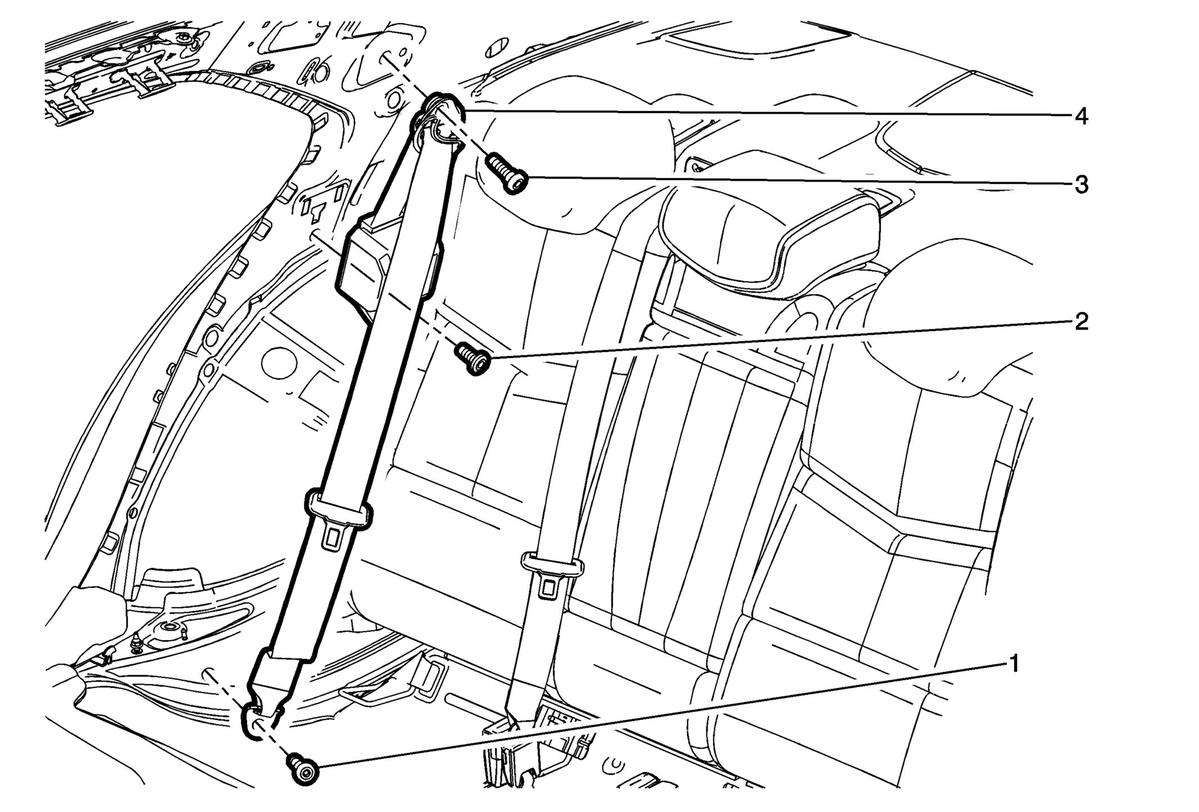

| 1 |
Rear Seat Belt Retractor Anchor Plate Bolt
Tighten
45 N.m (33 lb ft) |
| 2 |
Rear Seat Belt Retractor Bolt (lower)
Tighten
45 N.m (33 lb ft) |
| 3 |
Rear Seat Belt Retractor Bolt (upper)
Tighten
45 N.m (33 lb ft) |
| 4 |
Rear Seat Belt Retractor |
