Front Seat Adjuster Switch Replacement

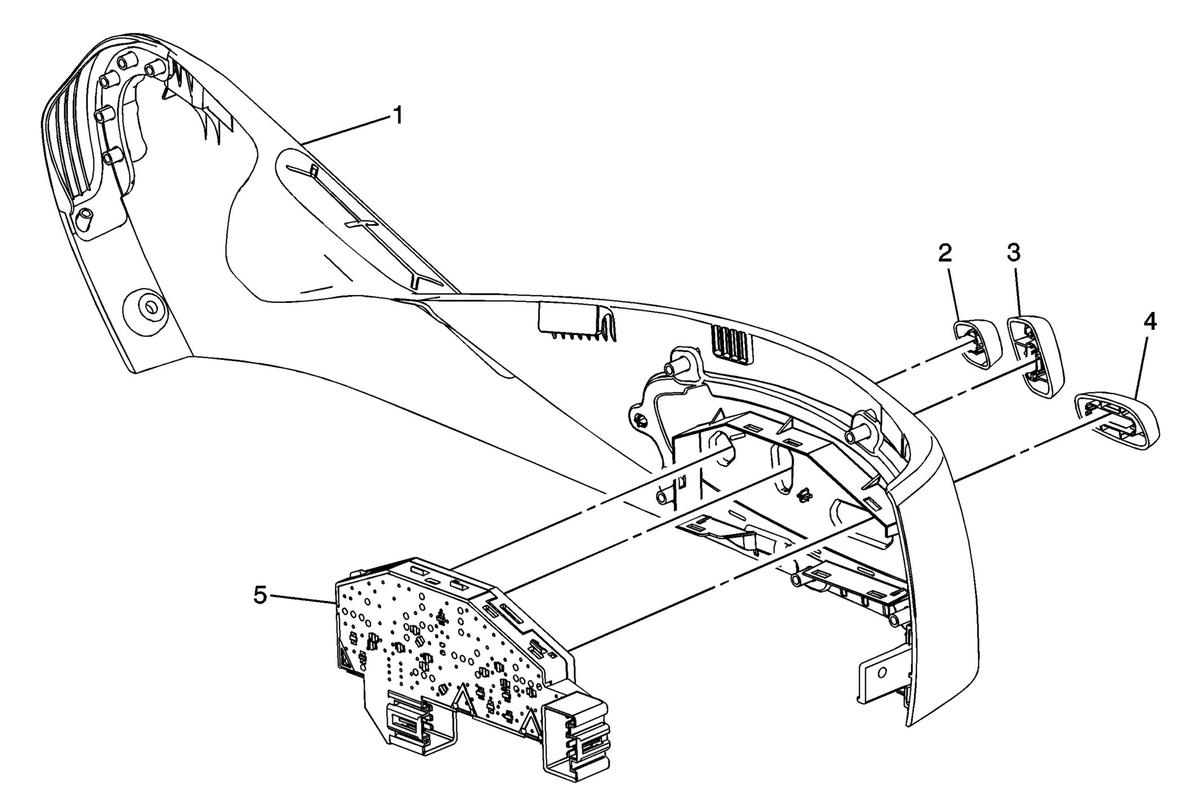

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front seat cushion outer finish panel. Refer to Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Without W2E) , or Driver or Passenger Seat Cushion Outer Finish Panel Replacement (With W2E) . |
|
| 1 | Driver or Passenger Seat Cushion Outer Finish Panel |
| 2 | Driver or Passenger Seat Lumbar Support Actuator Knob |
| 3 | Front Seat Recliner Knob |
| 4 | Front Seat Adjuster Knob |
| 5 | Driver or Passenger Seat Adjuster Switch Procedure Use a flat-bladed tool to release the switch from the finish cover. |
