Auxiliary Rear Compartment Latch Release Handle Replacement

Courtesy of GENERAL MOTORS COMPANY

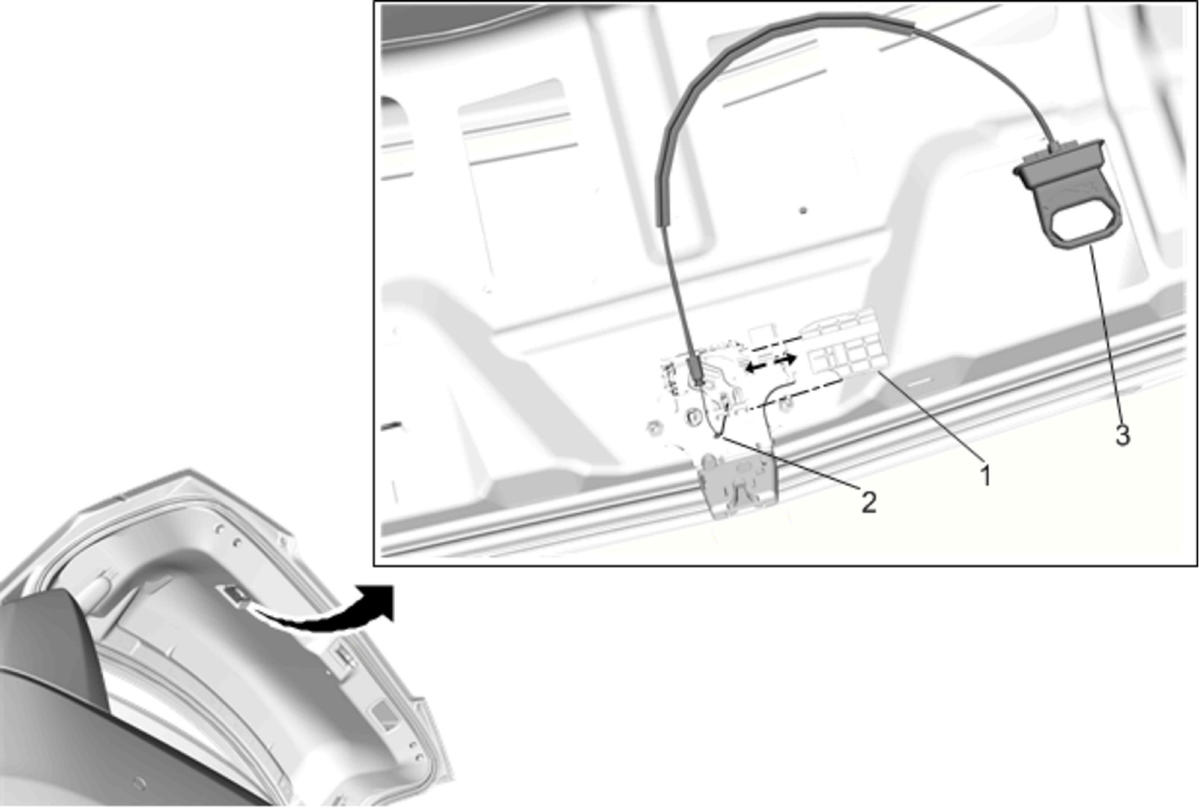

Callout	Component Name
Preliminary Procedure  Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Auxiliary Rear Compartment Latch Release Handle Access Cover Procedure  Depress the retainers and slide the access cover to the right to access the cable end.
2	Auxiliary Rear Compartment Latch Release Handle Retainer Procedure  Turn the auxiliary rear compartment latch release handle retainer 180 degrees and pull out of the rear compartment lid latch.
3	Auxiliary Rear Compartment Latch Release Handle Procedure  Using the appropriate tool, remove the auxiliary rear compartment latch release handle from the rear compartment lid inner panel trim.
