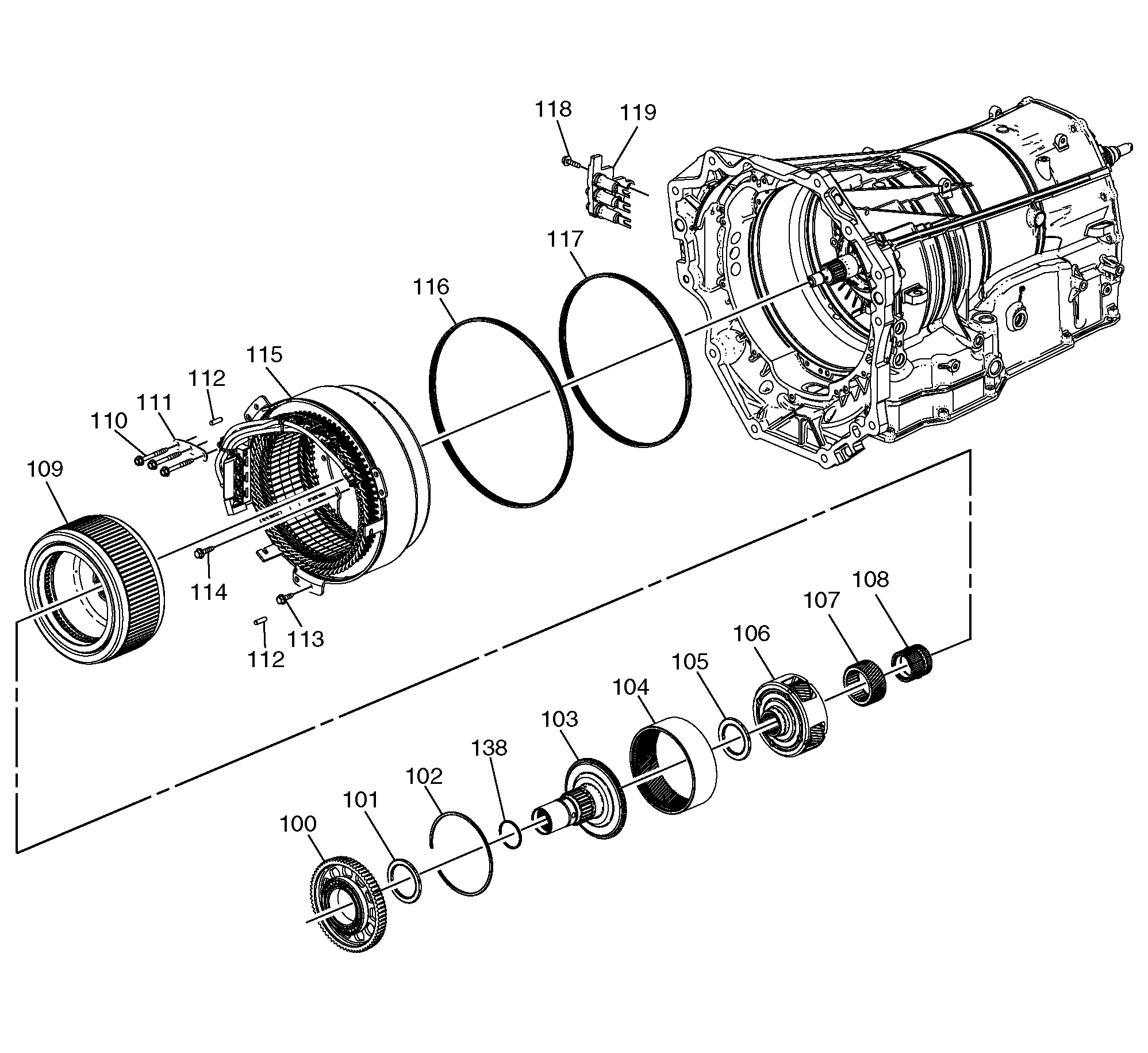

| 100 |
Drive Motor Rotor Bearing |
| 101 |
Input Shaft Thrust Bearing |
| 102 |
Input Shaft Retaining Ring- Position 1 |
| 103 |
Input Shaft |
| 104 |
Internal Gear- Position 1 |
| 105 |
Sun Gear Carrier Thrust Bearing |
| 106 |
Sun Gear Carrier- Position 1 |
| 107 |
Sun Gear- Position 1 |
| 108 |
Sun Gear Shaft- Position 1 |
| 109 |
Drive Motor Rotor |
| 110 |
Automatic Transmission Case Bolt [3x] |
| 111 |
Automatic Transmission Case Fluid Passage Cover |
| 112 |
Drive Motor Locating Pin |
| 113 |
Automatic Transmission Case Bolt [6x] |
| 114 |
Variable 1-4 and 1-3 Clutch Bolt [8x] |
| 115 |
Drive Motor Stator- Position 1 |
| 116 |
Drive Motor Stator Housing Front Seal- Position 1 |
| 117 |
Drive Motor Stator Housing Rear Seal- Position 1 |
| 118 |
Wiring Harness Connector Bolt |
| 119 |
Wiring Harness Connector |
| 138 |
Input Shaft Fluid Seal Ring |
