Installation Procedure
WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

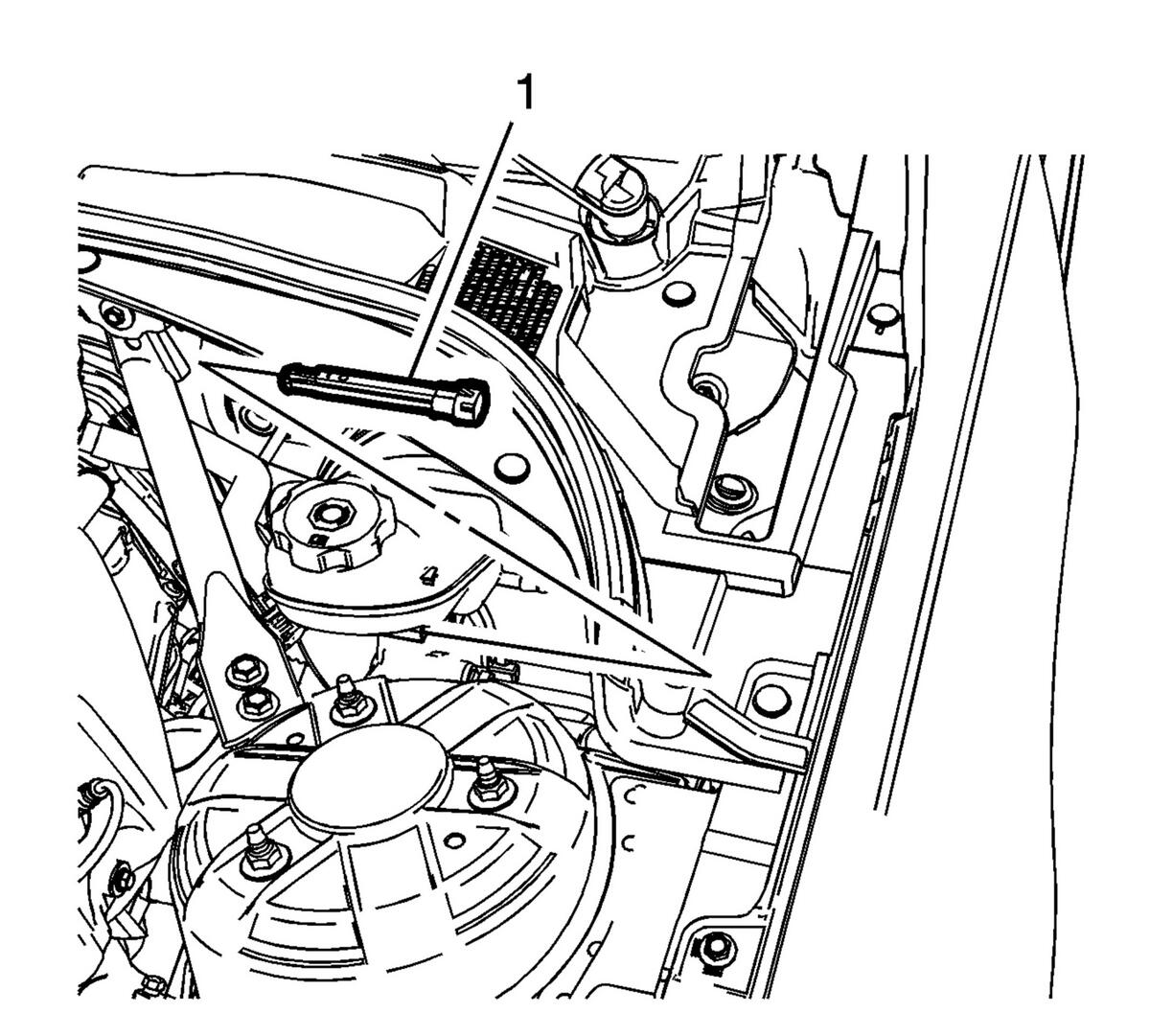

- Install the brake fluid level indicator switch (1).
- Ensure the locking tabs of the brake fluid level indicator switch are fully engaged in the master cylinder reservoir.
- Connect the brake fluid level indicator switch electrical connector.
