Installation Procedure

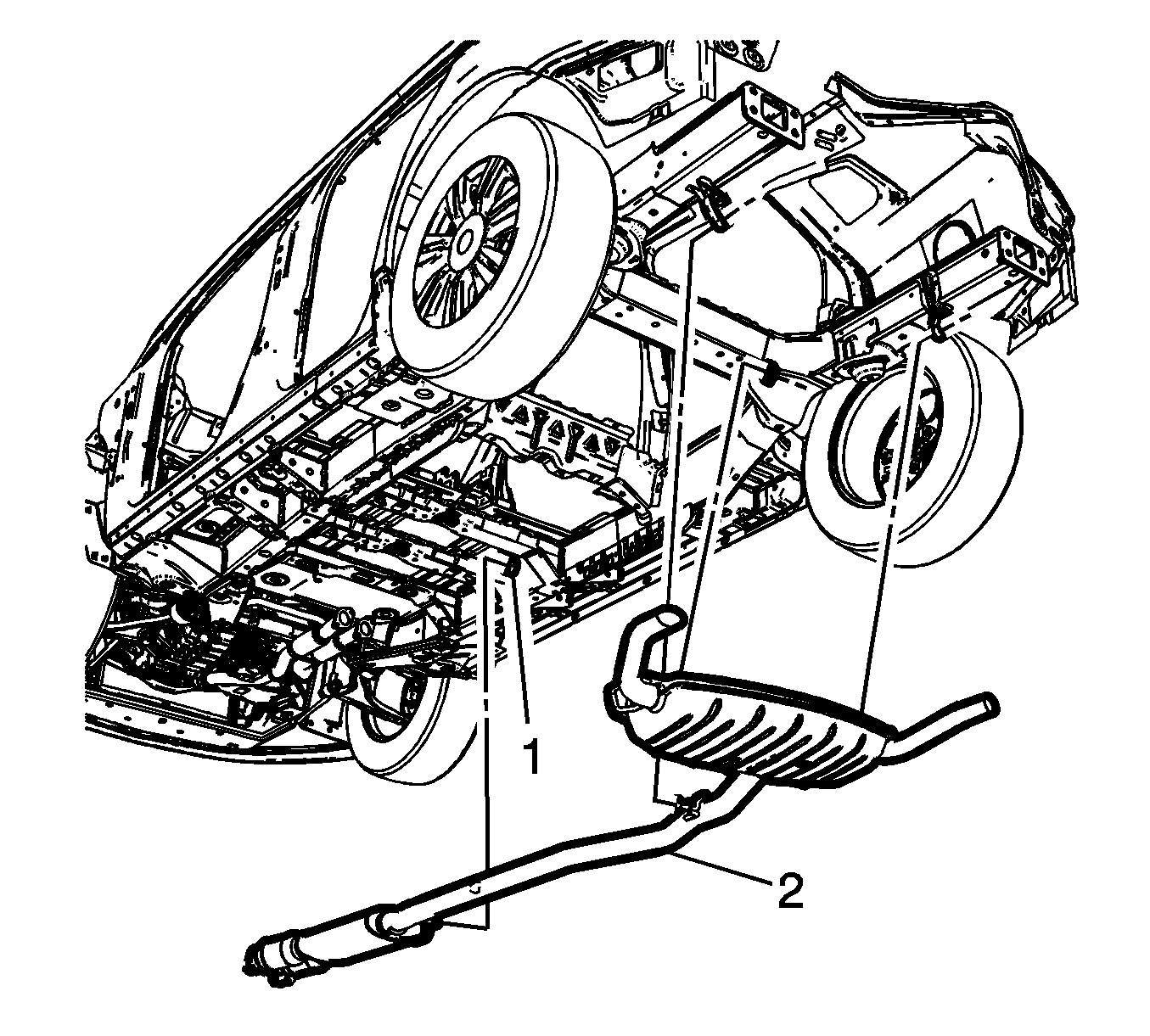

    Fig 1: Muffler Assembly
    GM2666182Courtesy of GENERAL MOTORS COMPANY
  1. Install the exhaust muffler (2) into the exhaust isolators (1).

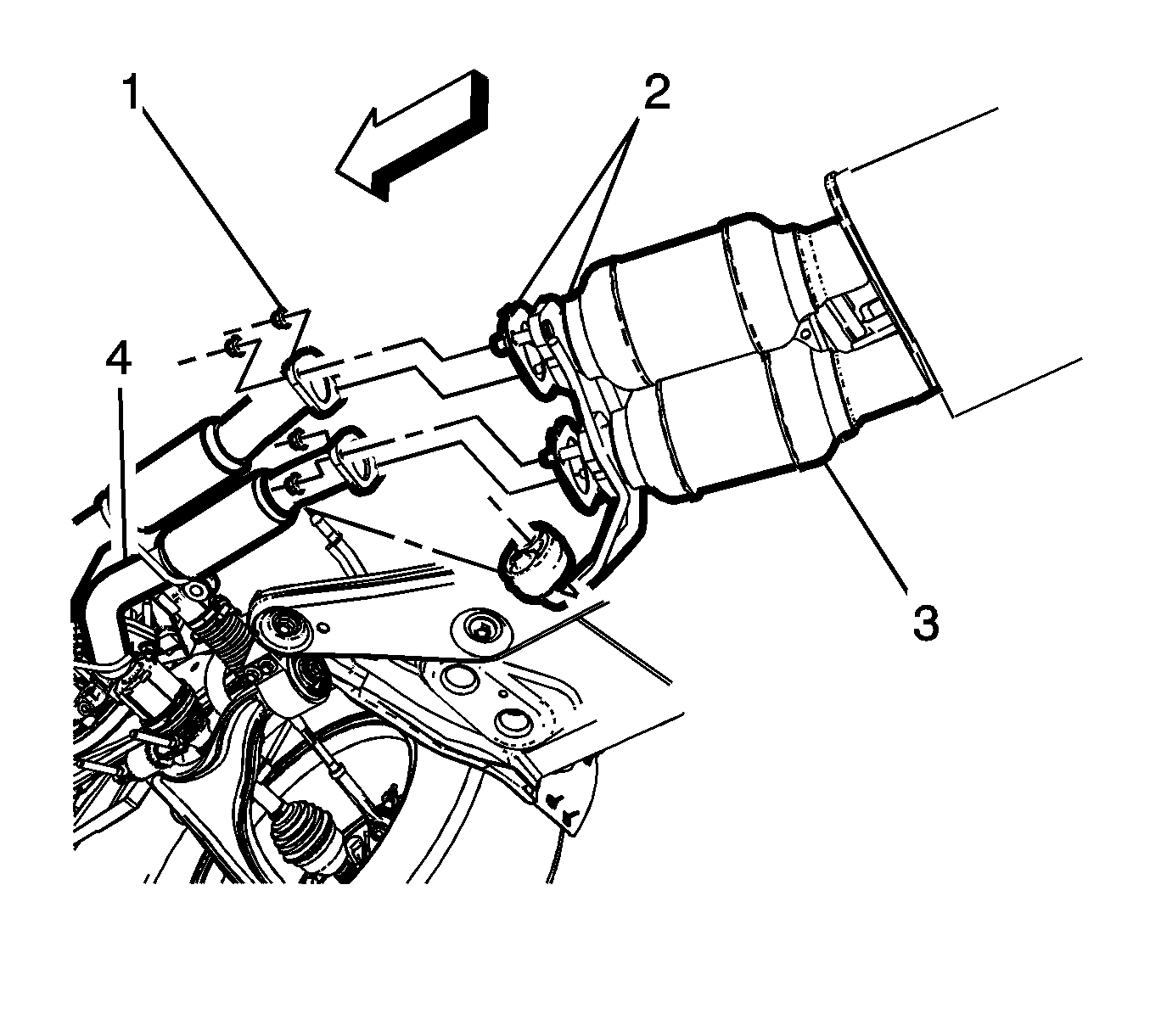

    2. Fig 2: Muffler Fasteners
    GM2666185Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the exhaust muffler (3) into the front catalytic converter (4) with NEW gaskets (2) and tighten the fasteners (1) to 46 N.m (34 lb ft).
  3. Lower the vehicle.
  4. Start the engine and check for exhaust leaks.
