Installation Procedure

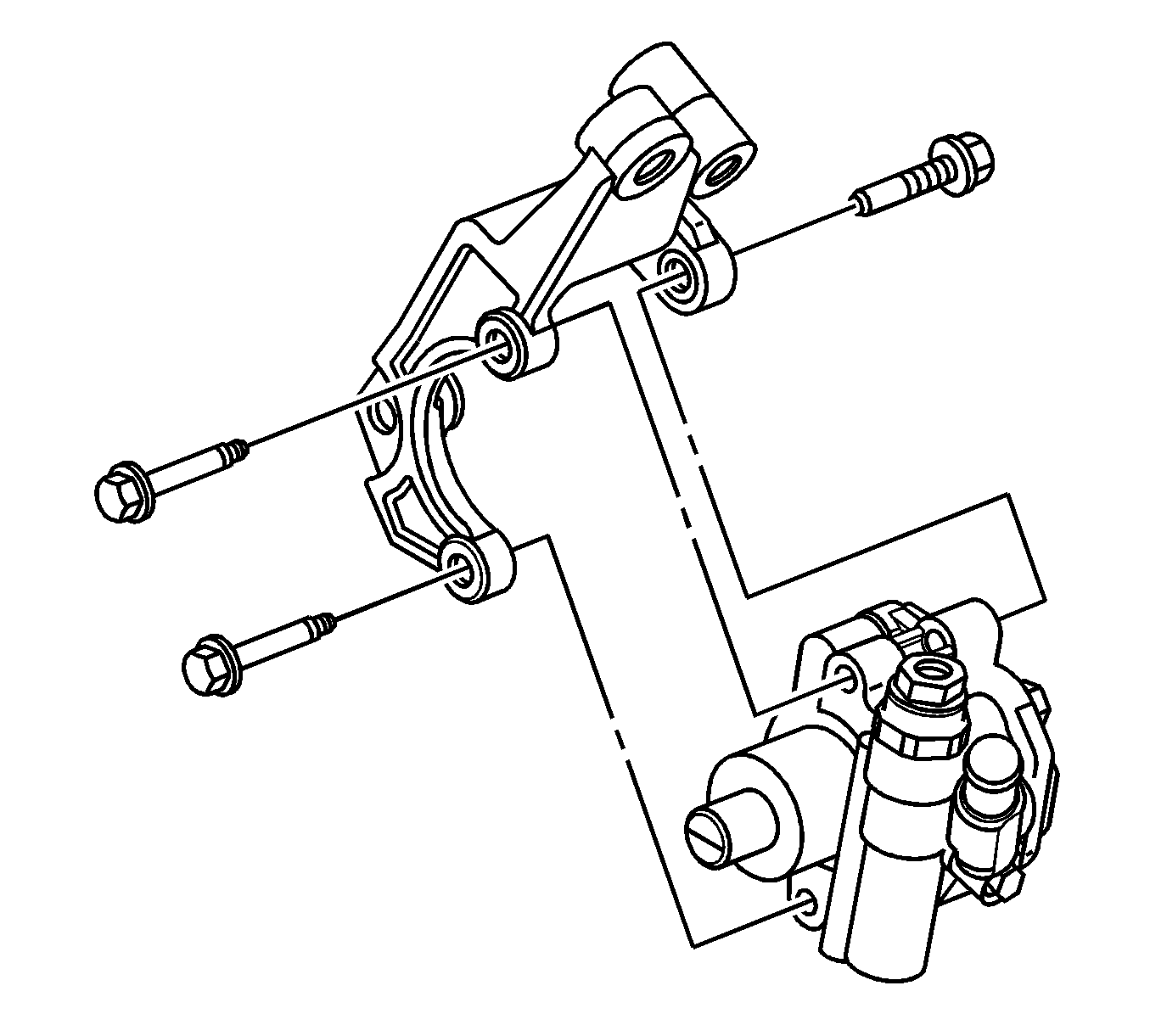

Fig 1: View Of Power Steering Pump Bracket - LY7

GM888285

Courtesy of GENERAL MOTORS COMPANY

Align the power steering pump to the power steering pump bracket.

CAUTION:

Refer to Fastener Caution .

Install the power steering pump bolts.
Tighten

Tighten the bolts to 25 N.m (18 lb ft).
Install the power steering pump. Refer to Power Steering Pump Replacement (V8) , Power Steering Pump Replacement (V6) .
