Power Steering Wiring Schematics: Hybrid

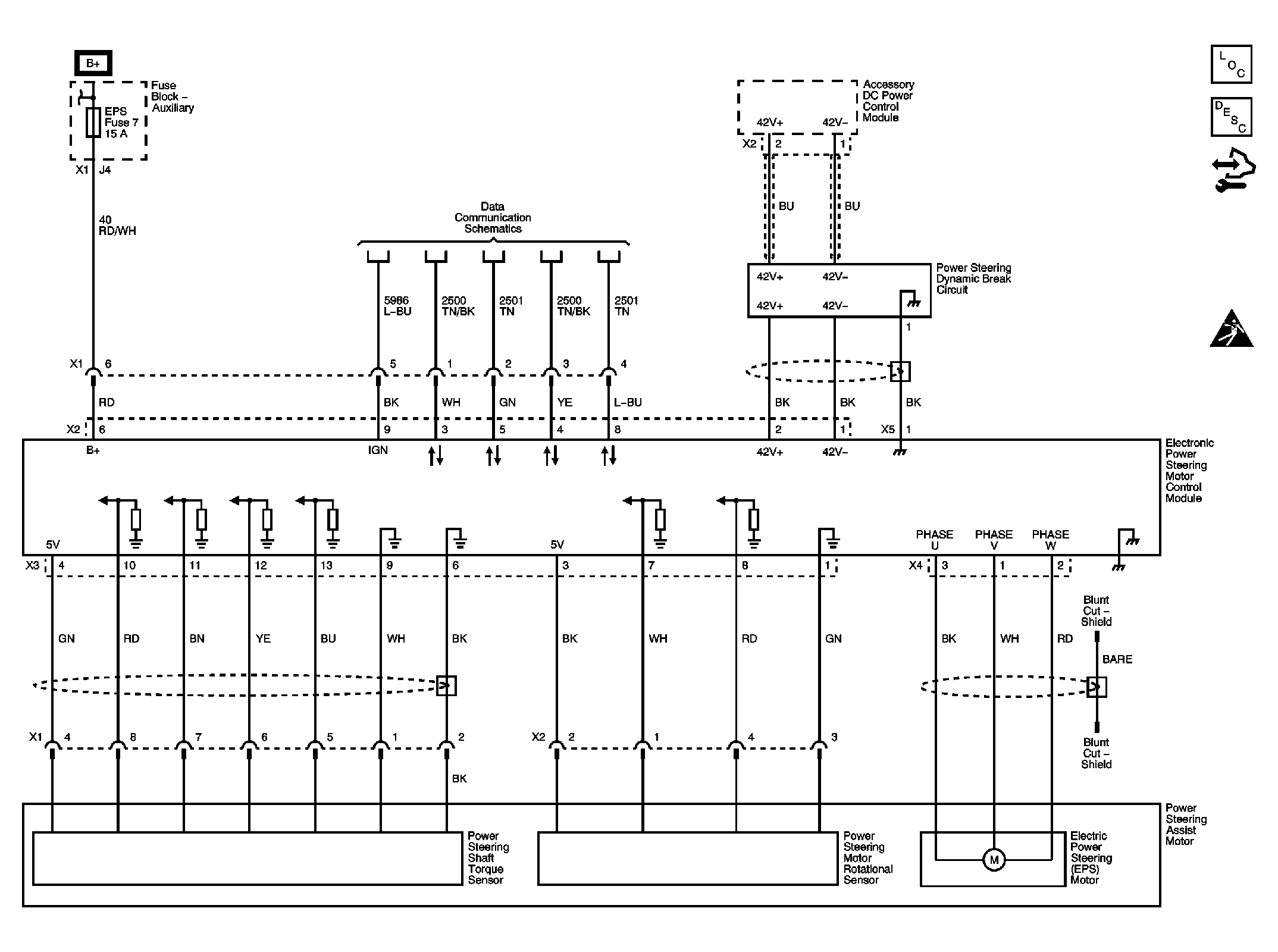

Fig 1: Hybrid Wiring Schematic

GM2399966

Courtesy of GENERAL MOTORS CORP.
