Steering Column Fuse Block
Steering column fuse block is located in back of left instrument panel knee bolster to left of steering column.

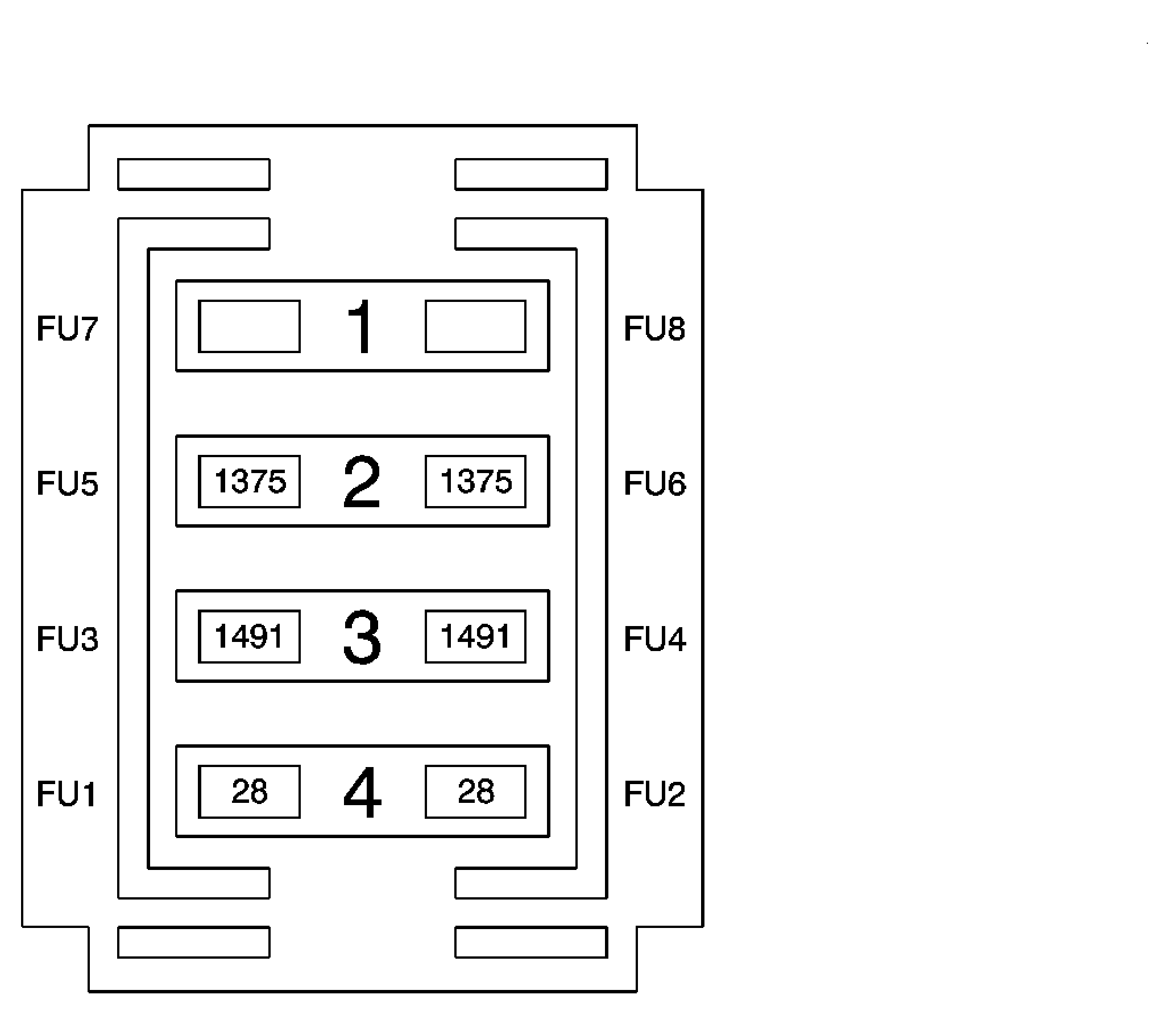

FUSE BLOCK - INLINE STEERING COLUMN FUSE IDENTIFICATION LEGEND
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | - | - | Not Used |
| 2 | Instrument Panel Module | 2A | Remote Radio Control Supply Voltage |
| 3 | Backlight Lamps | 2A | Backlight Lamps Control |
| 4 | Horn | 2A | Horn Relay Control |
