Window Switch - Left Rear

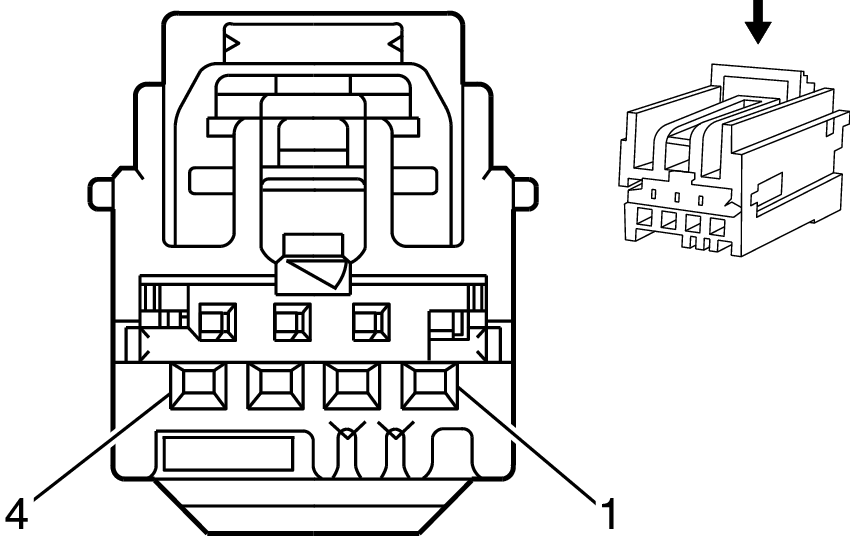

Fig 1: Window Switch - Left Rear Connector End Views
GM1664594Courtesy of GENERAL MOTORS CORP.
Window Switch - Left Rear Connector Part Information

Connector Part Information
  • OEM: 7283-9016-30
  • Service: 19149305
  • Description: 4-Way F CONN 064 (BK)
Terminal Part Information
  • Terminal/Tray: 7116-4618-02/14
  • Core/Insulation Crimp: P/P
  • Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)
Window Switch - Left Rear Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 BK 350 Ground
2 GY 8 Instrument Panel Lamp Supply Voltage
3 PK 5864 Power Window Driver Switch Voltage Reference
4 BN 6710 Power Window Switch Left Rear Signal
