Window Systems Component Views (RHD)

Fig 1: ISRVM & Rear Window Defogger Grid Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlight Sensor
2	Emergency Button (UE1)
3	OnStar® Call Center Button (UE1)
4	Answer/End Call Button (UE1)
5	Cellular Microphone (UE1)
6	Inside Rearview Mirror (ISRVM) On/Off Button
7	Inside Rearview Mirror (ISRVM)
8	Rear Window Defogger Grid
9	Rear Window Wiper Motor

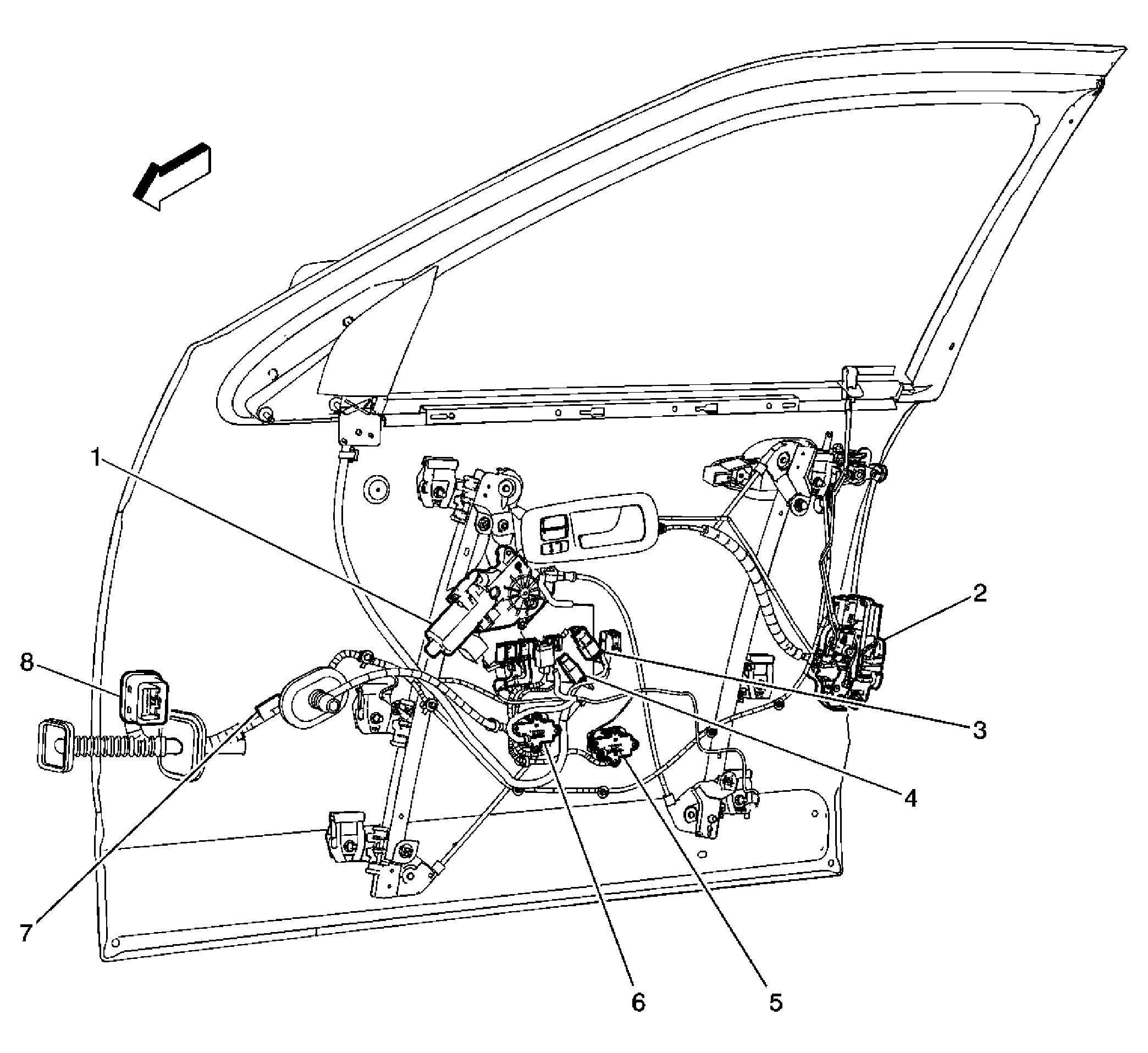

Fig 2: Driver Door Harness Routing Component View

Courtesy of GENERAL MOTORS CORP.

Fig 3: Driver Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror
2	Courtesy Lamp
3	Driver Door Module (DDM)
4	Door Lock Switch
5	Window Lockout Switch
6	Window Switches
7	Speaker - RF Door
8	Outside Rearview Mirror Switch
9	Memory Seat Switch
10	Heated Seat Switches

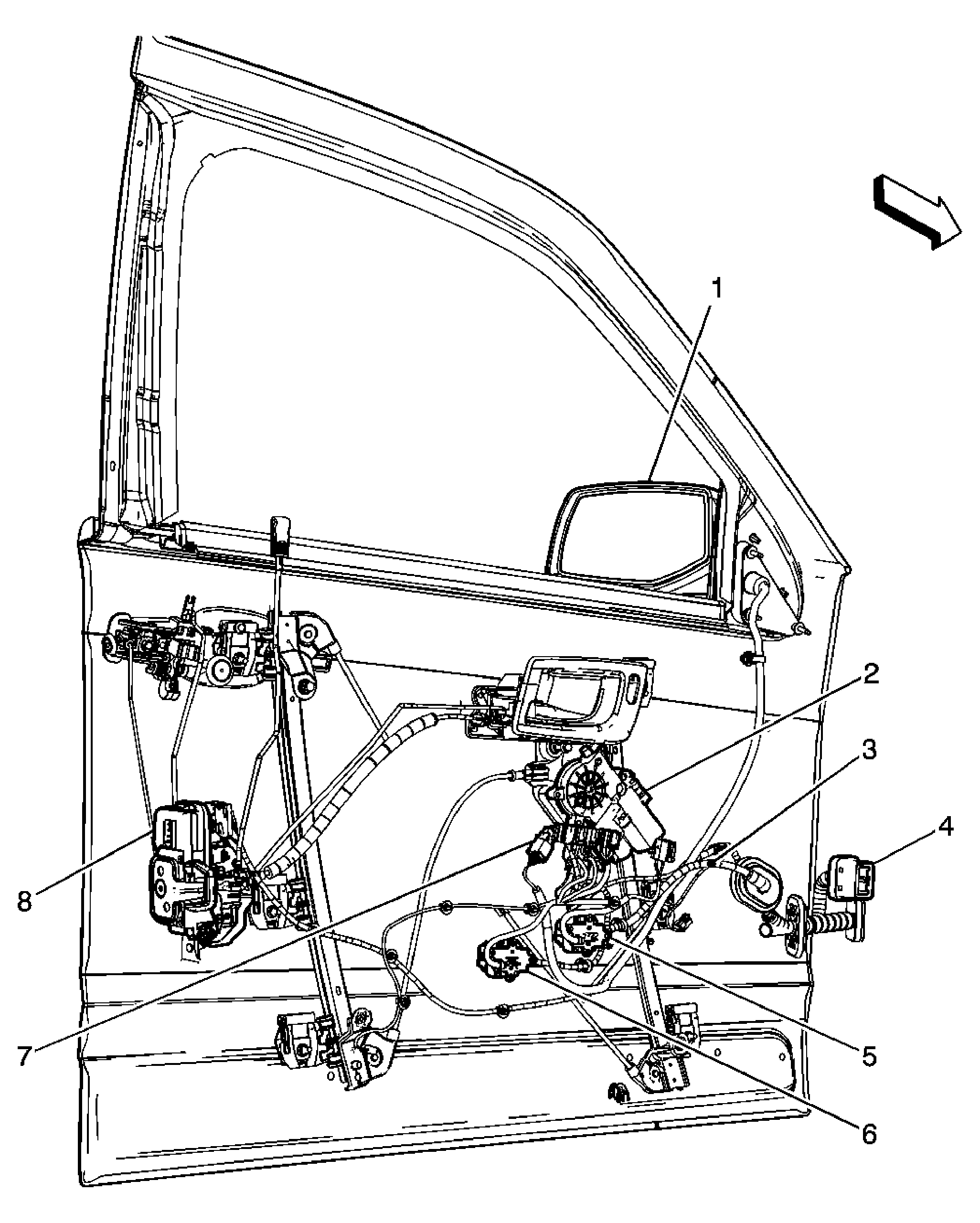

Fig 4: Passenger Door Harness Routing Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror
2	Window Motor
3	S501
4	C500
5	C501
6	C502
7	Outside Rearview Mirror Connector
8	Door Latch Assembly

Fig 5: Passenger Door Component View

Courtesy of GENERAL MOTORS CORP.

Fig 6: Right Rear Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C801
2	Door Latch Assembly - Right Rear
3	Window Motor - RR
4	Speaker - RR Door
5	C800
6	S800
7	Window Switch - RR

Fig 7: Left Rear Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - Left Rear
2	S701
3	C700
4	Speaker - Left Rear Door
5	Window Motor - Left Rear
6	C701
7	Door Latch Assembly - Left Rear
