Window Systems Component Views (LHD)

Fig 1: ISRVM & Rear Window Defogger Grid Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlight Sensor
2	Emergency Button (UE1)
3	OnStar® Call Center Button (UE1)
4	Answer/End Call Button (UE1)
5	Cellular Microphone (UE1)
6	Inside Rearview Mirror (ISRVM) On/Off Button
7	Inside Rearview Mirror (ISRVM)
8	Rear Window Defogger Grid
9	Rear Window Wiper Motor

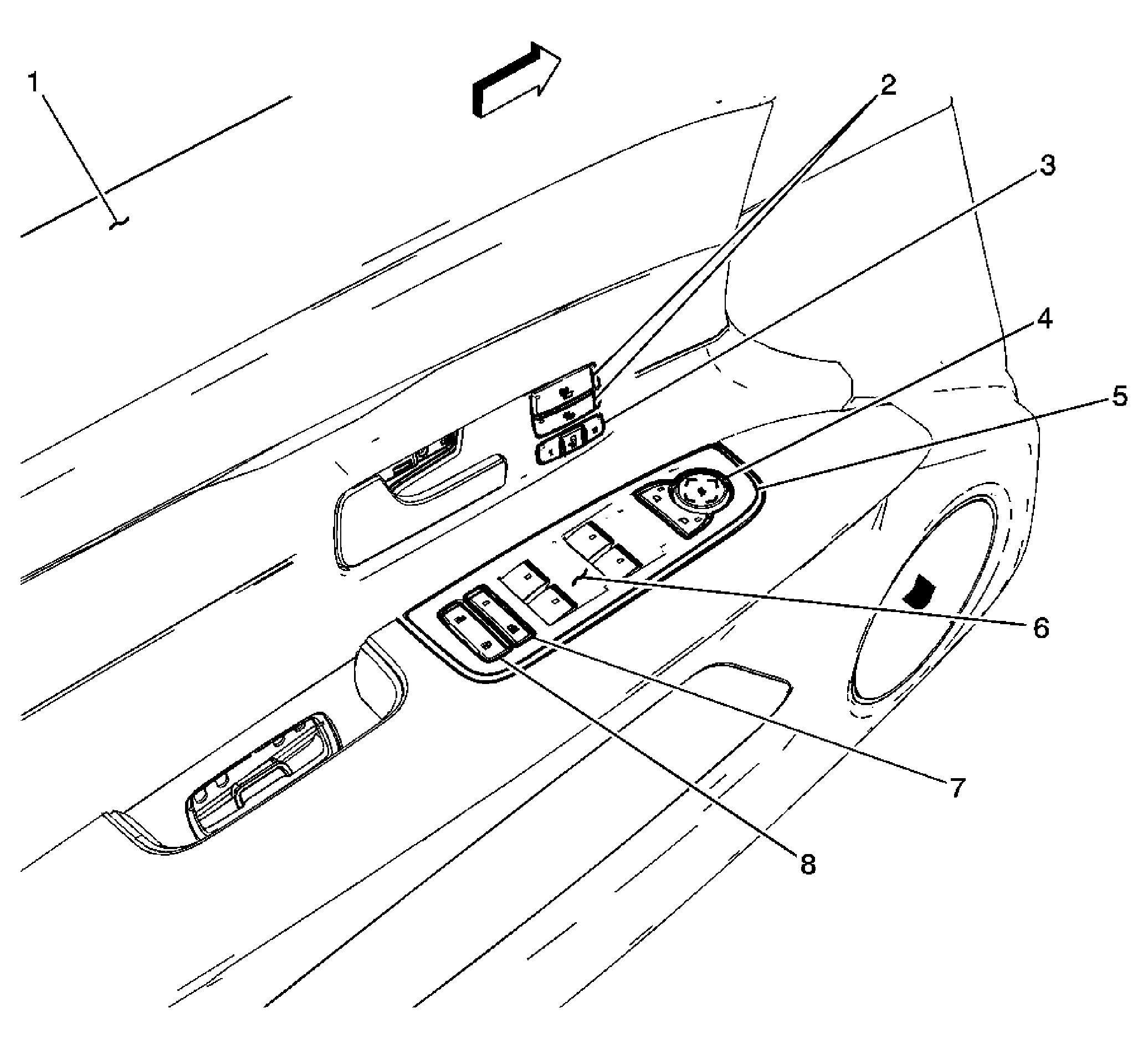

Fig 2: Driver Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Door
2	Heated Seat Switches (KA1)
3	Memory Seat Switch (A45)
4	Outside Rearview Mirror (OSRVM) Switch
5	Driver Door Module (DDM)
6	Window Switches
7	Window Lockout Switch
8	Door Lock/Unlock Switch

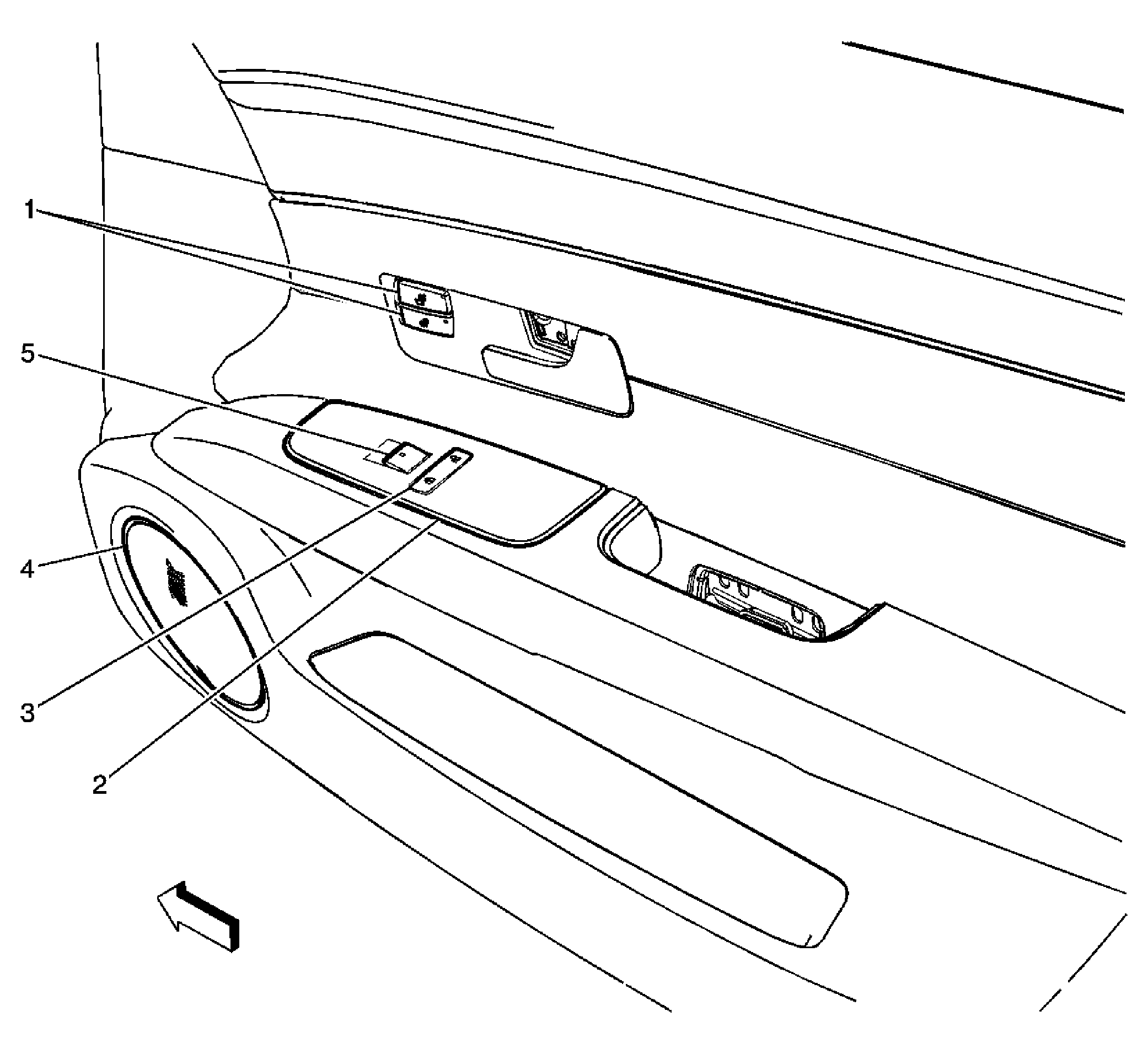

Fig 3: Front Passenger Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Switch - Front Passenger (KA1)
2	Front Passenger Door Module (FPDM)
3	Door Lock Switch - Front Passenger
4	Speaker - RF Door
5	Window Switch - Front Passenger

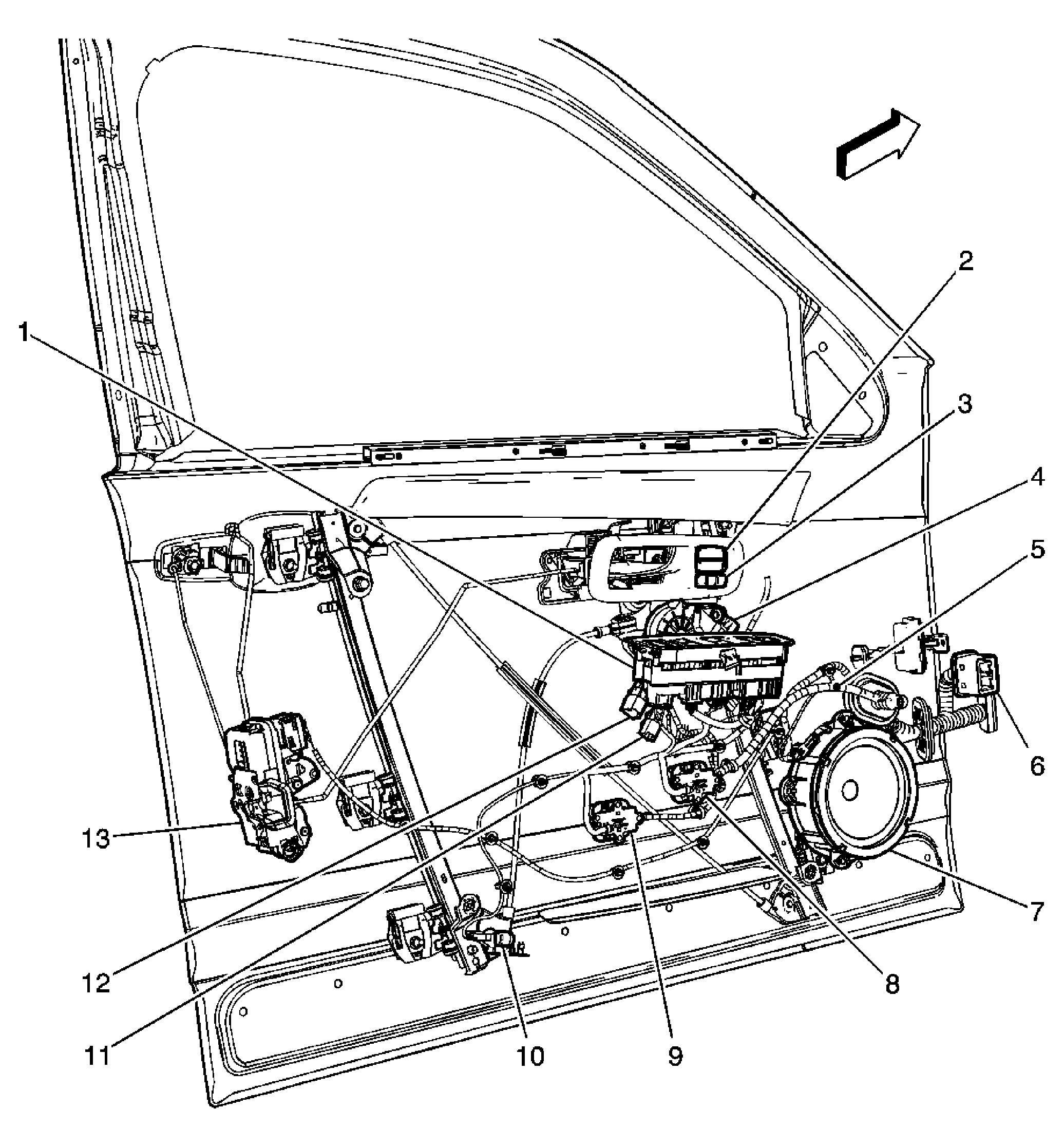

Fig 4: Driver Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Door Module (DDM)
2	Heated Seat Switch - Driver (KA1)
3	Memory Seat Switch (A45)
4	Window Motor - Driver
5	S501
6	C500
7	Speaker - LF Door
8	C501
9	C502
10	Courtesy Lamp - Left Front Door
11	Outside Rearview Mirror (OSRVM) - Driver Side C1
12	Outside Rearview Mirror (OSRVM) - Driver Side C2
13	Door Latch Assembly - Driver

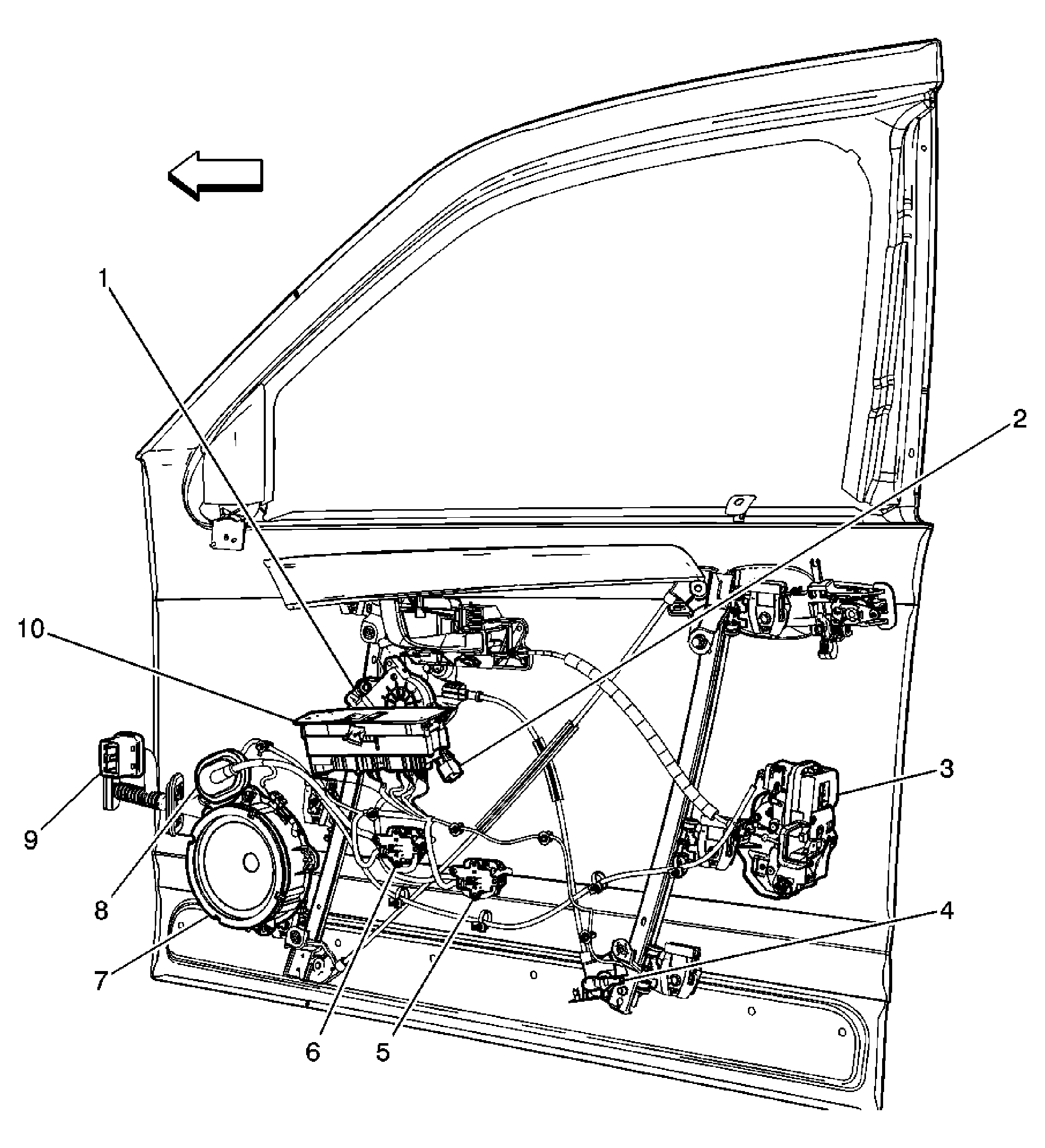

Fig 5: Passenger Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Motor - Passenger
2	Outside Rearview Mirror (OSRVM) - Passenger Side
3	Door Latch Assembly - Passenger
4	Courtesy Lamp - Right Front Door
5	C602
6	C601
7	Speaker - RF Door
8	S601
9	C600
10	Front Passenger Door Module (FPDM)

Fig 6: Right Rear Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C801
2	Door Latch Assembly - Right Rear
3	Window Motor - RR
4	Speaker - RR Door
5	C800
6	S800
7	Window Switch - RR

Fig 7: Left Rear Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - Left Rear
2	S701
3	C700
4	Speaker - Left Rear Door
5	Window Motor - Left Rear
6	C701
7	Door Latch Assembly - Left Rear
