Installation Procedure

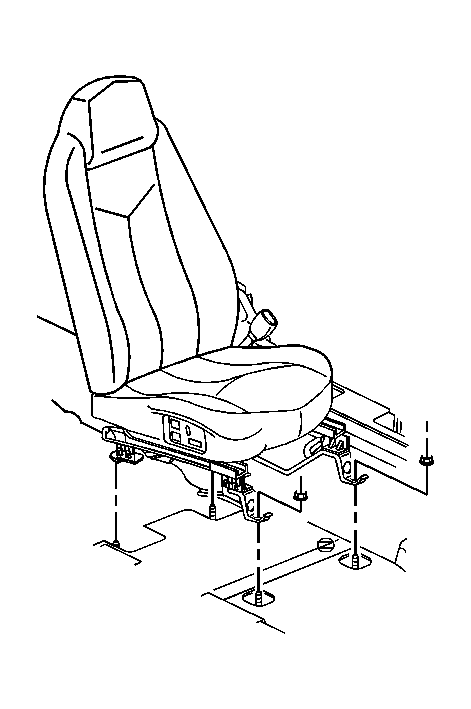

    Fig 1: View Of Seat & Components
    GM1247931Courtesy of GENERAL MOTORS CORP.
  1. Position the seat on the rear studs.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the seatbelt and the retaining nut to the seat stud.

    Tighten:  Tighten the nut to 41 N.m (31 lb ft).

  3. Lift the front of the seat and connect the electrical connector.
  4. Install the nut to the rear inboard stud.
  5. Install the nut to the rear outboard stud.

    Tighten:  Tighten the nuts to 50 N.m (37 lb ft).

  6. Move the seat rearward.
  7. Install the nuts to the front adjuster legs.

    Tighten:  Tighten the nuts to 50 N.m (37 lb ft).

  8. Install the adjuster leg covers.
  9. Secure the covers with push pins.
  10. Enable the SIR system. Refer to SIR Disabling and Enabling or to SIR Disabling and Enabling in SIR.

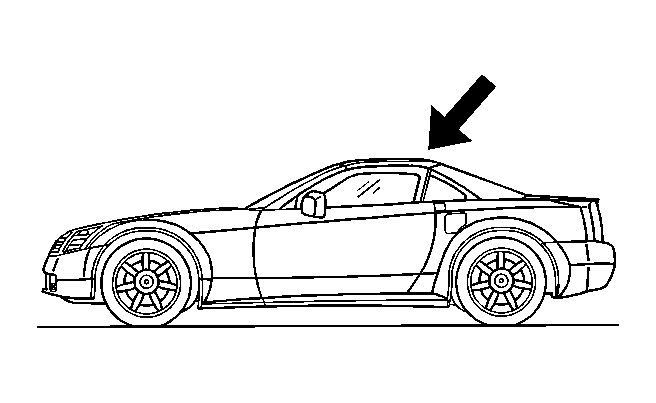

    11. Fig 2: View Of Folding Top
    GM1294372Courtesy of GENERAL MOTORS CORP.
  11. Remove the protective cover and raise the folding top.
