Removal Procedure

  1. Remove the seat assembly. Refer to Seat Replacement .
  2. Remove the seat back cushion. Refer to Driver Seat Back Cushion Pad Replacement  or to Driver Seat Back Cushion Pad Replacement .
  3. Remove the hook and loop at the end of the seat cushion cover.
  4. Remove the seat belt buckle pretensioner. Refer to Seat Belt Buckle Pretensioner Replacement .
  5. Disconnect the wire harness retainers from the seat back.
    6. Fig 1: View Of Seat Hinge Nuts & Bolts
    GM71219Courtesy of GENERAL MOTORS CORP.
  6. Remove the hinge nuts and bolts.
    7. Fig 2: View Of Seat Back Frame & Lower Seat Assembly
    GM1289064Courtesy of GENERAL MOTORS CORP.
  7. Remove the seat back frame from the lower seat assembly.

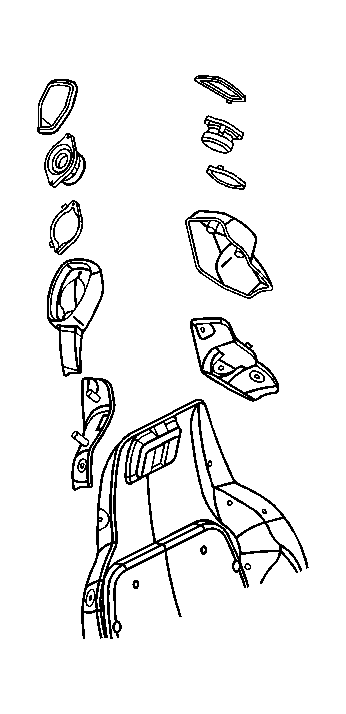

    8. Fig 3: View Of Driver Seat Speaker Components
    GM1292641Courtesy of GENERAL MOTORS CORP.
  8. Transfer the seat speakers as required. Refer to Driver Seat Speaker Replacement or to Passenger Seat Speaker Replacement .
