Front Seat Back Frame Replacement

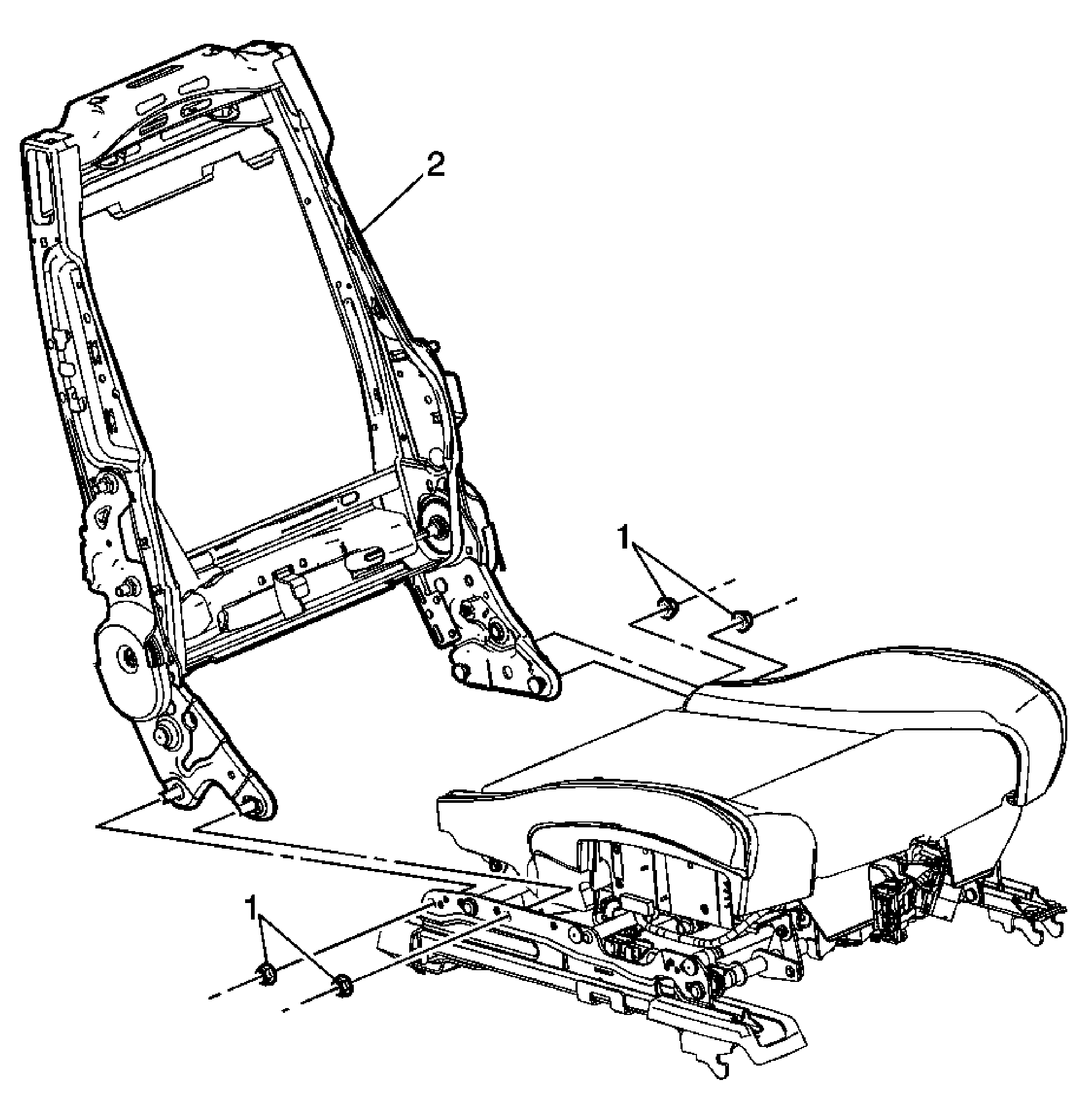

Fig 1: Front Seat Back Frame

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the seat. Refer to Bucket Seat Replacement . Remove the seat back recliner covers. Refer to Front Seat Riser Finish Cover Replacement . Remove the seat back panel. Refer to Front Seat Back Panel Replacement . Remove the head restraint. Refer to Front Seat Head Restraint Replacement . Remove the head restraint guides. Refer to Front Seat Head Restraint Guide Replacement . Remove the seat back speakers. Refer to Front Seat Speaker Replacement . Remove the seat back cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement . Remove the seat back finish panels. Refer to Seat Back Cushion Side Bolster Panel Replacement .
1	Seat Back Frame Nut (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 30 N.m (22 lb ft)
2	Seat Back Frame Tip: Transfer any remaining parts if replacing the seat back frame.

Callout

Component Name

Preliminary Procedure

Remove the seat. Refer to Bucket Seat Replacement .
Remove the seat back recliner covers. Refer to Front Seat Riser Finish Cover Replacement .
Remove the seat back panel. Refer to Front Seat Back Panel Replacement .
Remove the head restraint. Refer to Front Seat Head Restraint Replacement .
Remove the head restraint guides. Refer to Front Seat Head Restraint Guide Replacement .
Remove the seat back speakers. Refer to Front Seat Speaker Replacement .
Remove the seat back cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
Remove the seat back finish panels. Refer to Seat Back Cushion Side Bolster Panel Replacement .

Seat Back Frame Nut (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 30 N.m (22 lb ft)

Seat Back Frame
Tip: Transfer any remaining parts if replacing the seat back frame.
