Automatic Level Control Suspension Component Views

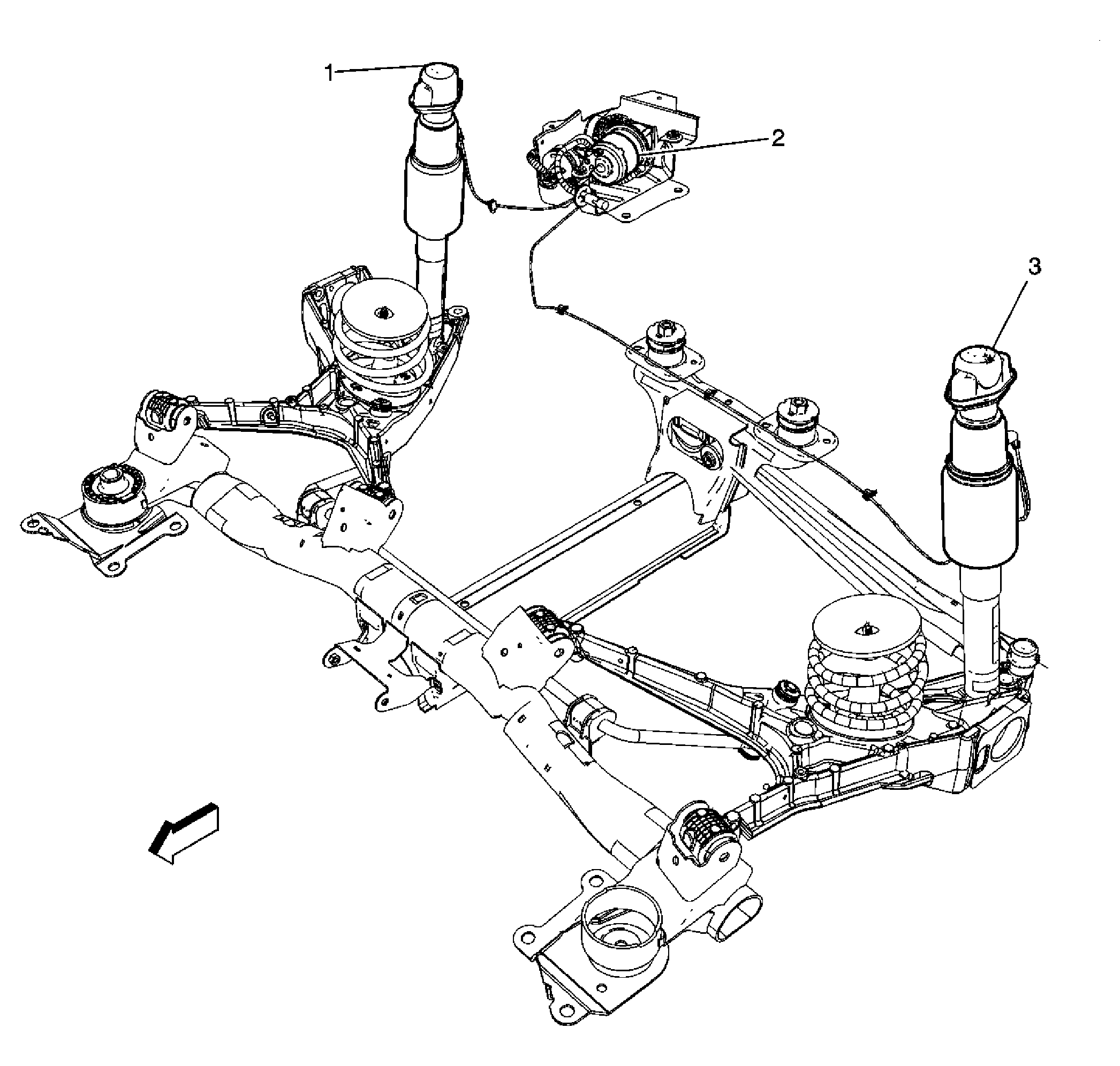

Fig 1: Rear Suspension Components
GM1657276Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Suspension Damper - RR (F55)
2 Air Pump
3 Suspension Damper - LR (F55)
