Installation Procedure

Install the power steering fluid reservoir to the vehicle.
Install the following components to the power steering fluid reservoir:
- The power steering reservoir outlet pipe/hose. Refer to Power Steering Reservoir Outlet Pipe/Hose Replacement .
- The power steering return hose. Refer to Power Steering Return Hose Replacement .

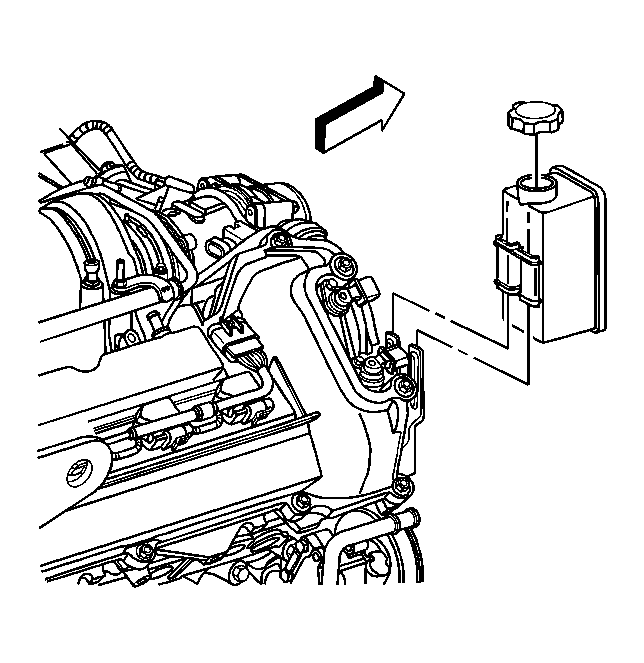

Fig 1: Power Steering Fluid Reservoir

Courtesy of GENERAL MOTORS CORP.

Install the power steering fluid reservoir to the power steering fluid reservoir bracket.
Bleed the power steering system. Refer to Bleeding the Power Steering System .
