Removal Procedure

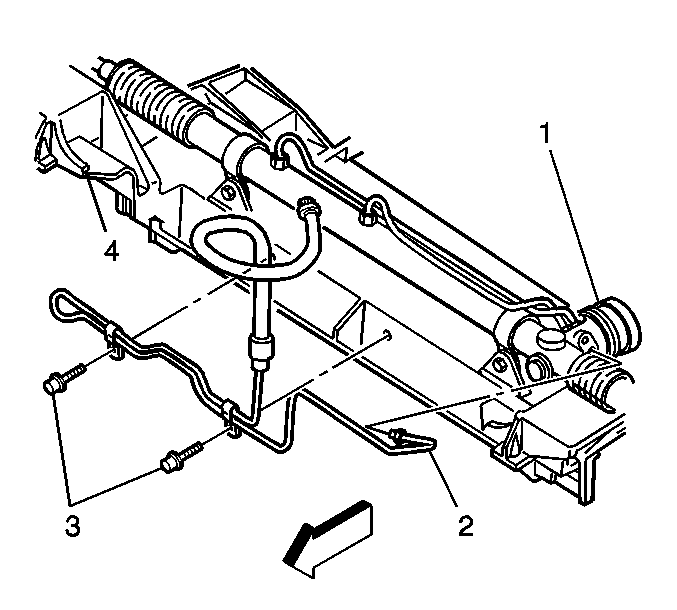

    Fig 1: Power Steering Gear, Power Steering Return Hose, Mounting Bolts & Crossmember
    GM663848Courtesy of GENERAL MOTORS CORP.
  1. Remove the power steering return hose (2) from the power steering fluid reservoir.
  2. Raise the vehicle on a hoist. Refer to Lifting and Jacking the Vehicle in General Information.
  3. Remove the power steering return hose (2) from the power steering gear (1).
  4. Remove the power steering return hose mounting bolts (3) from the crossmember (4).
  5. Remove the power steering return hose (2) from the vehicle.
