Theft Deterrent System Component Views

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

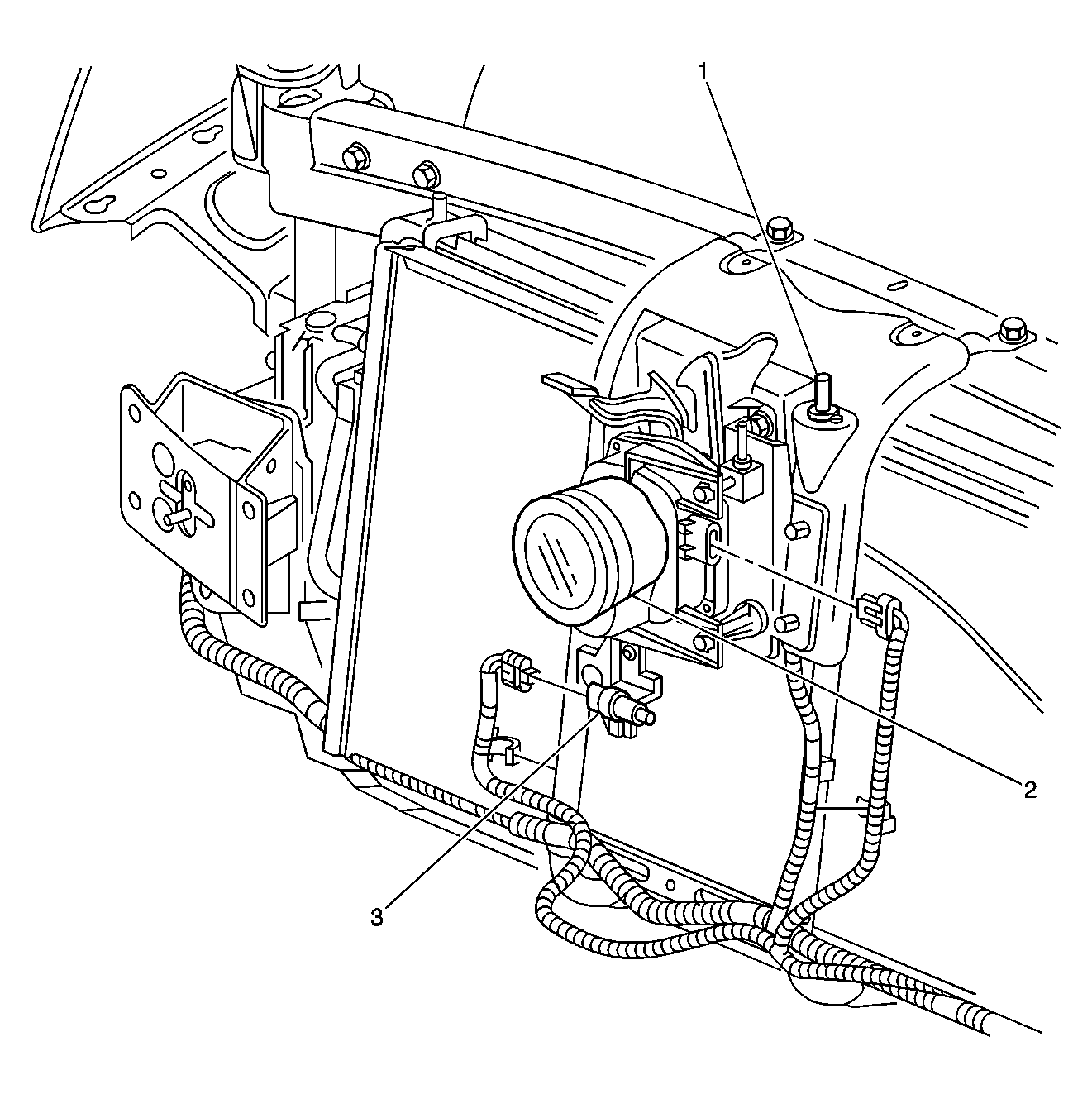

Fig 1: Behind the Front Grille, at the Center of the Radiator Core Support Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (Export)
2	Night Vision Camera
3	Ambient Air Temperature Sensor

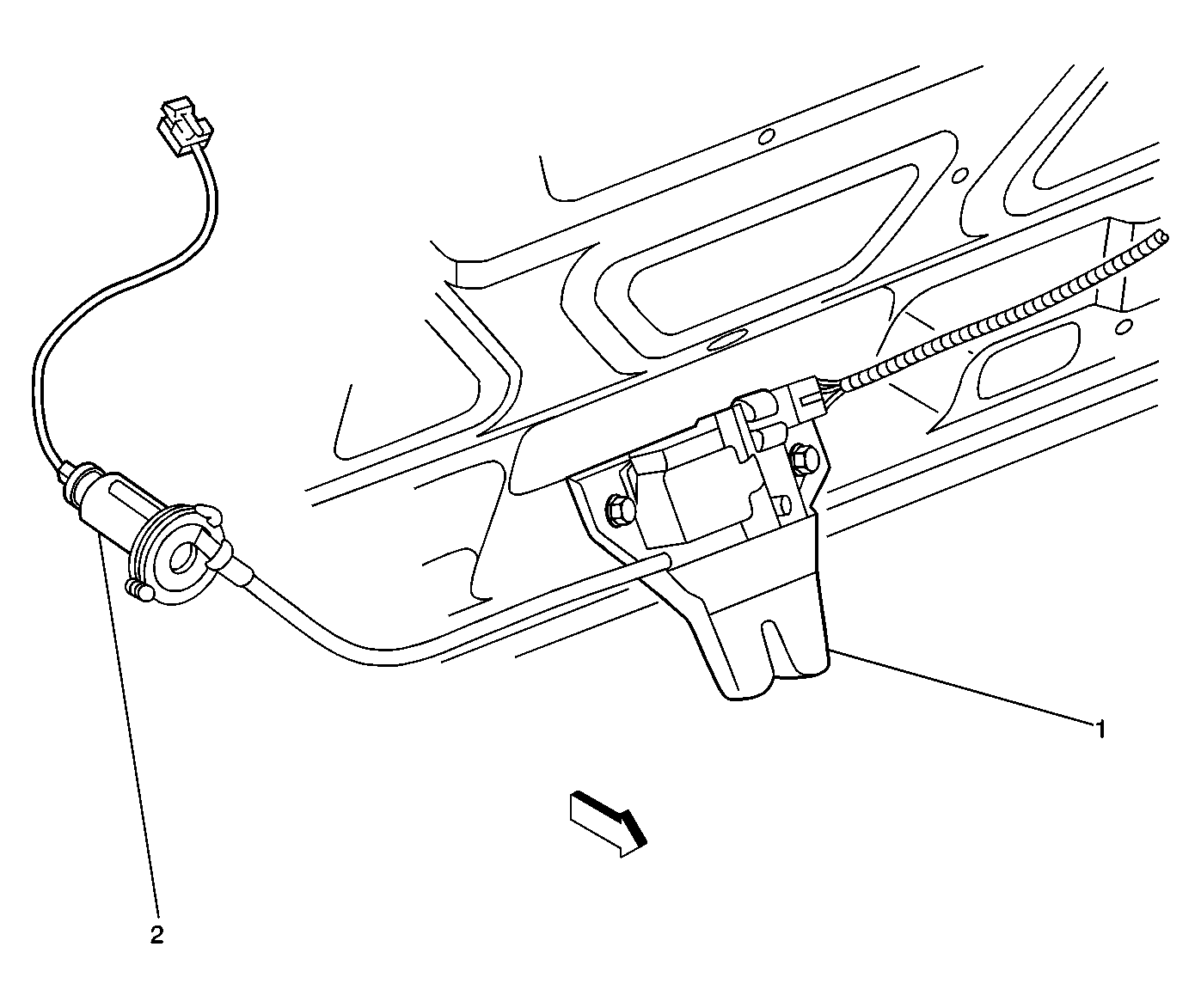

Fig 2: Center Rear of the Rear Compartment Lid Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Release Actuator
2	Rear Compartment Lid Tamper Switch

Fig 3: Left Front of the Passenger Compartment, in the Steering Column Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch
2	Theft Deterrent Control Module
3	Ignition Lock Cylinder Control Actuator
