Installation Procedure

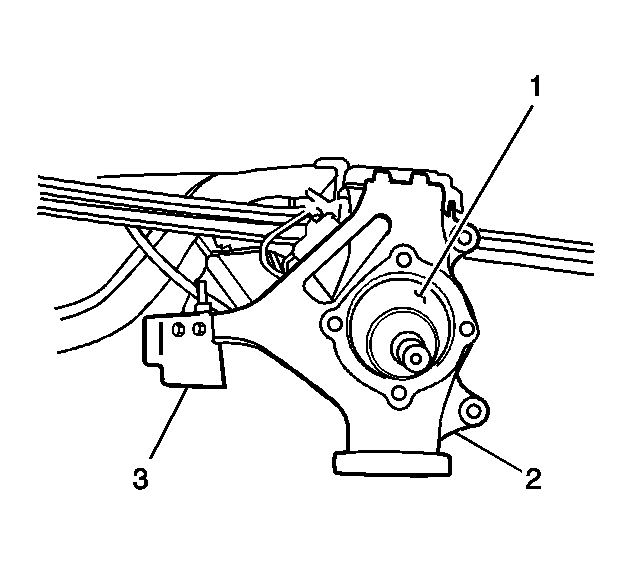

    Fig 1: View Of Steering Knuckle
    GM749331Courtesy of GENERAL MOTORS CORP.
  1. Install the steering knuckle (2) to the vehicle.
  2. Install the upper ball joint. Refer to Upper Ball Joint Replacement .
  3. Install the lower ball joint. Refer to Lower Ball Joint Replacement .

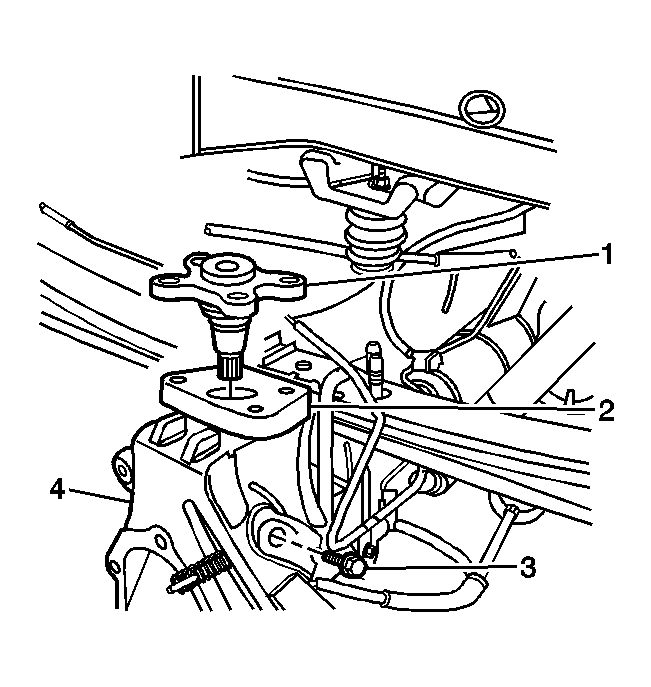

    4. Fig 2: View Of Upper Ball Joint & Park Brake Cable Retaining Bolt
    GM748894Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the park brake cable retaining bolt (3) to the steering knuckle.

    Tighten:  Tighten the bolt to 65 N.m (48 lb ft).

  5. Install the wheel hub and bearing. Refer to Wheel Hub and Bearing Replacement .

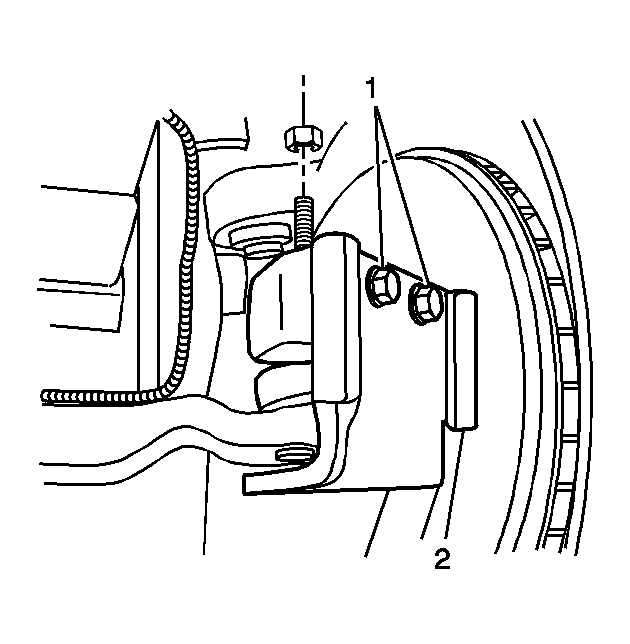

    6. Fig 3: View Of Outer Tie Rod Bracket & Retaining Bolts
    GM742190Courtesy of GENERAL MOTORS CORP.
  6. Install the outer tie rod retaining nut to the steering knuckle.

    Tighten:  Tighten the nut to 55 N.m (40 lb ft).

  7. Install the outer tie rod retaining bracket (2).

    Tighten:  Tighten the bracket to 65 N.m (48 lb ft).

  8. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  9. Lower the vehicle.
  10. Perform a four wheel alignment. Refer to Measuring Wheel Alignment (w/Rear Wheel Steering) or Measuring Wheel Alignment (w/o Rear Wheel Steering) in Wheel Alignment.
