Installation Procedure

  1. Install the park brake release lever handle to the knee bolster.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the park brake release lever mounting bolt.

    Tighten:  Tighten to 25 N.m (18 lb ft).

  3. Connect the park brake release cable to the lever.

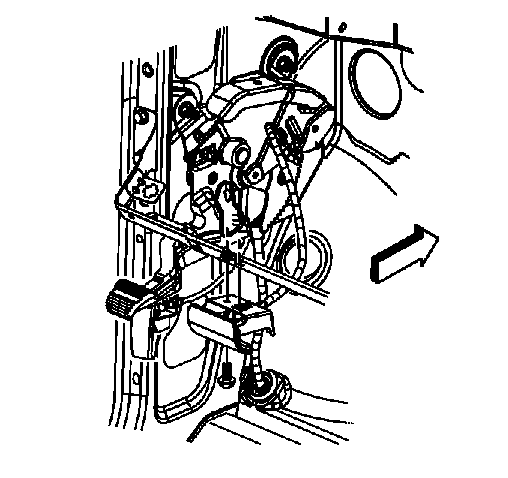

    4. Fig 1: View Of Park Brake Release Lever Handle & Bolt
    GM376009Courtesy of GENERAL MOTORS CORP.
