Right Cylinder Head Rear Face Thread Repair Specifications

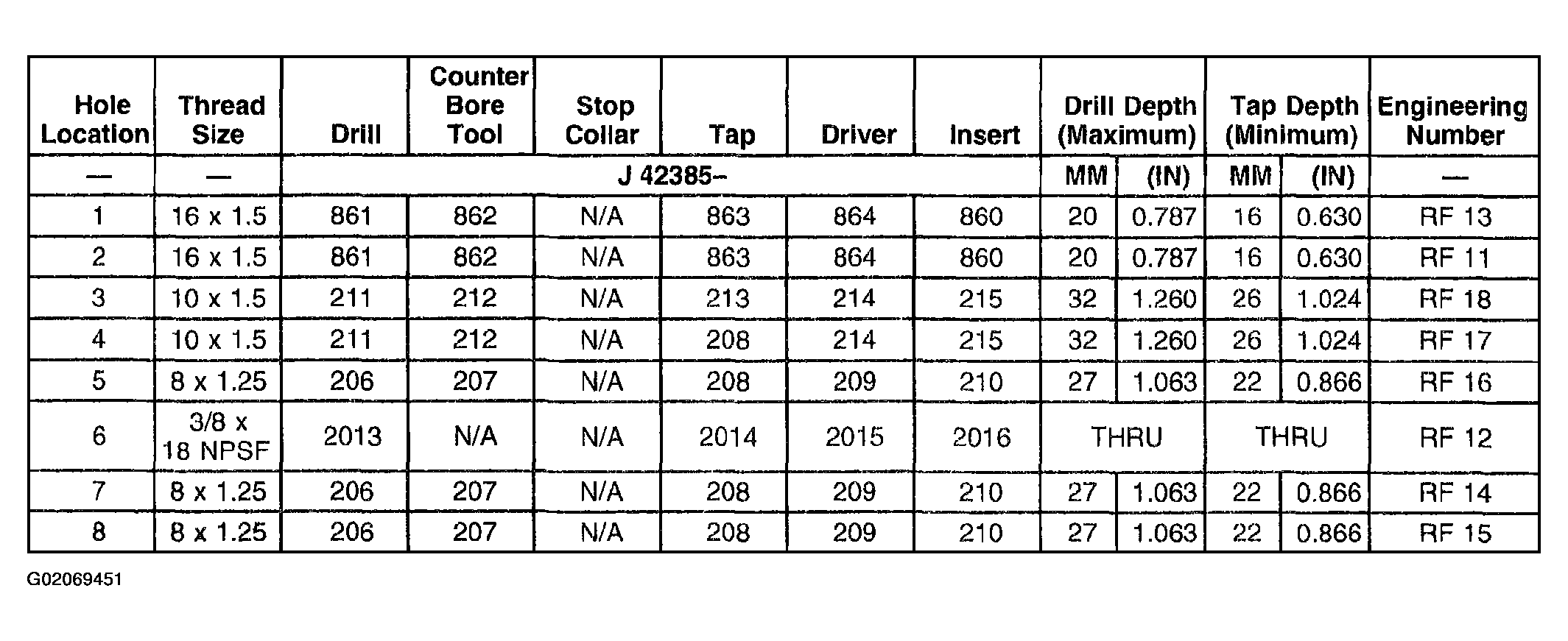

Fig 1: Right Cylinder Head Rear Face Thread Repair Specifications

G02069451

Courtesy of GENERAL MOTORS CORP.
