Left Cylinder Head Camshaft Cover Face Thread Repair Specifications

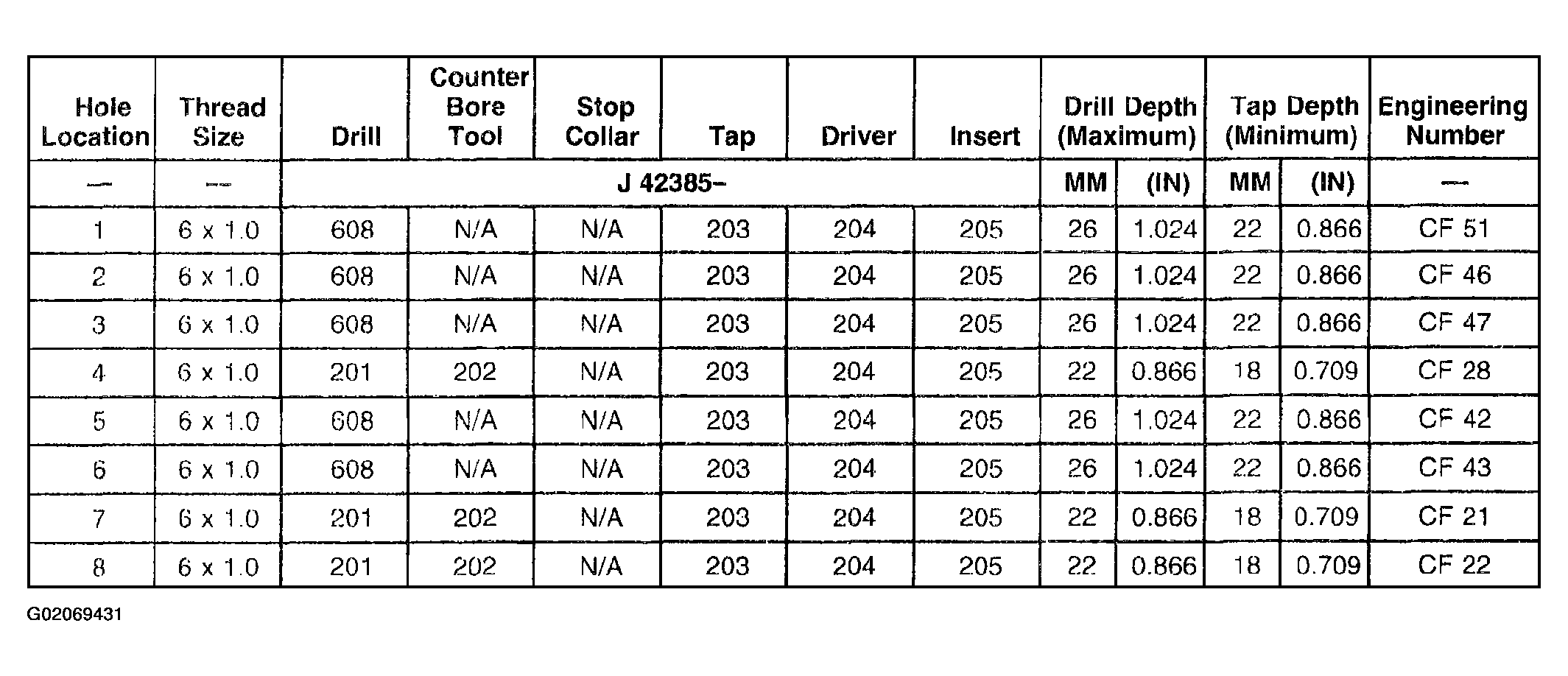

Fig 1: Left Cylinder Head Camshaft Cover Face Thread Repair Specifications (1 Of 2)
G02069431Courtesy of GENERAL MOTORS CORP.

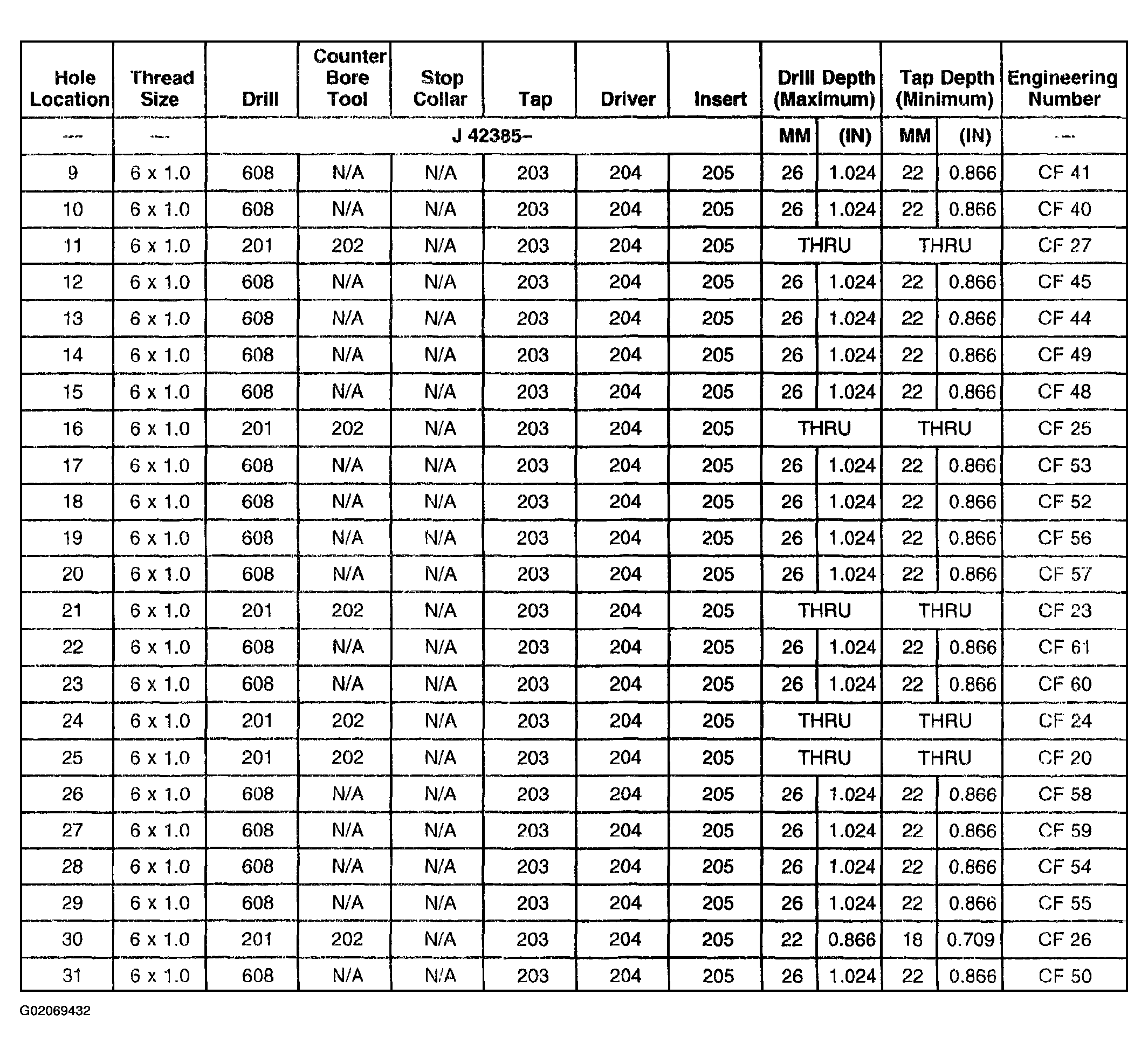

Fig 2: Left Cylinder Head Camshaft Cover Face Thread Repair Specifications (2 Of 2)
G02069432Courtesy of GENERAL MOTORS CORP.
