Ignition Module Removal - Left

  1. Remove the ignition coil assembly bolts.
  2. Remove the ignition coil assembly.

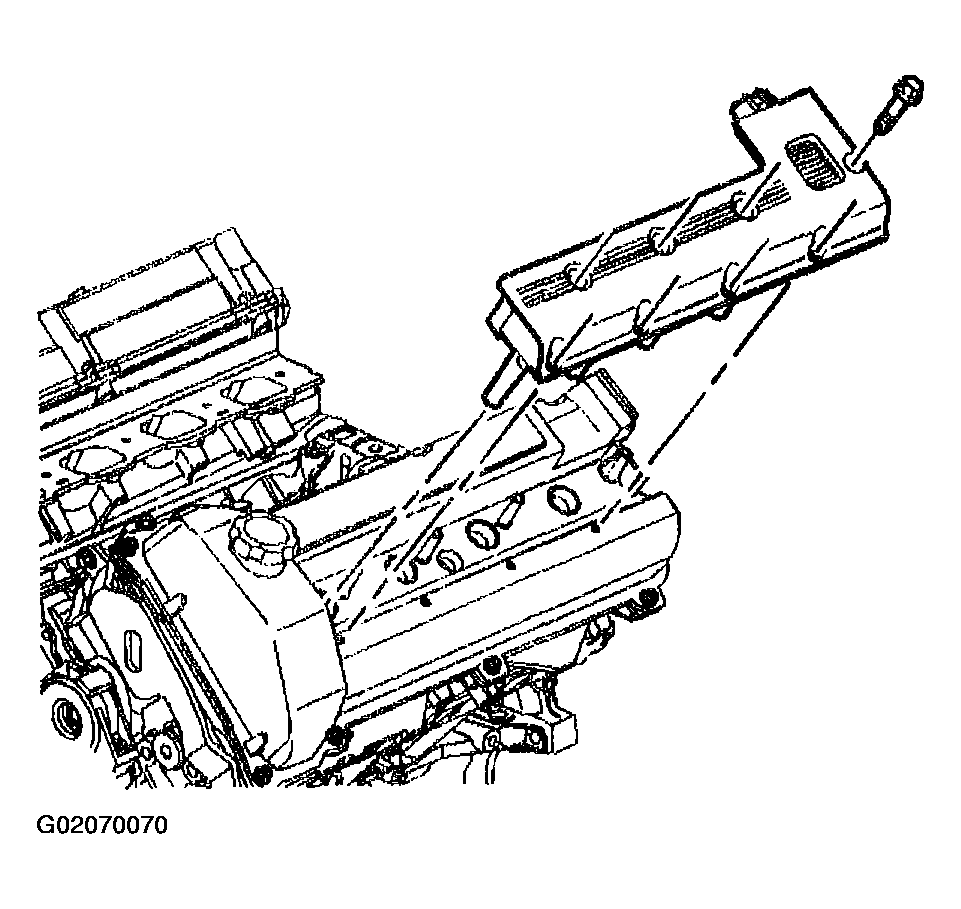

    Fig 1: Removing Ignition Coil Assembly & Bolts
    G02070070Courtesy of GENERAL MOTORS CORP.
  3. Remove the left spark plugs.

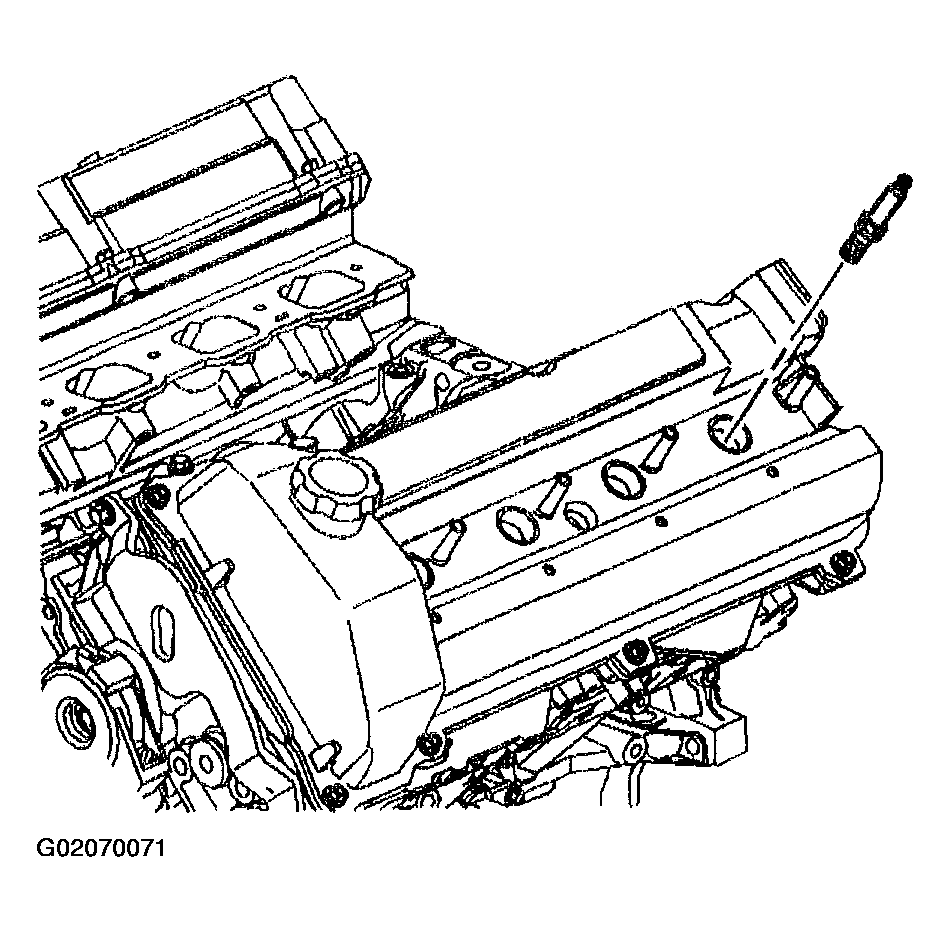

    Fig 2: Removing Spark Plug
    G02070071Courtesy of GENERAL MOTORS CORP.
  4. Remove the spark plug boots.

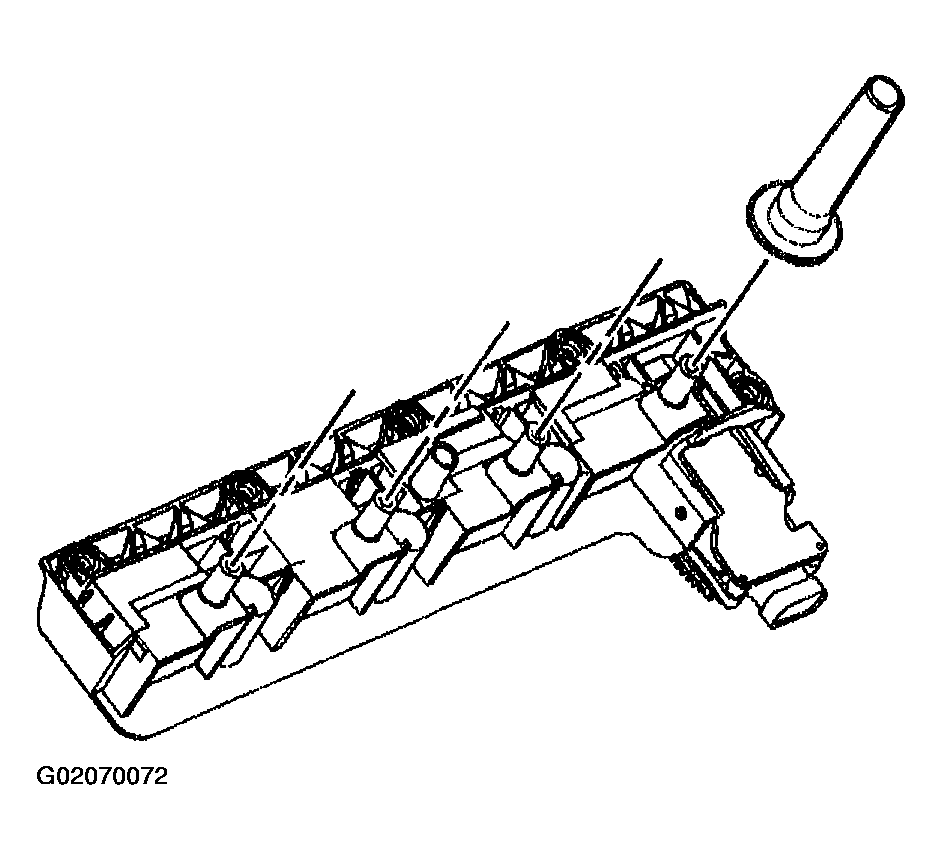

    Fig 3: Removing Spark Plug Boots
    G02070072Courtesy of GENERAL MOTORS CORP.
