Memory Seat Feature Inoperative

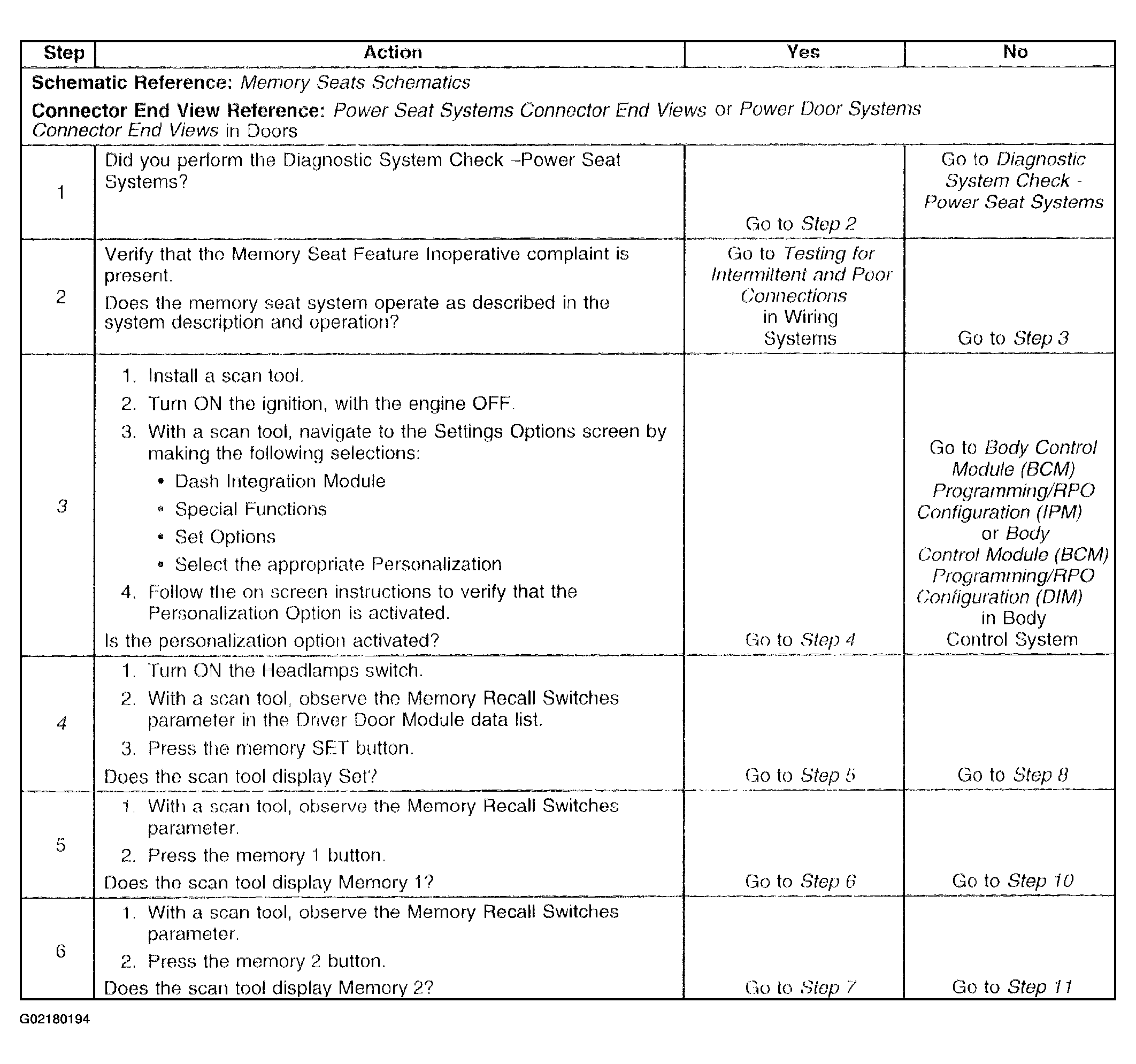

Fig 1: Memory Seat Feature Inoperative (Steps 1 - 6)
G02180194Courtesy of GENERAL MOTORS CORP.

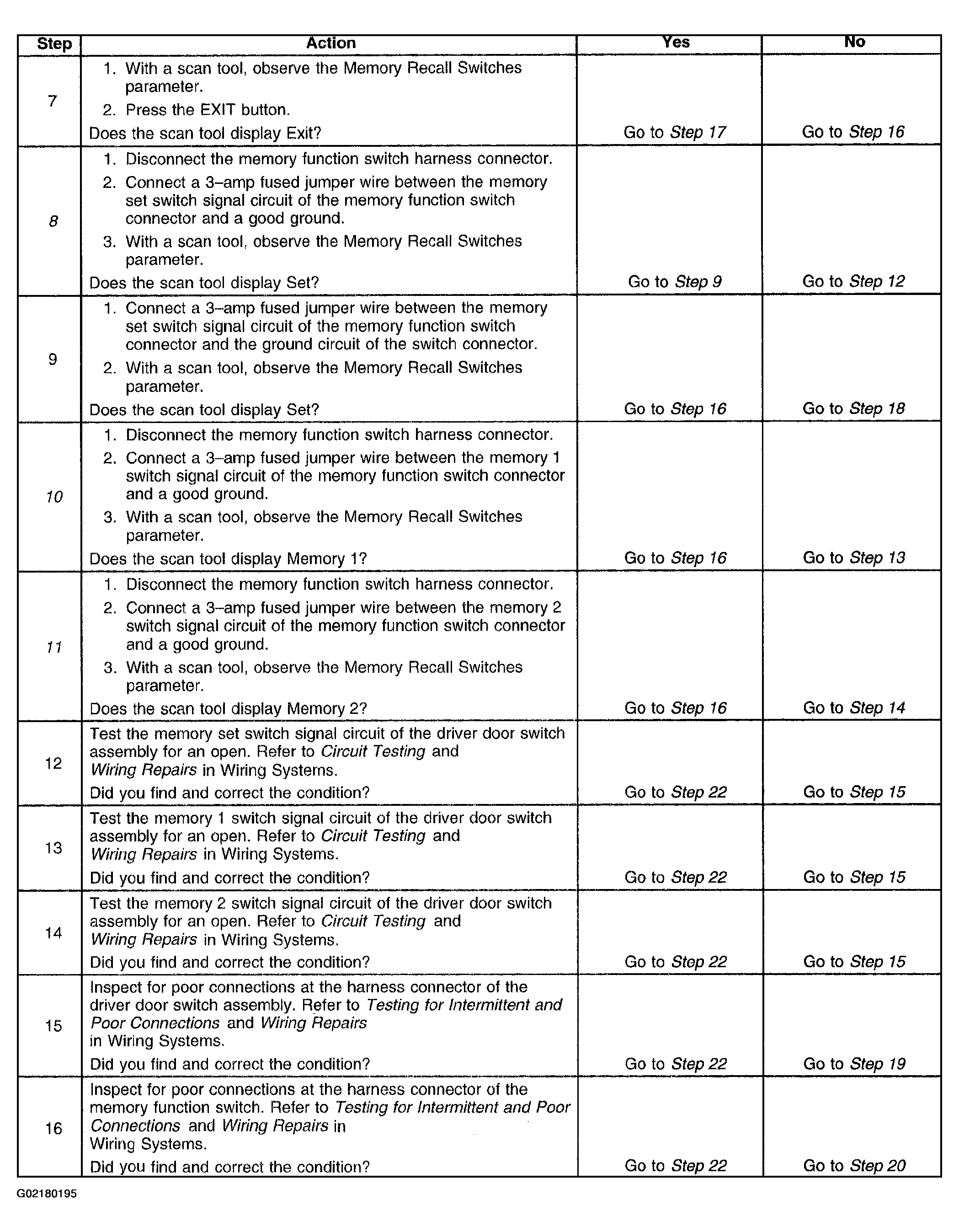

Fig 2: Memory Seat Feature Inoperative (Steps 7 - 16)
G02180195Courtesy of GENERAL MOTORS CORP.

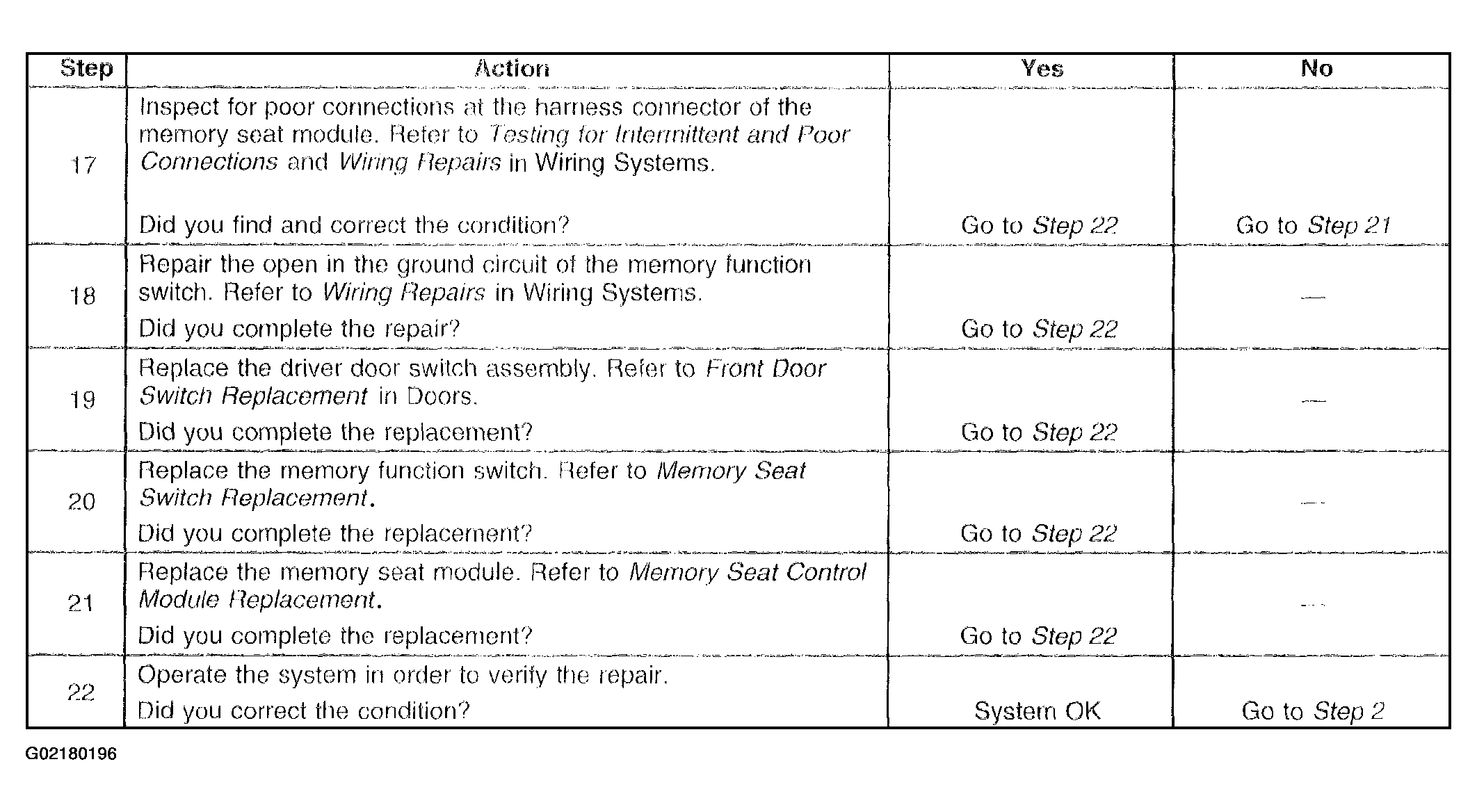

Fig 3: Memory Seat Feature Inoperative (Steps 17 - 22)
G02180196Courtesy of GENERAL MOTORS CORP.
