Removal Procedure

  1. Remove the ignition lock cylinder. Refer to IGNITION SWITCH LOCK CYLINDER REPLACEMENT (RHD)  or IGNITION SWITCH LOCK CYLINDER REPLACEMENT (LHD)  in Instrument Panel Gages and Console.
  2. Remove the bezel from the ignition lock cylinder, by releasing the retainers.

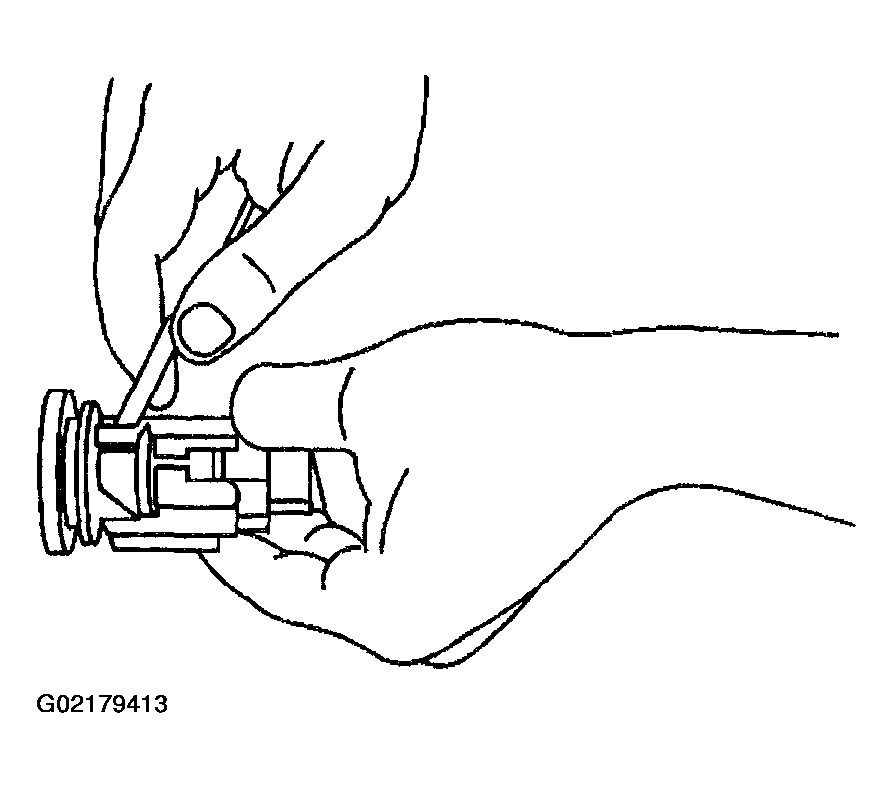

    Fig 1: Removing Bezel From Ignition Lock Cylinder
    G02179413Courtesy of GENERAL MOTORS CORP.
  3. Slide the reader/exciter (4) from the ignition lock cylinder housing (1).

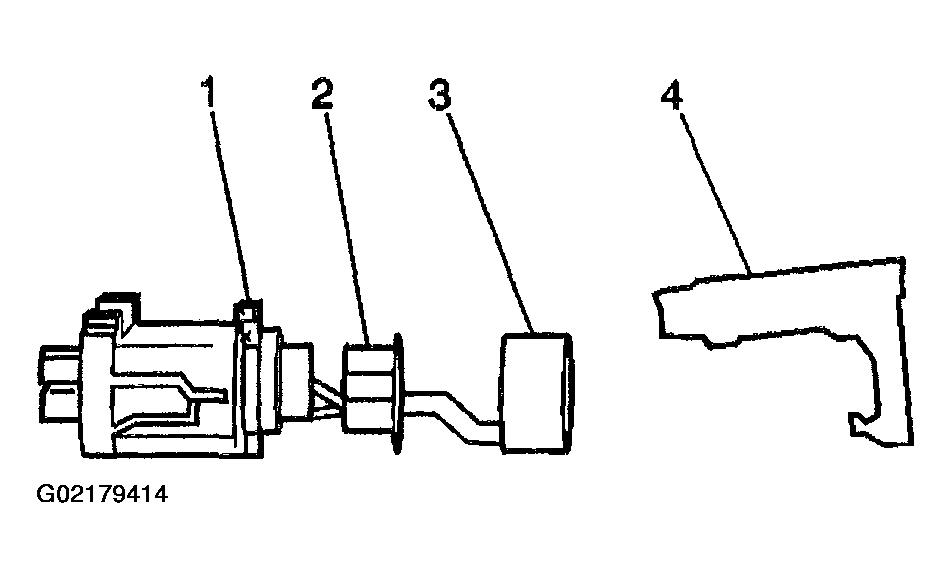

    Fig 2: View Of Ignition Lock Cylinder Components
    G02179414Courtesy of GENERAL MOTORS CORP.
