Repair and Diagnosis
>>
Accessories & Equipment
>>
Wiper/Washer Systems
>>
Wiper System And Washer System
>>
Component Locator
>>
Wiper/Washer System Component Views
>>
Wiper Washer System Sub-System
Wiper Washer System Sub-System

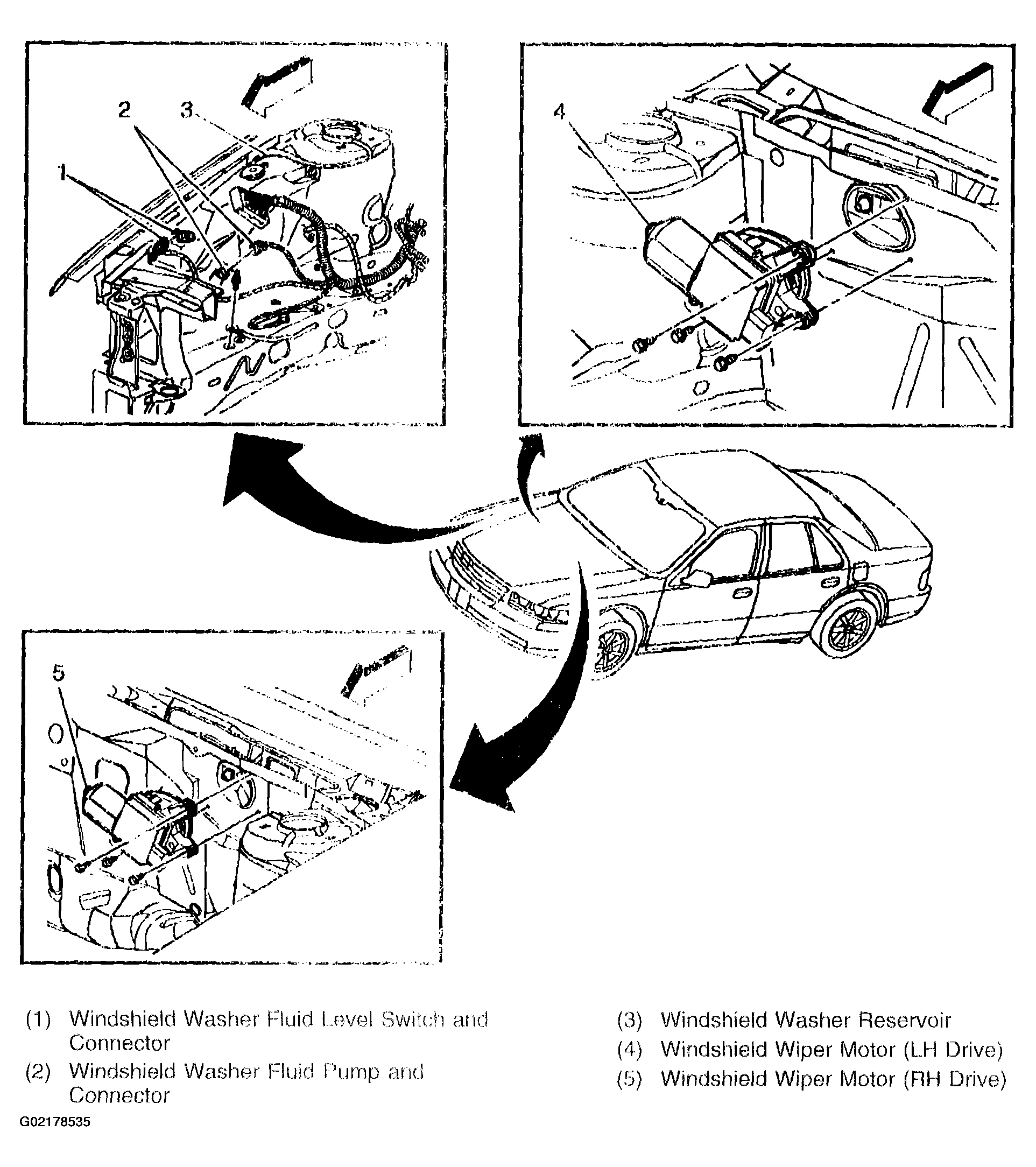

Fig 1: Wiper Washer System Sub-System Component View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
