Navigation System Schematics

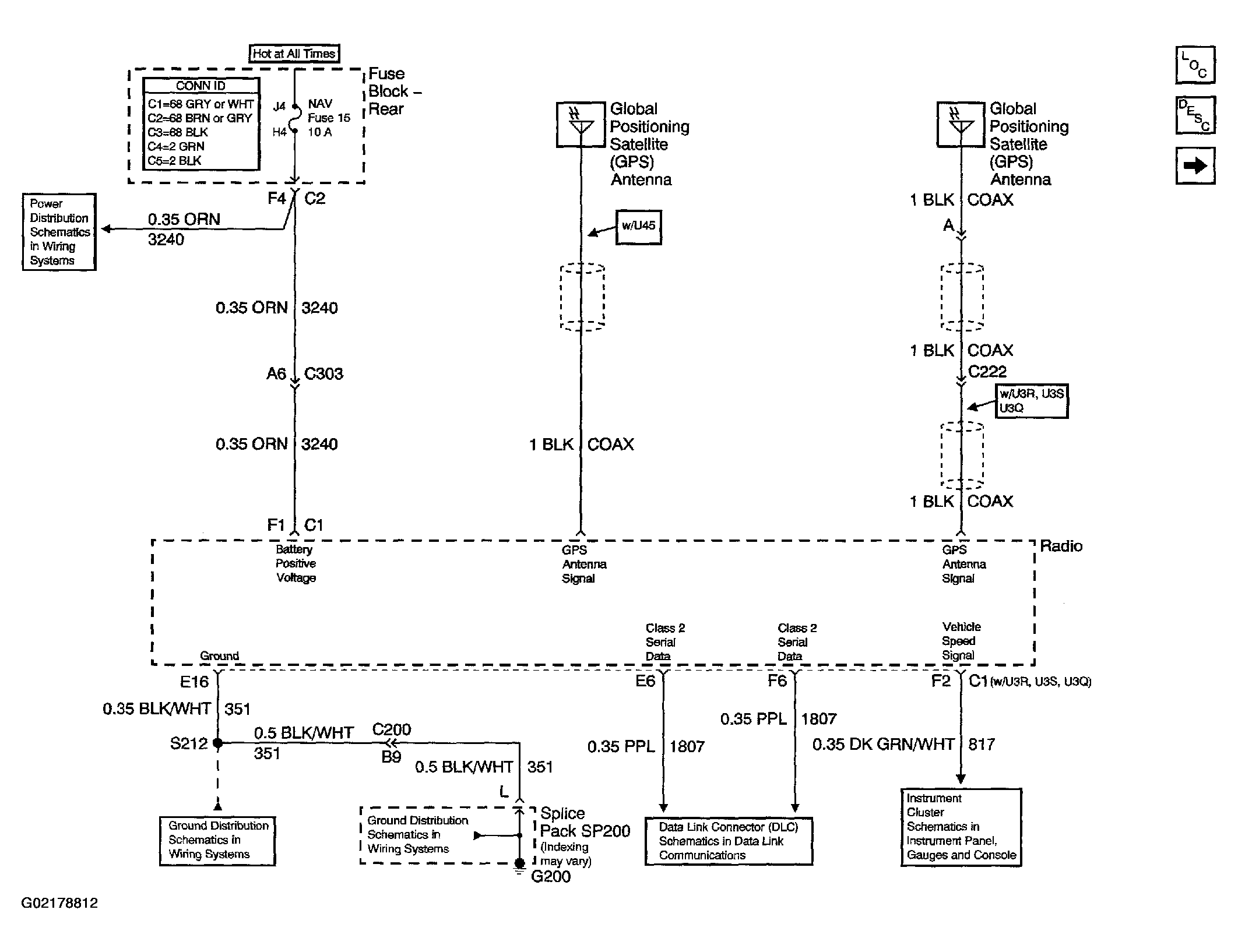

Fig 1: Navigation System Schematic (Power, Ground, Components, & GPS)

Courtesy of GENERAL MOTORS CORP.

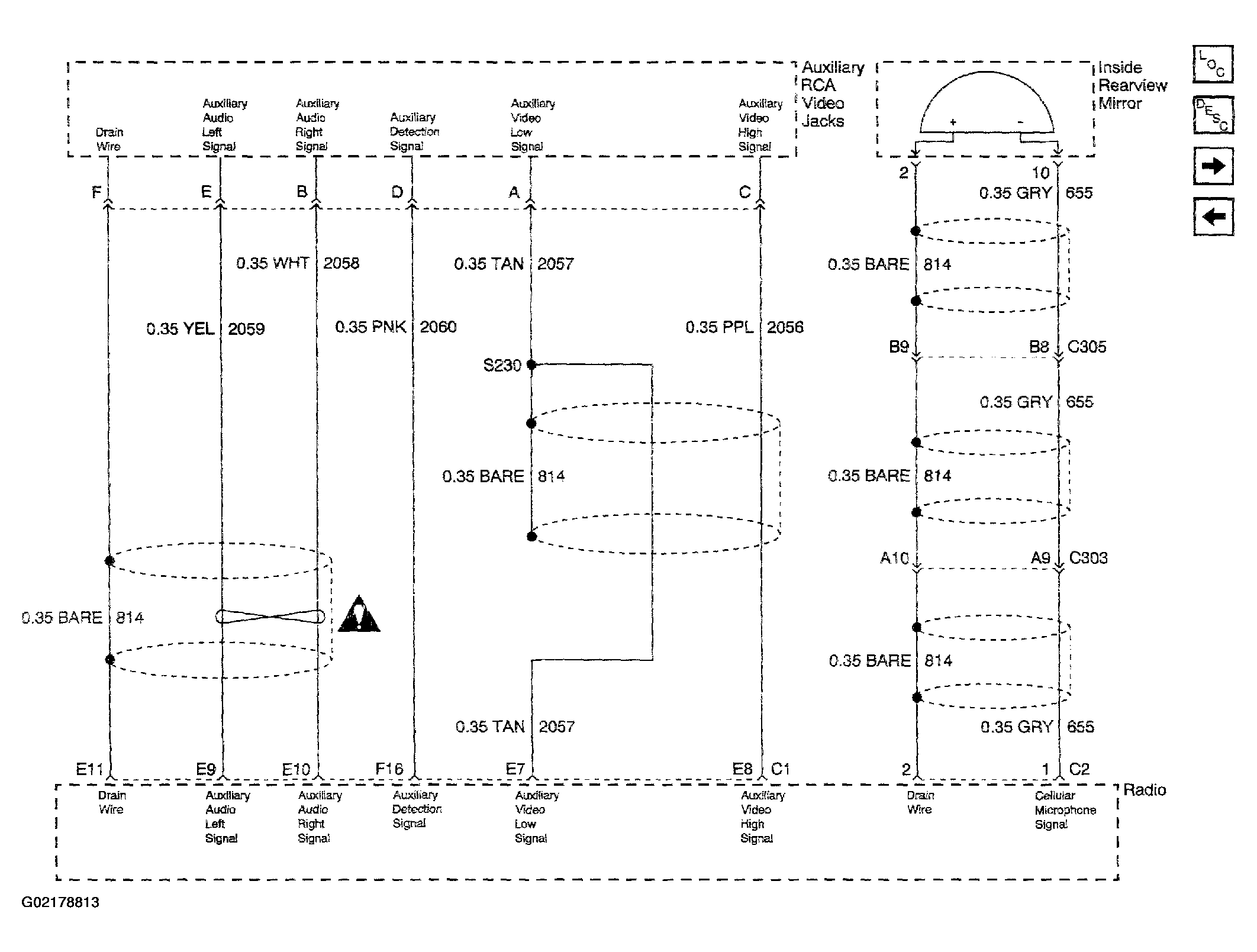

Fig 2: Navigation System Schematic (Auxiliary RCA Video Jacks & Export Microphone)

Courtesy of GENERAL MOTORS CORP.

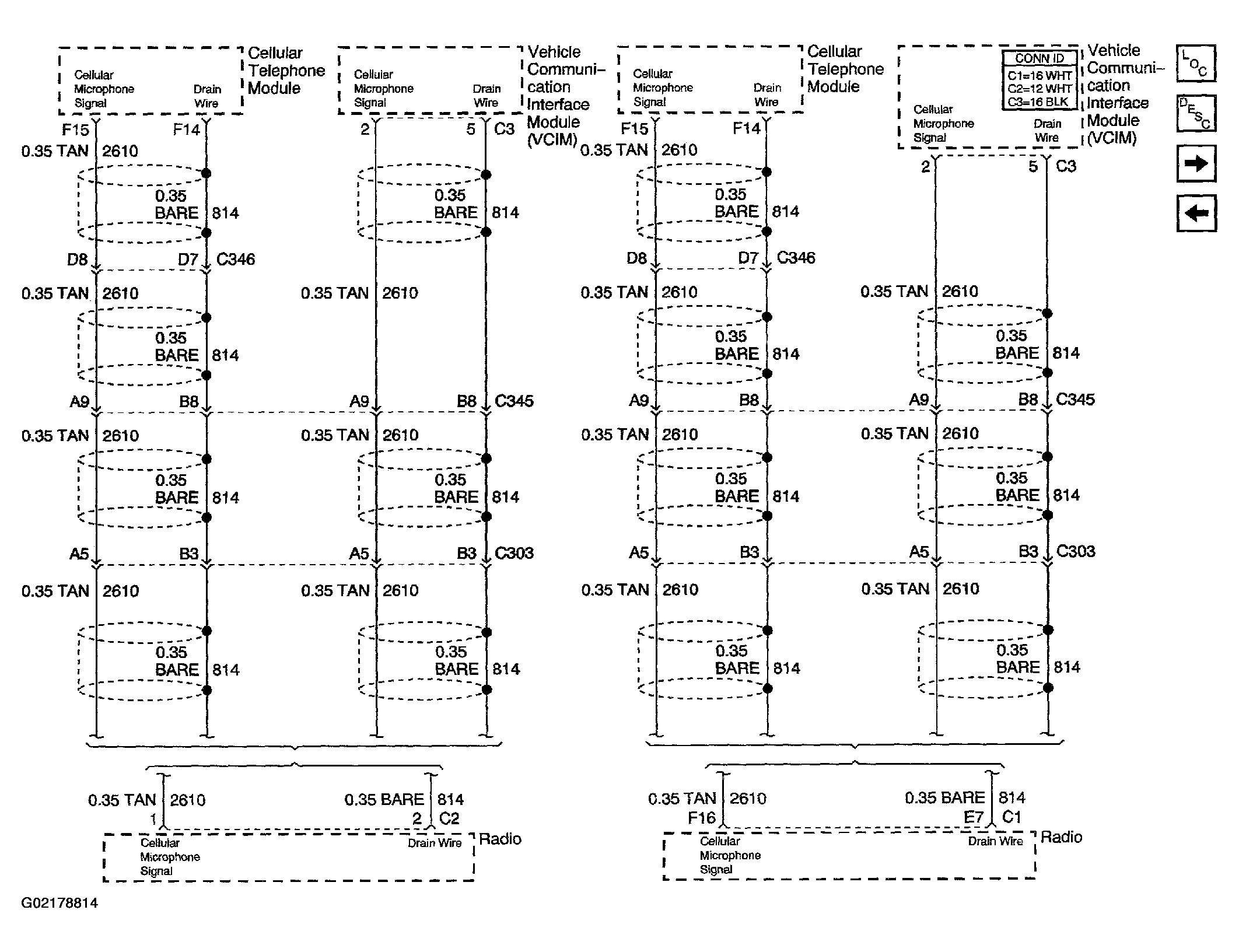

Fig 3: Navigation System Schematic - Domestic Microphone (Early Production)

Courtesy of GENERAL MOTORS CORP.

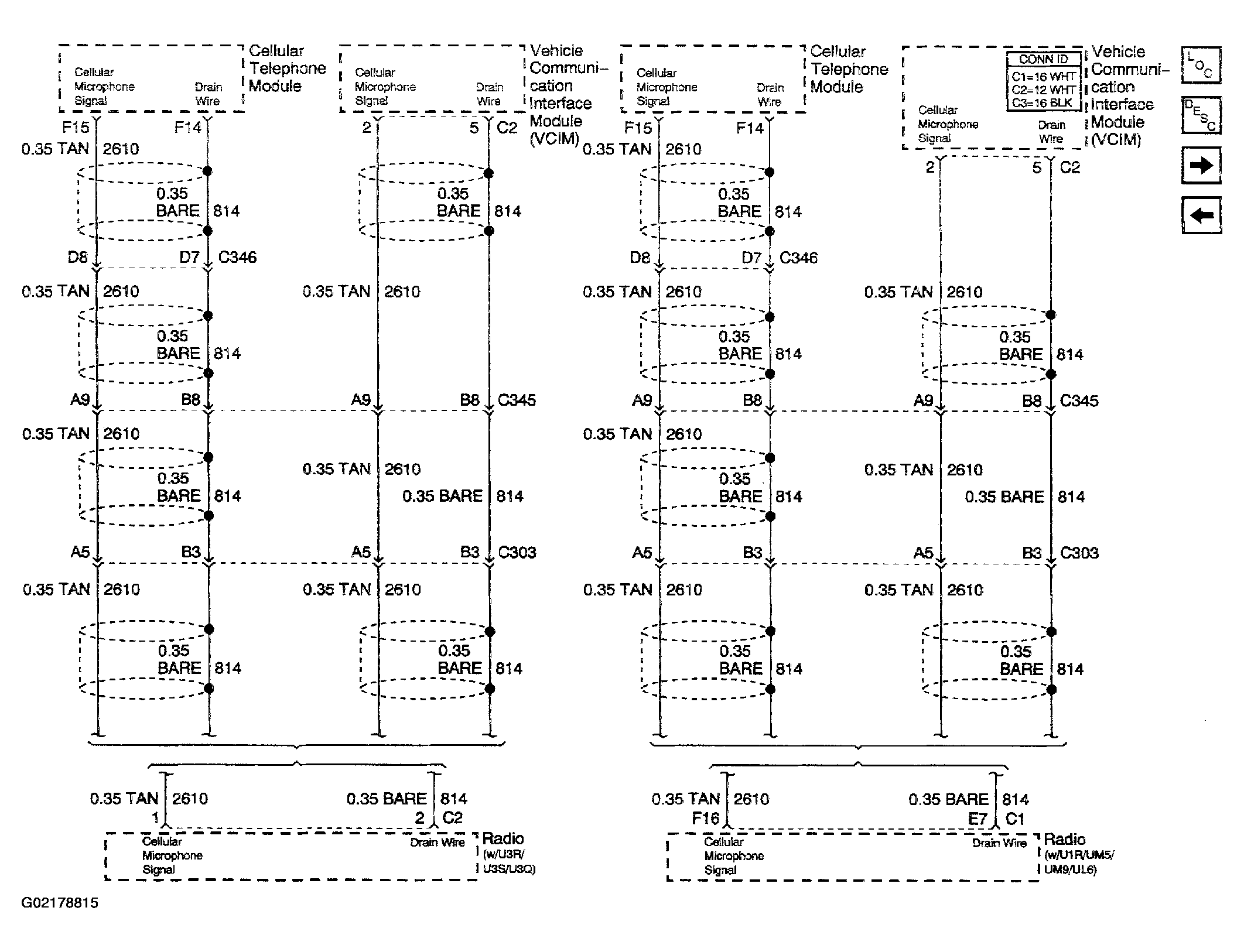

Fig 4: Navigation System Schematic Diagram - Domestic Microphone (Late Production)

Courtesy of GENERAL MOTORS CORP.

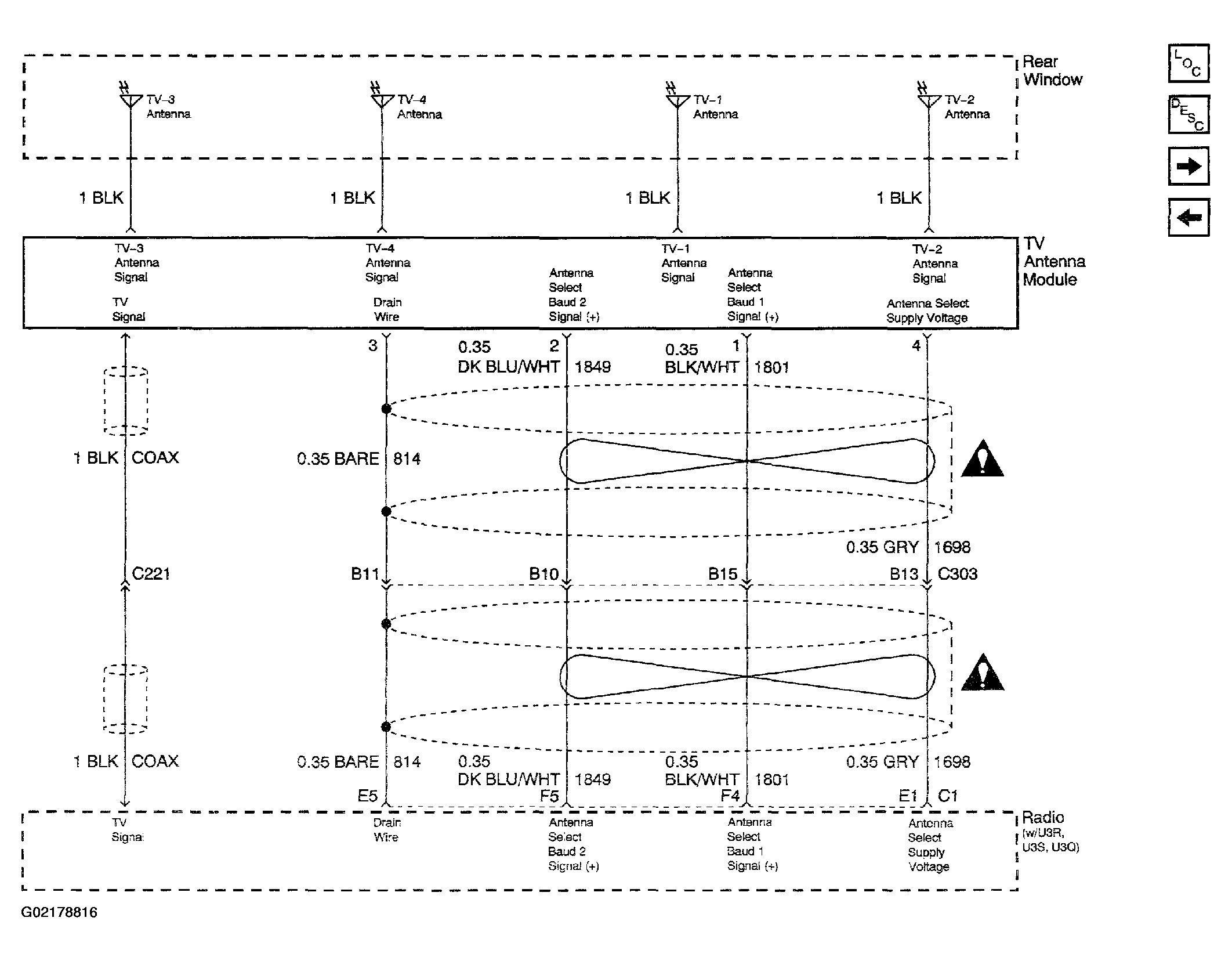

Fig 5: Navigation System Schematic Diagram (TV Antenna Module)

Courtesy of GENERAL MOTORS CORP.

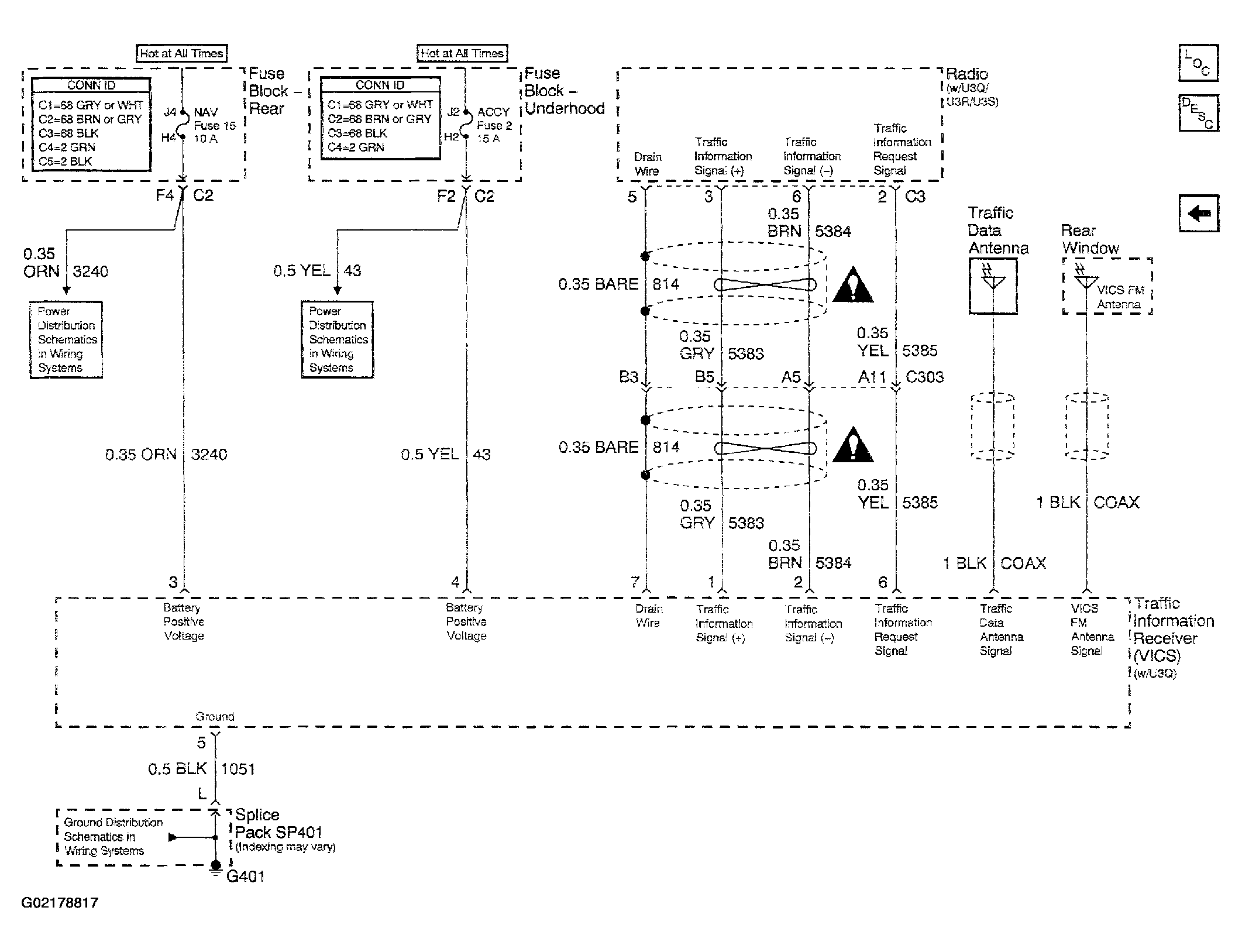

Fig 6: Navigation System Schematic Diagram - Traffic Information Receiver (VICS)

Courtesy of GENERAL MOTORS CORP.
