Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the CD changer bracket to the CD changer with the 6 fasteners.
Tighten

Tighten the fasteners to 2 N.m (18 lb in)

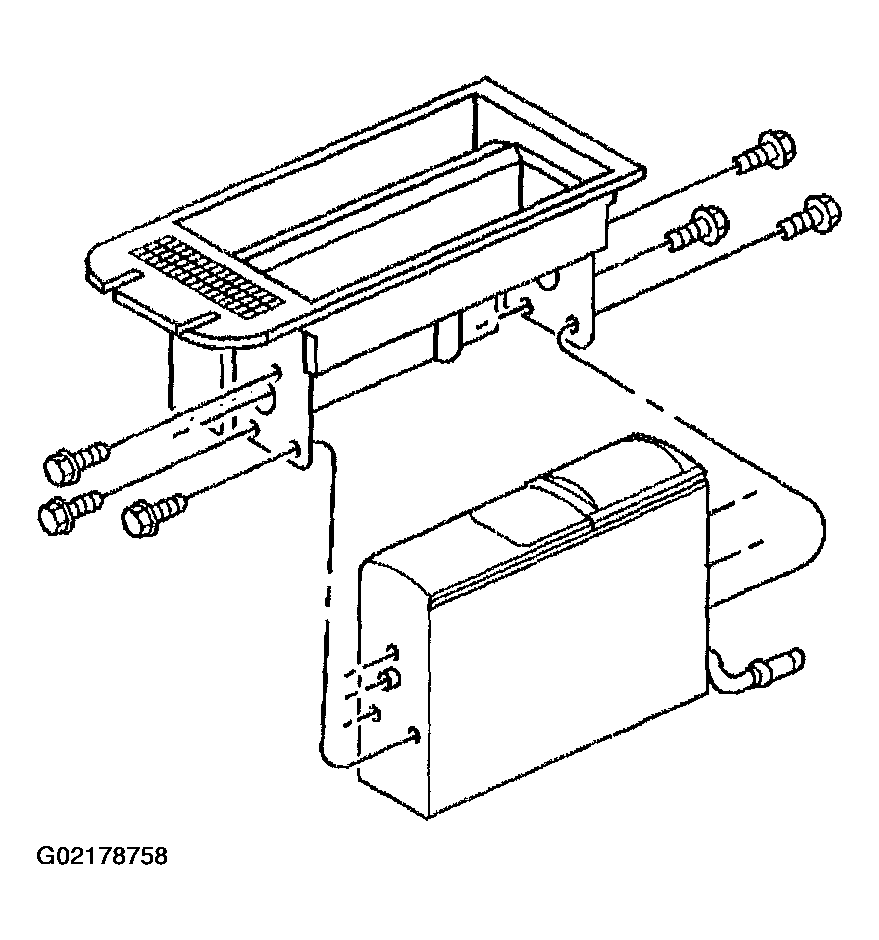

Fig 1: Installing CD Changer Bracket To CD Changer With Fasteners
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connections.
Install the CD changer to the console bin.
Install the 2 fasteners that retain the CD changer to the console.
Tighten

Tighten the fasteners to 2 N.m (18 lb in).

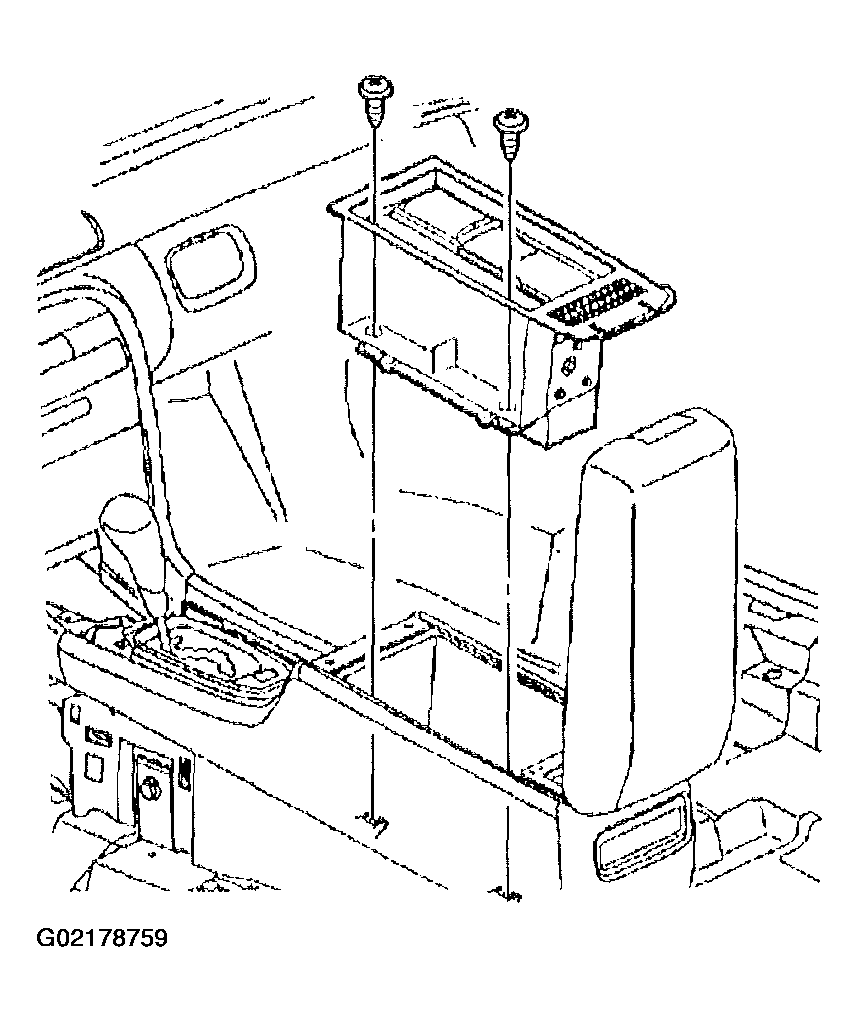

Fig 2: Installing CD Changer To Console Bin
Courtesy of GENERAL MOTORS CORP.
