Installation Procedure

  1. Install the rear object sensor control module assembly to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the rear object sensor control module assembly mounting nuts.

    Tighten

    Tighten the rear object sensor control module assembly mounting nuts to 9 N.m (80 lb in).

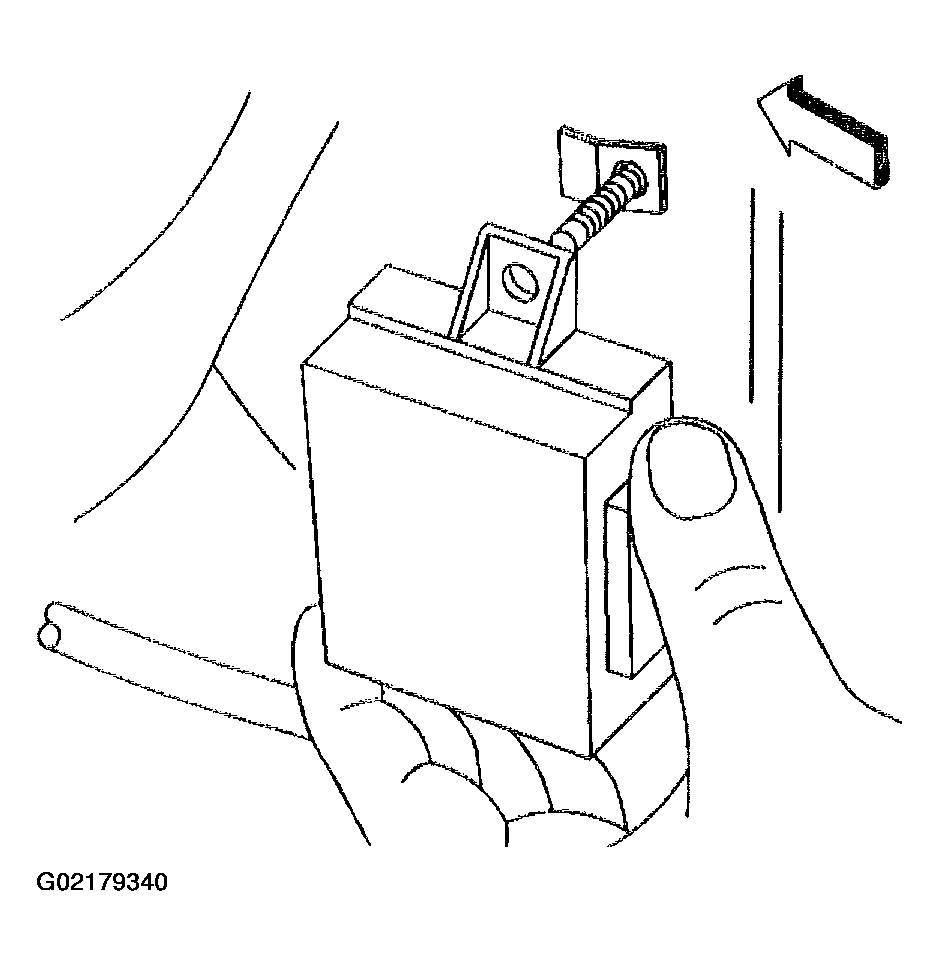

    Fig 1: Installing Rear Object Sensor Control Module Assembly
    G02179340Courtesy of GENERAL MOTORS CORP.
  3. Install the electrical connector. Press in the locking tab.

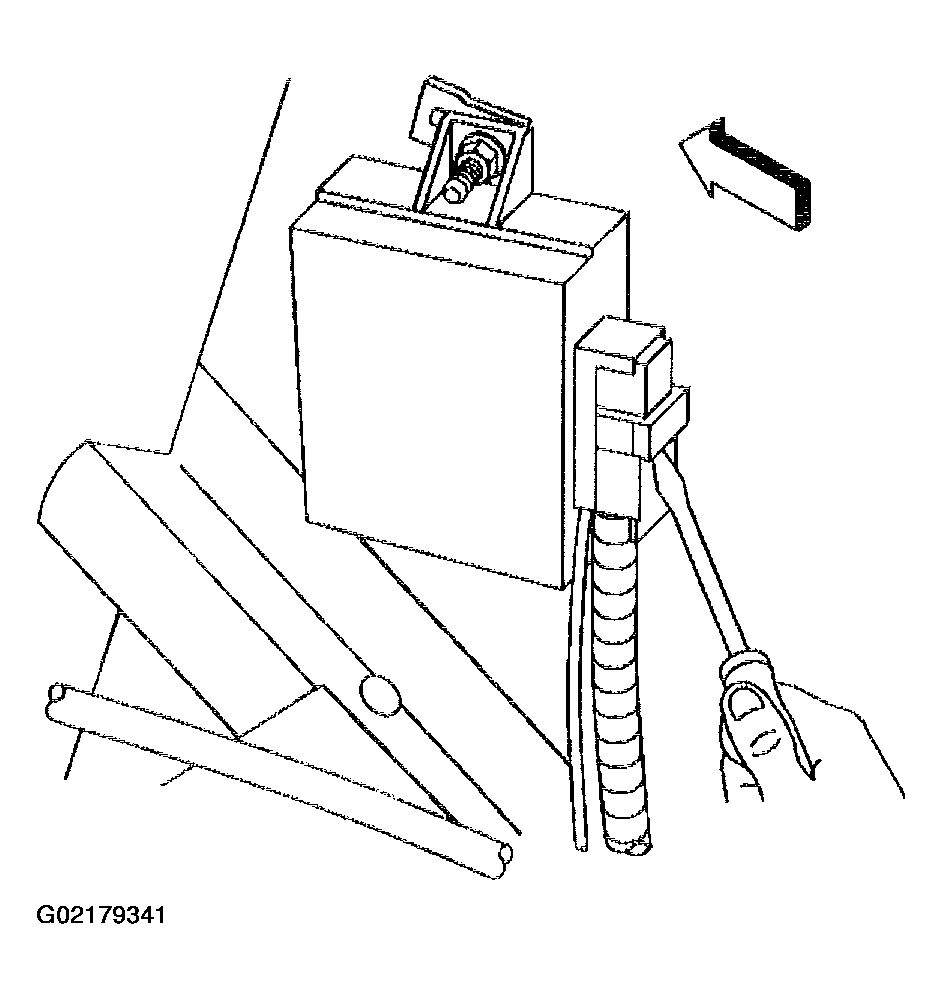

    Fig 2: Locking Connector Using Screwdriver
    G02179341Courtesy of GENERAL MOTORS CORP.
  4. Install the rear compartment side trim. Refer to BODY REAR END  in Body Rear End.
