Removal Procedure

NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE in Cautions and Notices.
  1. Install a drain pan under the vehicle.
  2. Remove the power steering gear outlet hose (3) from the steering gear (2).
  3. Remove the clamp retaining the power steering gear outlet hose (3) to the power steering pump (1).

    Remove the power steering gear outlet hose from the power steering pump.

  4. Remove the power steering gear outlet hose from the vehicle.

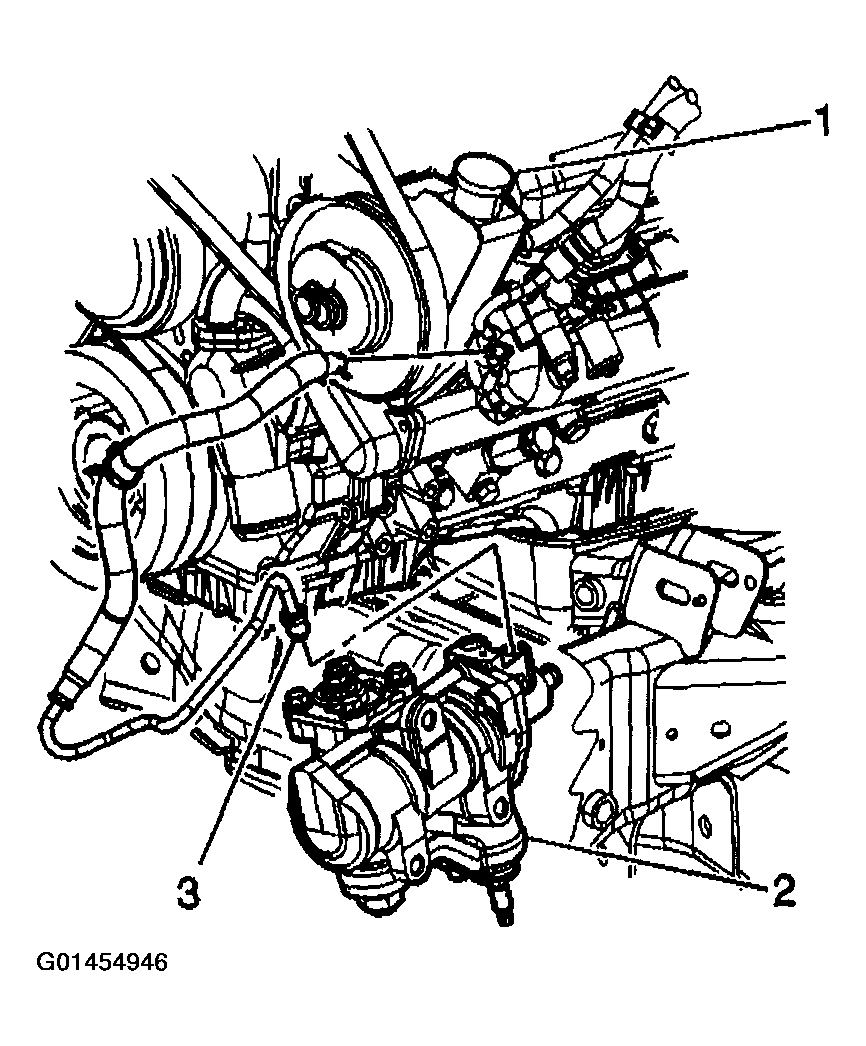

    Fig 1: Removing Power Steering Gear Outlet Hose
    G01454946Courtesy of GENERAL MOTORS CORP.
