Installation Procedure

NOTE: Refer to INSTALLING HOSES WITHOUT TWISTS OR BENDS NOTICE in Cautions and Notices.
  1. Route the hose in the same position the hose occupied prior to removal.
  2. Install the power steering gear inlet hose (1) to the brake booster (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the power steering gear inlet hose to the power steering gear.

    Tighten

    Tighten the power steering gear inlet hose fittings to 28 N.m (20 lb ft).

  4. Remove the drain pan from under the vehicle.
  5. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM  .

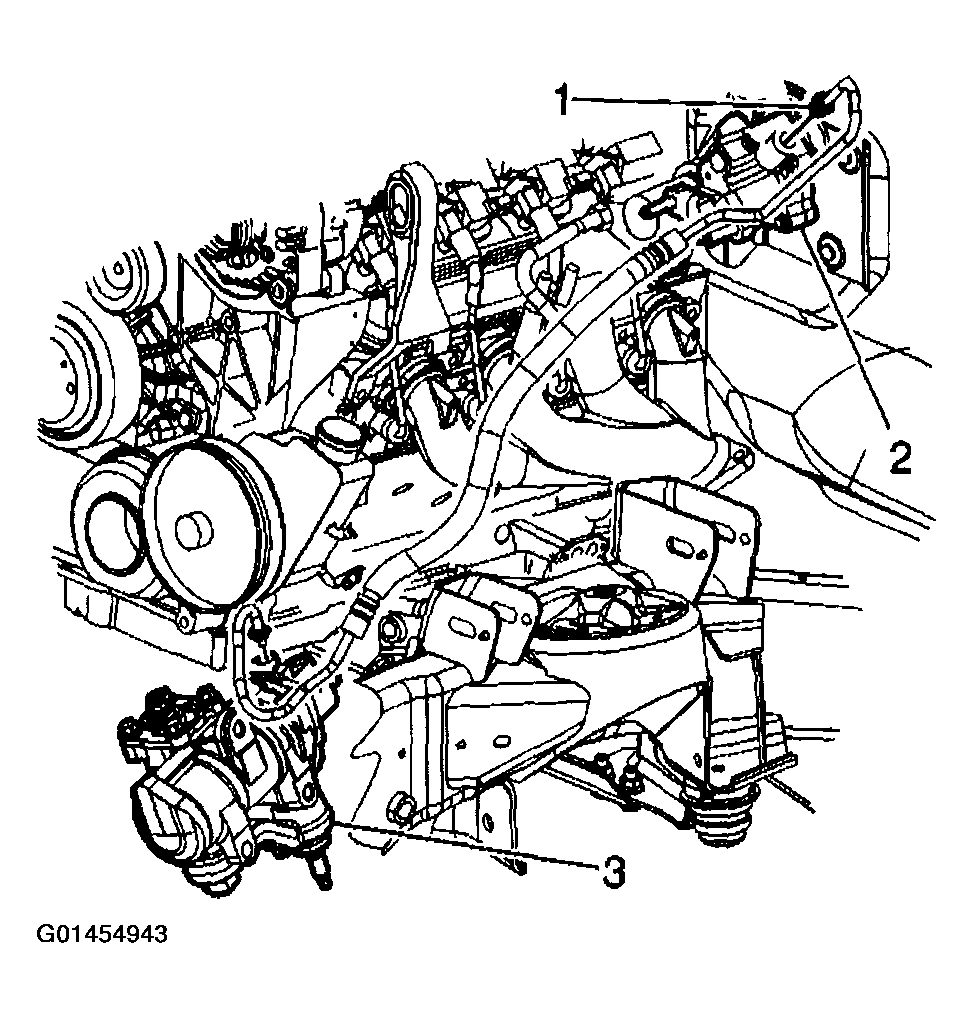

    Fig 1: Installing Power Steering Gear Inlet Hose
    G01454943Courtesy of GENERAL MOTORS CORP.
