Tow/Switch Connector End View, Column Wiring Harness Side

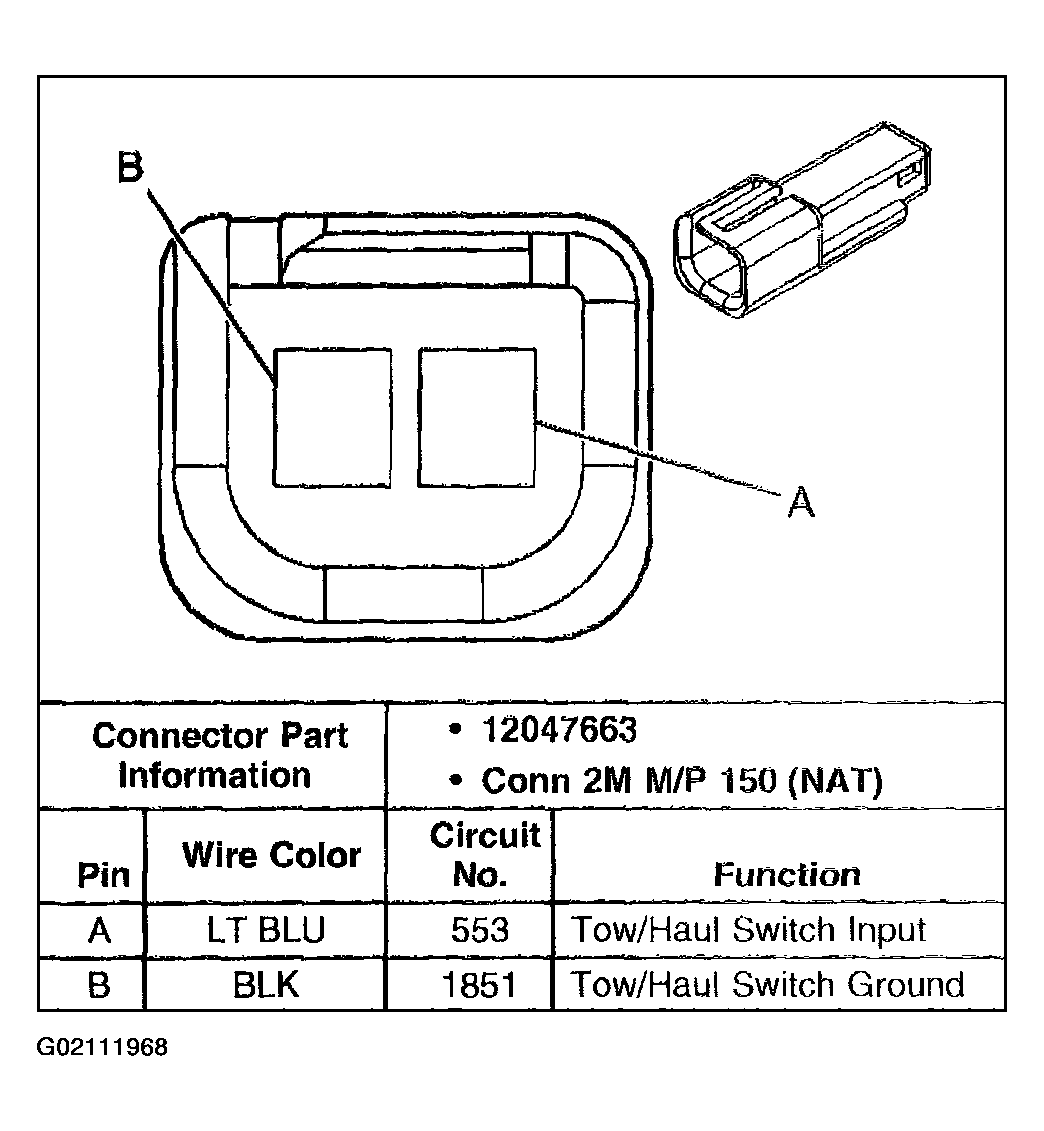

Fig 1: Tow/Switch Connector End View, Column Wiring Harness Side

G02111968

Courtesy of GENERAL MOTORS CORP.
