Auxiliary Temperature Actuator Connector End View

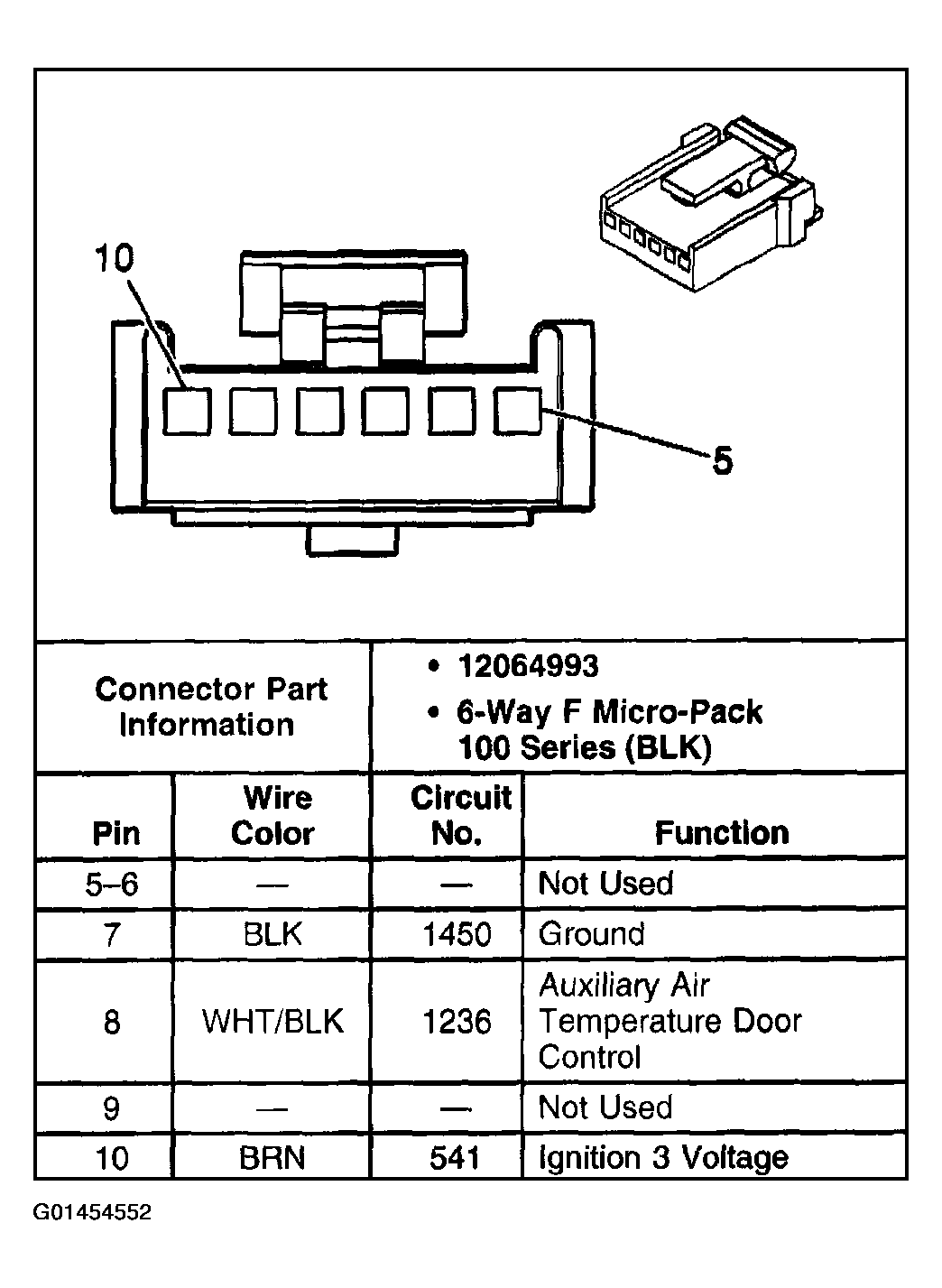

Fig 1: Auxiliary Temperature Actuator Connector End View

G01454552

Courtesy of GENERAL MOTORS CORP.
