Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

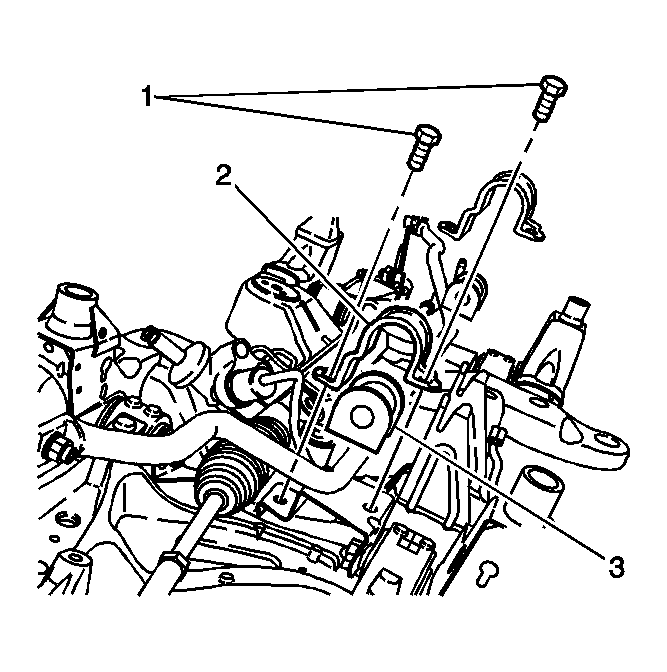

    Fig 1: Installing Stabilizer Shaft Insulators To Stabilizer Shaft
    GM742989Courtesy of GENERAL MOTORS CORP.
  1. Install the stabilizer shaft insulators (3) to the stabilizer shaft. Install the insulator to the stabilizer shaft with the slit facing rearward.
  2. Install the stabilizer shaft to the vehicle.
    3. IMPORTANT: Do not tighten the bolts at this time.
  3. Install the stabilizer shaft brackets (2) and mounting bolts (1).

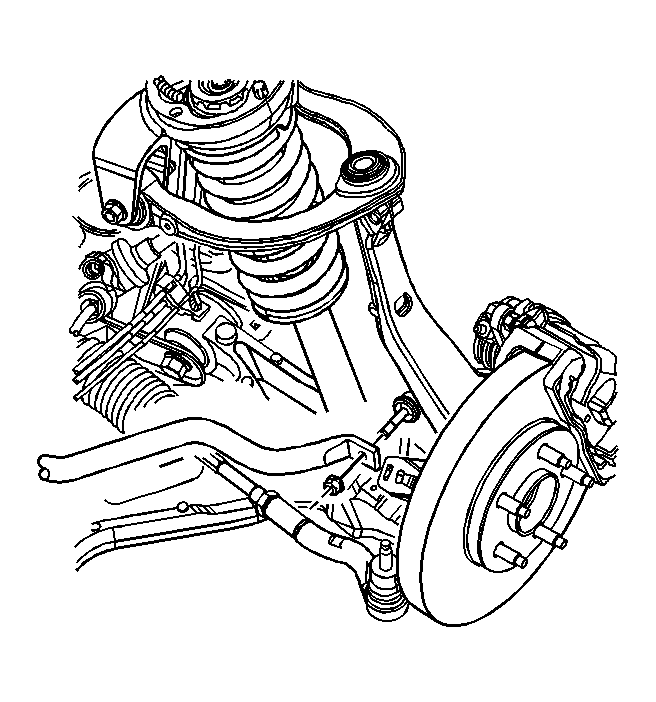

    4. Fig 2: Connecting Stabilizer Shaft Links To Stabilizer Shaft
    GM742983Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Apply threadlocker 242 or equivalent to the threads of the stabilizer shaft link.
  4. Connect the stabilizer shaft links to the stabilizer shaft.
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the stabilizer shaft link retaining nuts.

    Tighten:

    • Tighten the link nuts to 50 N.m (37 lb ft).
    • Tighten the bracket bolts to 60 N.m (44 lb ft).

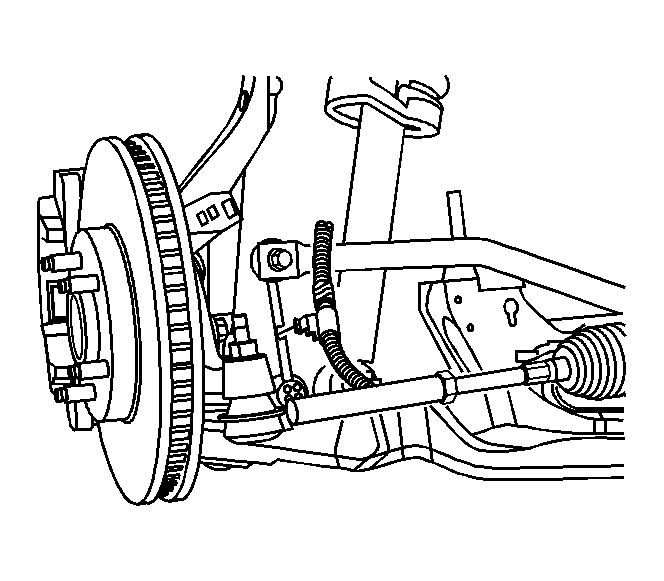

    6. Fig 3: Connecting ABS Sensor Wiring Harness To Stabilizer Links
    GM746681Courtesy of GENERAL MOTORS CORP.
  6. Connect the ABS sensor wiring harness to the stabilizer links.
  7. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  8. Lower the vehicle.
